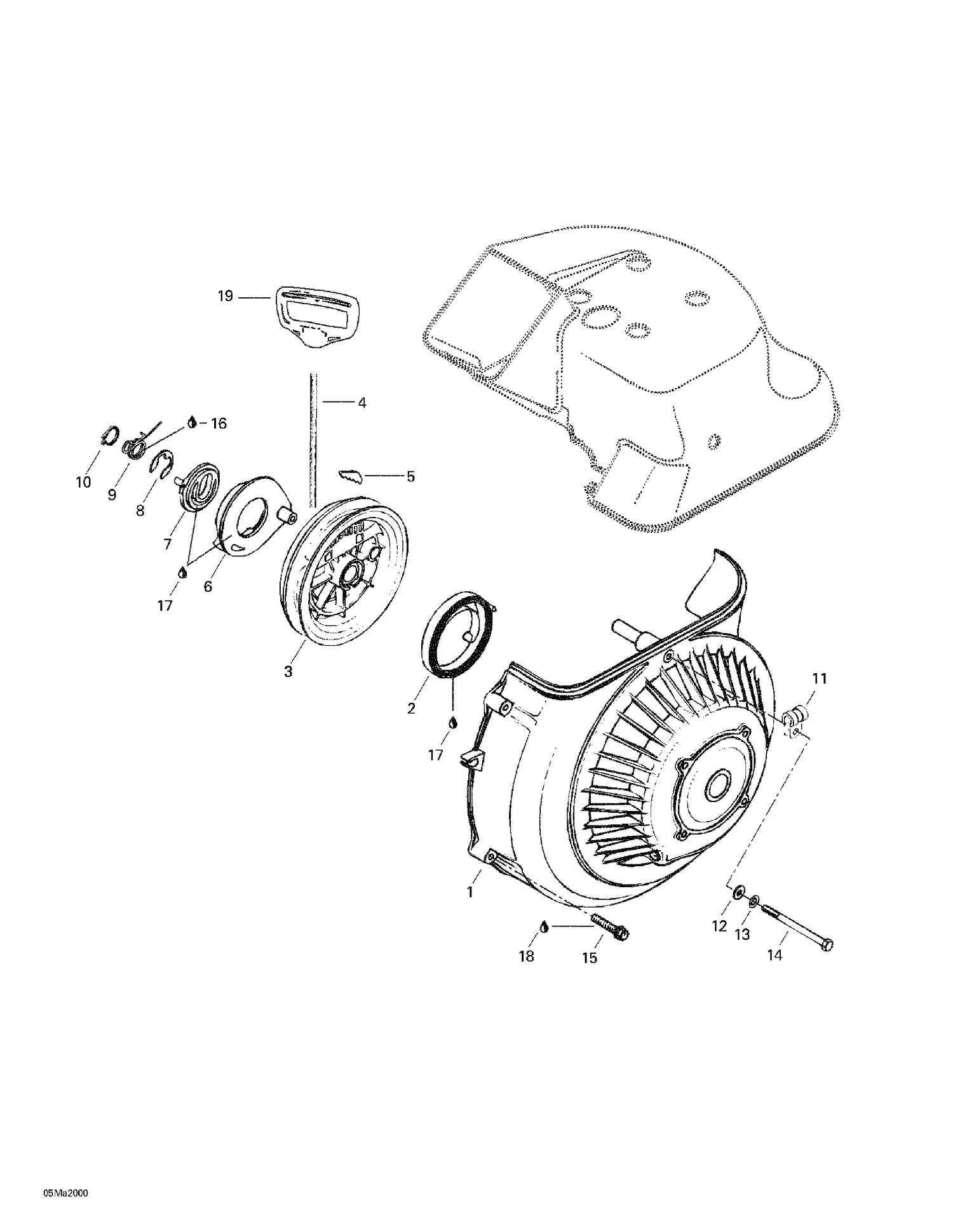

| Ref | Part Number | Description |
|---|
| 1 |
420889823 |
Demar.Rappel *Starter-Rewind This part replaces 420810287. |
| 2 |
420939115 |
Rewind Spring |
| 3 |
420852283 |
Rope Sheave |
| 4 |
219704403 |
Was 412500100 Rope-Starter |
| 5 |
420852070 |
Key Clamp |
| 6 |
420852296 |
Pawl This part replaces 420852293. |
| 7 |
420852301 |
PAWL LOCK - Call your local BRP dealership |
| 8 |
420845300 |
CIRCLIP - Call your local BRP dealership |
| 9 |
420938986 |
Pawl Spring |
| 10 |
420945770 |
LOCK RING - Call your local BRP dealership |
| 11 |
420851240 |
GEAR CLAMP - Call your local BRP dealership |
| 12 |
224061121 |
Flat Washer |
| 13 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 14 |
222067565 |
Hex. Screw M6 x 75 |
| 15 |
420640411 |
TAPPING SCREW M6 X 35 - Call your local BRP dealership |
| 16 |
Not |
Available As Spare Part - Molykote G-n Paste, Dow Corning, |
| 17 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 18 |
293800060 |
Loctite 243, 10 ml |
