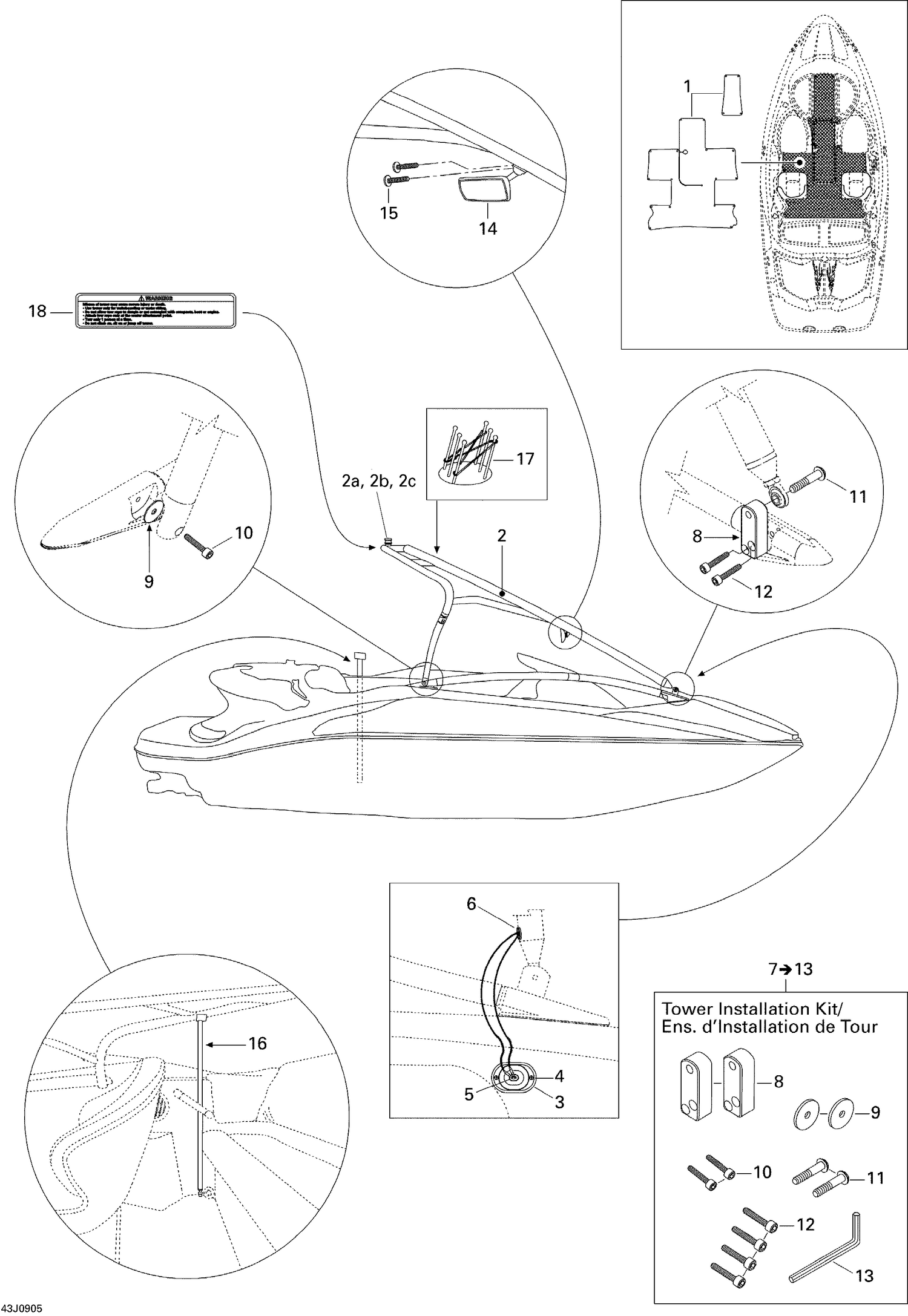

| Ref | Part Number | Description |
|---|
| 1 |
204950106 |
COCKPIT CARPET - Call your local BRP dealership |
| 2 |
204950120 |
TOWER ASS'Y - Call your local BRP dealership |
| 2a |
295501114 |
NYLON SWIVEL FOR TOWER 204950120 - Call your local BRP dealership |
| 2b |
295501115 |
BOLT FOR TOWER 204950120 - Call your local BRP dealership |
| 2c |
295501116 |
SKI TOW CAP FOR TOWER 204950120 - Call your local BRP dealership |
| 3 |
204950109 |
RECESS CABLE CUP - Call your local BRP dealership |
| 4 |
250000092 |
Phillips Tapping Screw 3.5 X 19 |
| 5 |
204072418 |
Grommet |
| 6 |
204072437 |
Grommet |
| 8 |
Not |
Available As Spare Part - Front Insert |
| 9 |
204100158 |
Washer, Nylon |
| 10 |
204100094 |
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - Socket Head Screw 1/2" X 13 X 1-1/2" |
| 12 |
Not |
Available As Spare Part - Socket Head Screw 3/8"-16 X 1-1/4" |
| 13 |
Not |
Available As Spare Part - Allen Wrench 5/16" |
| 14 |
295100386 |
SKI MIRROR - Call your local BRP dealership This part replaces 204071420. |
| 15 |
204100129 |
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership |
| 16 |
204072003 |
TOWER SUPPORT - Call your local BRP dealership |
| 17 |
204950147 |
WAKEBOARD RACK - Call your local BRP dealership |
