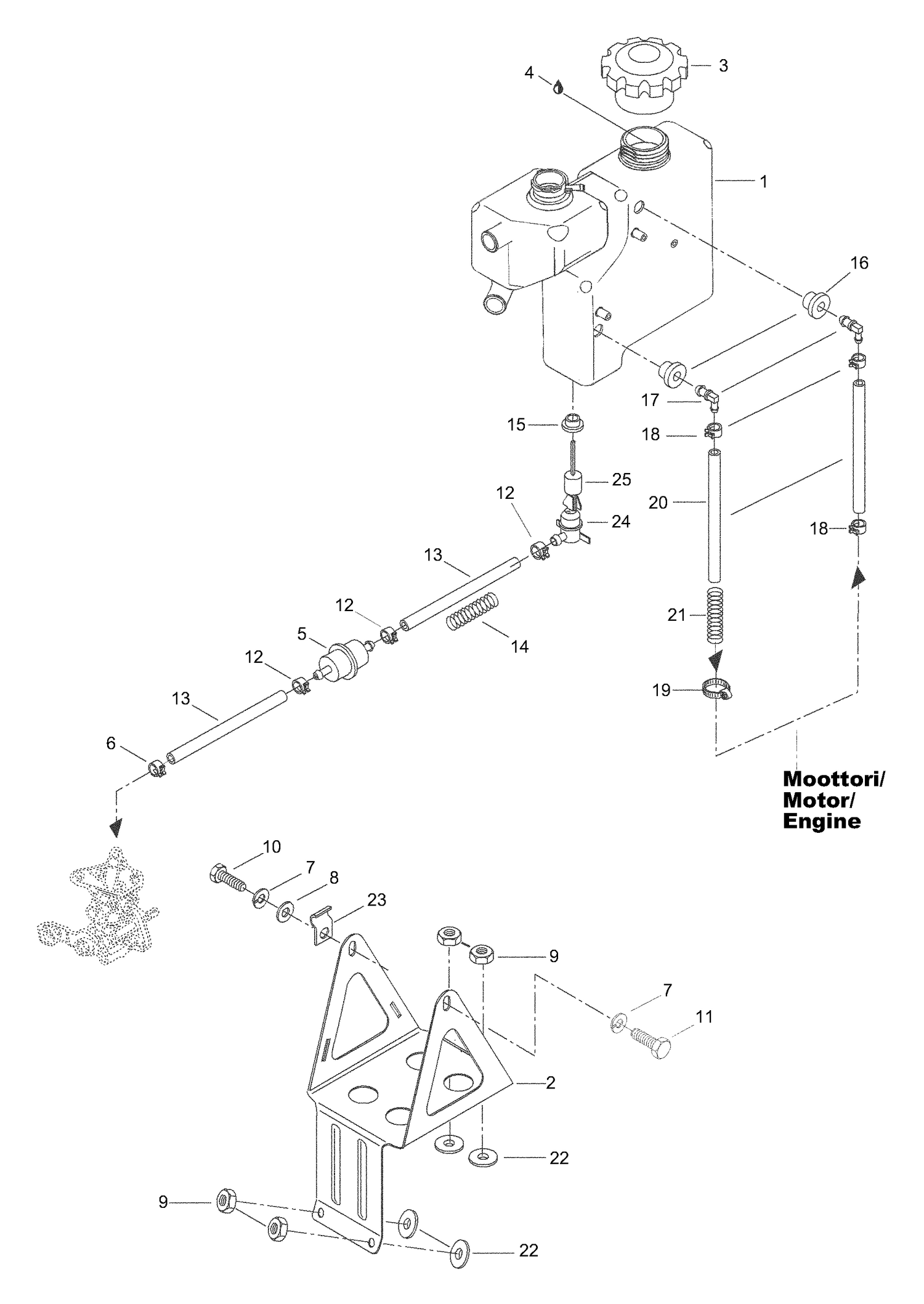

01- Oil Tank
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000014 | Coolant tank |
| 2 | 517301100 | Oil tank support |
| 3 | 519000044 | CAP - Call your local BRP dealership This part replaces 572071000. |
| 4 | 1471499 | Oil (4 x 4 l) |
| 4 | 1471599 | Oil (20 x 1 l) |
| 5 | 414536500 | Oil filter |
| 6 | 414420700 | Universal Spring Clamp |
| 7 | 20052 | Spring washer |
| 8 | 224061121 | Flat Washer |
| 9 | 33010 | Lock Nut M6 (1=10Pcs) |
| 10 | 40115 | Screw M6x12 |
| 11 | 40114 | Screw M6x10 |
| 12 | 27119F | Clamp |
| 13 | 39046 | Hose 11/8 |
| 14 | 414940300 | SPRING_COMPRESSION - Call your local BRP dealership |
| 15 | 570023000 | Grommet |
| 16 | 707800347 | Grommet This part replaces 570273900. |
| 17 | 414523600 | Fitting-elbow |
| 18 | 414655700 | Clamp |
| 19 | 408801100 | SPRING CLIP - Call your local BRP dealership |
| 20 | 39052 | Hose 10.5/13.5 |
| 21 | 415044100 | Spring |
| 22 | 414454400 | Rubber washer |
| 23 | 415018200 | CLIP - Call your local BRP dealership |
| 24 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
