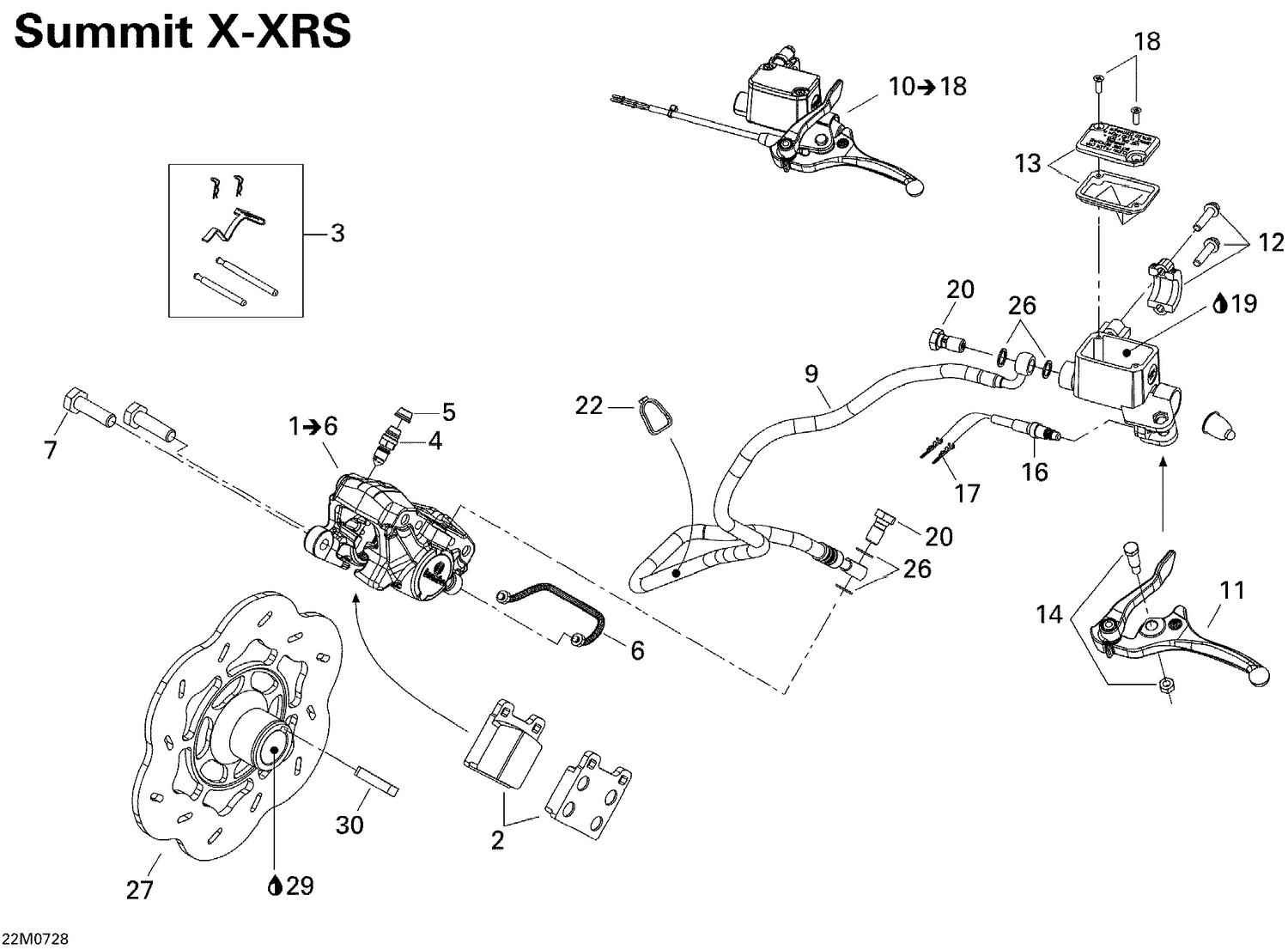

| Ref | Part Number | Description |
|---|
| 2 |
415084600 |
Brake Pad Kit |
| 3 |
415128865 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 5 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 6 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
| 7 |
205503544 |
Socket Head Screw M10 X 35, Scotch Grip |
| 9 |
507032397 |
HOSE - Call your local BRP dealership |
| 11 |
415129216 |
LEVER - Call your local BRP dealership |
| 12 |
507032477 |
Clamp And Screw Kit This part replaces 415029800. |
| 13 |
415029900 |
Cap |
| 14 |
415030000 |
Pin Ass'y |
| 16 |
507032366 |
Microswitch |
| 17 |
515175232 |
Male Terminal |
| 18 |
216141260 |
SCREW M4 X 12 - Call your local BRP dealership |
| 19 |
293600063 |
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership |
| 20 |
414920500 |
Banjo Bolt |
| 22 |
293750002 |
Tie Wrap 142 mm |
| 26 |
414920600 |
Washer |
| 27 |
507032395 |
BRAKE DISK - Call your local BRP dealership |
| 29 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
