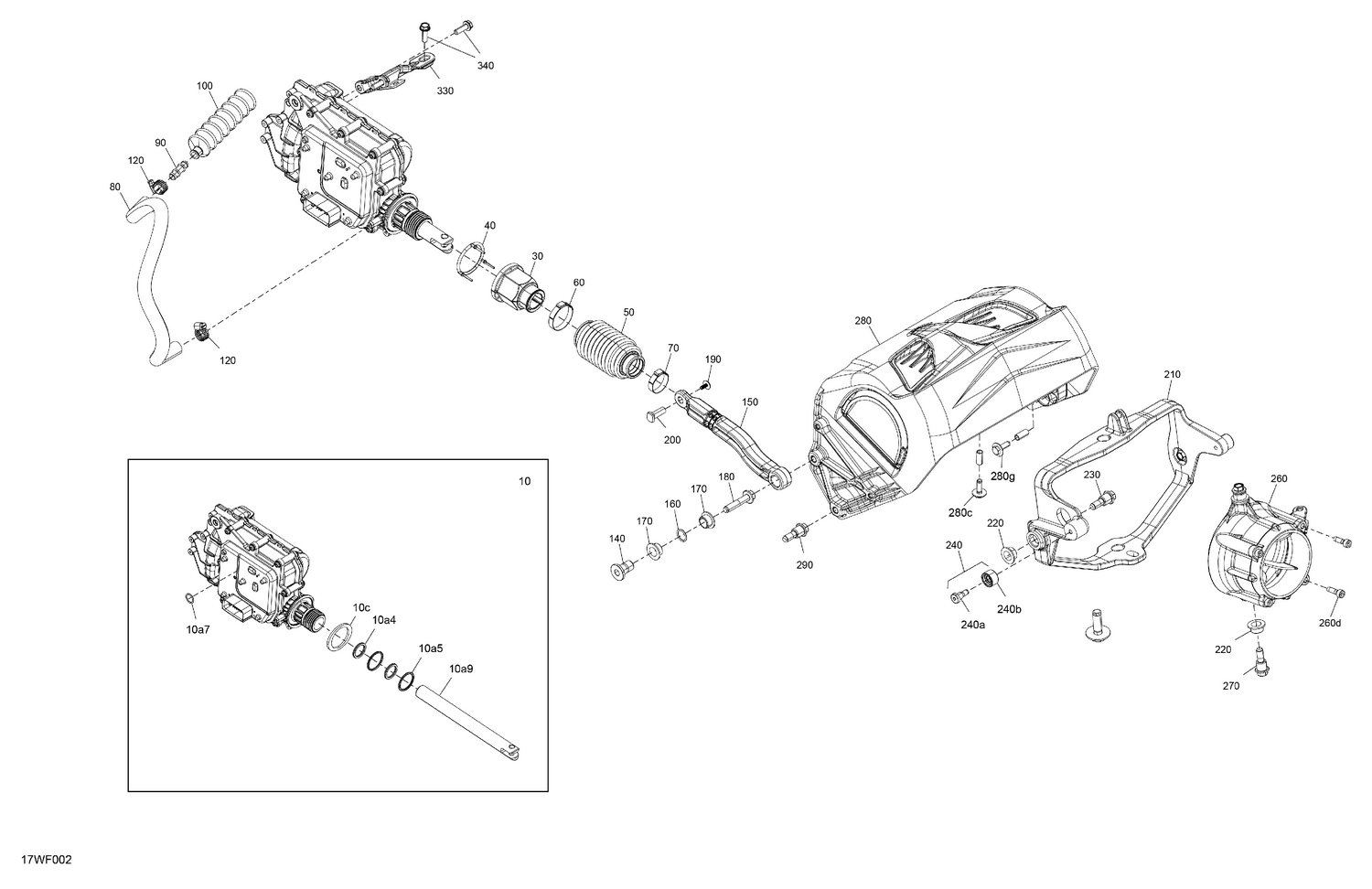

04- DRIVE - Reverse
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10a4 | 279000108 | O-Ring |
| 10a5 | 293300107 | O-Ring |
| 10a7 | 293300187 | O-Ring |
| 10a9 | 278003027 | Output Shaft |
| 10c | 268000208 | Gasket |
| 30 | 268000308 | IBR Nut |
| 40 | 277001977 | Rubber Gasket |
| 50 | 268000338 | Boot |
| 60 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 70 | 293650099 | Crimp Clamp |
| 80 | 219704420 | Was 509000407 Hose 8 mm This part replaces 268000279. |
| 90 | 293710157 | Fitting-Straig |
| 100 | 268000211 | Inner Boot This part replaces 268000345. |
| 120 | 293650285 | Clamp Gear |
| 140 | 268000269 | Bushing |
| 150 | 268000292 | Linkage Arm Anodised |
| 160 | 293300187 | O-Ring |
| 170 | 293900007 | Venturi Bushing |
| 180 | 250000963 | Hex. Flange Screw Din.6921 S.Grip |
| 190 | 250000565 | Hexalob Screw M4 X 10 |
| 200 | 268000309 | Shoulder Pin |
| 210 | 268000318 | Anodised Trimming Ring |
| 220 | 293900007 | Venturi Bushing |
| 230 | 250000927 | Hex. Flange Screw S.Grip M8 X 18 |
| 240a | 250000775 | Screw-Socket Shoulder M8X8 |
| 240b | 295501160 | Roller Bushing Kit |
| 260d | 205562060 | Socket Head Screw M6 X 20, Scotch Grip |
| 270 | 250000927 | Hex. Flange Screw S.Grip M8 X 18 |
| 280c | 250000965 | Hex Screw M6 X 20 |
| 280g | 250000965 | Hex Screw M6 X 20 |
| 290 | 250000927 | Hex. Flange Screw S.Grip M8 X 18 |
| 330 | 268000307 | Actuator Brace |
