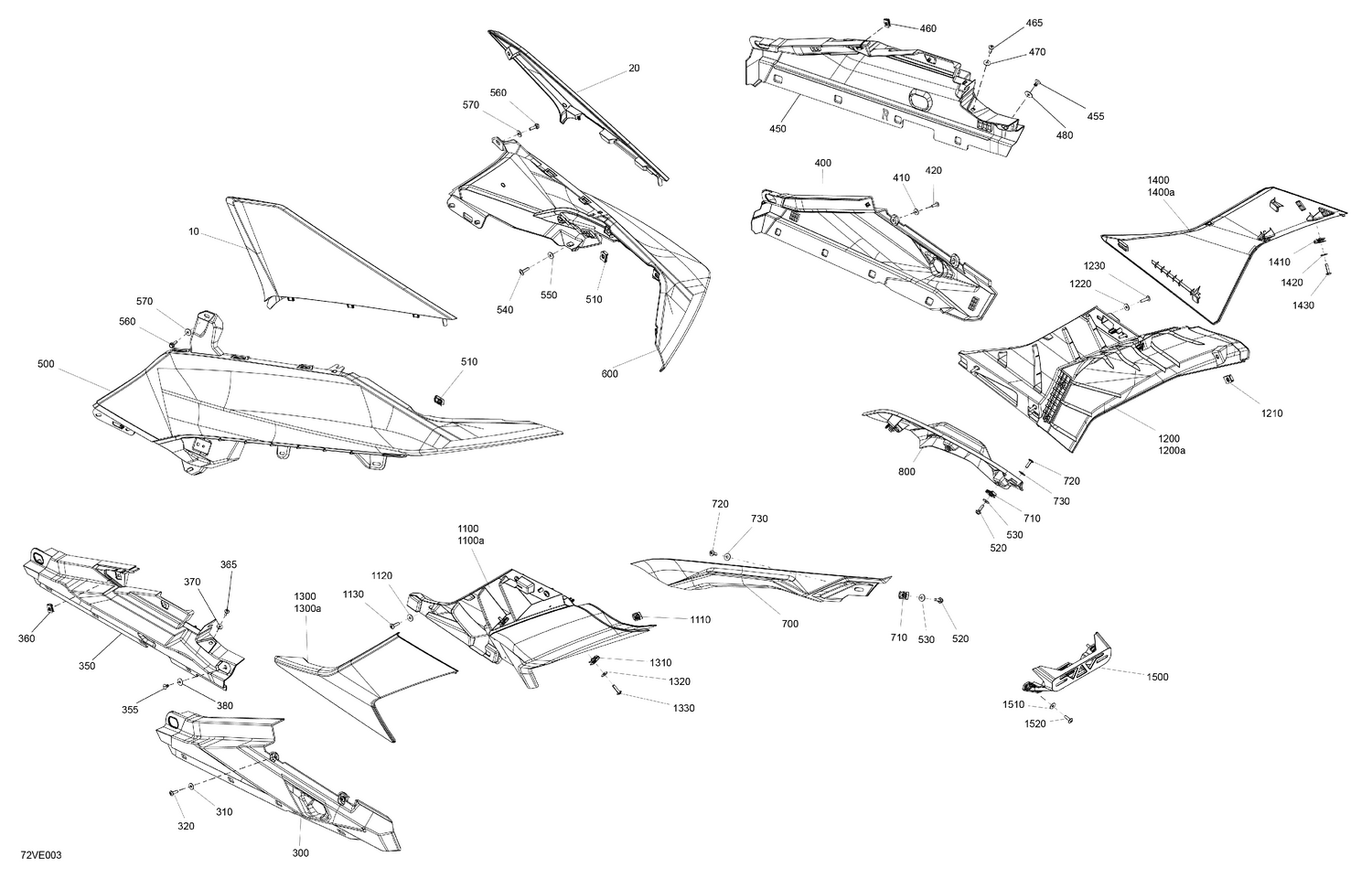

07- Body - Rear Section
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708303784 | Deep Black, LH Exterior Body Panel |
| 20 | 708303785 | Deep Black, RH Exterior Body Panel |
| 300 | 705016451 | LH Rear Rocker Panel |
| 310 | 234062670 | Stainless Steel Flat Washer |
| 320 | 250000722 | Torx Screw M6 X 20 |
| 350 | 705017480 | LH Rocker Panel |
| 355 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 360 | 250100208 | Panel Nut M6 X 1.0 |
| 365 | 250000722 | Torx Screw M6 X 20 |
| 370 | 234062670 | Stainless Steel Flat Washer |
| 380 | 250200162 | Flat Washer M6.6 X 22 |
| 400 | 705016452 | RH Rear Rocker Panel |
| 410 | 234062670 | Stainless Steel Flat Washer |
| 420 | 250000722 | Torx Screw M6 X 20 |
| 450 | 705017481 | RH Rocker Panel |
| 455 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 460 | 250100208 | Panel Nut M6 X 1.0 |
| 465 | 250000722 | Torx Screw M6 X 20 |
| 470 | 234062670 | Stainless Steel Flat Washer |
| 480 | 250200162 | Flat Washer M6.6 X 22 |
| 500 | 708304310 | Carbon Black, LH Rear Fender |
| 510 | 250100208 | Panel Nut M6 X 1.0 |
| 520 | 207662054 | Hex. Flange Screw M6 X 20 |
| 530 | 234062670 | Stainless Steel Flat Washer |
| 540 | 250000807 | Torx Truss Screw M6 X 25 |
| 550 | 234062670 | Stainless Steel Flat Washer |
| 560 | 207662054 | Hex. Flange Screw M6 X 20 |
| 570 | 234062670 | Stainless Steel Flat Washer |
| 600 | 708304311 | Carbon Black, RH Rear Fender |
| 700 | 705015534 | LH Rear Mud Guard |
| 710 | 250100208 | Panel Nut M6 X 1.0 |
| 720 | 250000722 | Torx Screw M6 X 20 |
| 730 | 234062670 | Stainless Steel Flat Washer |
| 800 | 705015535 | RH Rear Mud Guard |
| 1100a | 705016469 | LH Rear Mud Guard |
| 1110 | 250100208 | Panel Nut M6 X 1.0 |
| 1120 | 234062670 | Stainless Steel Flat Washer |
| 1130 | 250000807 | Torx Truss Screw M6 X 25 |
| 1200a | 705016470 | RH Rear Mud Guard |
| 1210 | 250100208 | Panel Nut M6 X 1.0 |
| 1220 | 234062670 | Stainless Steel Flat Washer |
| 1230 | 250000807 | Torx Truss Screw M6 X 25 |
| 1300a | 705015540 | LH Lower Molded Body Panel |
| 1310 | 250100208 | Panel Nut M6 X 1.0 |
| 1320 | 234062670 | Stainless Steel Flat Washer |
| 1330 | 250000807 | Torx Truss Screw M6 X 25 |
| 1400a | 705015541 | RH Lower Molded Body Panel |
| 1410 | 250100208 | Panel Nut M6 X 1.0 |
| 1420 | 234062670 | Stainless Steel Flat Washer |
| 1430 | 250000807 | Torx Truss Screw M6 X 25 |
| 1500 | 705017197 | License Plate Support |
| 1510 | 234062670 | Stainless Steel Flat Washer |
