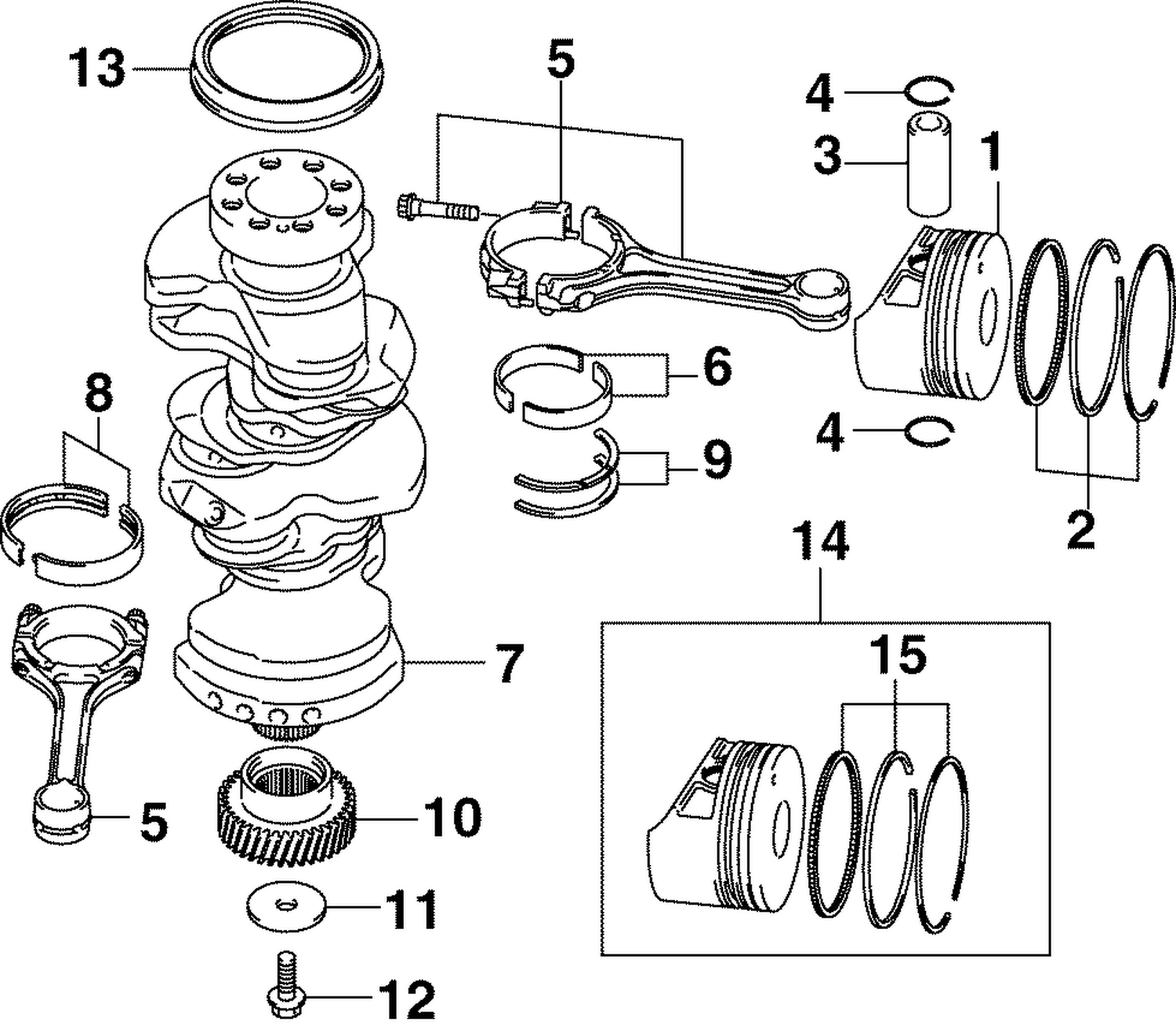

| Ref | Part Number | Description |
|---|
| 2 |
5034894 |
RING SET, Piston |
| 3 |
5034896 |
PIN, PISTON |
| 4 |
5034840 |
CIRCLIP |
| 6 |
5034887 |
BRG SET, Connecting rod |
| 7 |
5034898 |
CRANKSHAFT |
| 8 |
5035380 |
BRG SET, Crankshaft (BLACK) |
| 8 |
5035381 |
BRG SET, Crankshaft (NON) |
| 8 |
5035382 |
BRG SET, Crankshaft (YELLOW) |
| 8 |
5035383 |
BRG SET, Crankshaft (BLUE) |
| 8 |
5035384 |
BRG SET, Crankshaft (PINK) |
| 9 |
5033872 |
BEARING SET, CRANK THRUST |
| 9 |
5033873 |
BEARING SET, CRANK THRUST |
| 10 |
5034899 |
GEAR, Drive |
| 11 |
5035248 |
WASHER, Drive gear |
| 12 |
5035639 |
BOLT, Drive gear |
| 13 |
5034833 |
SEAL, OIL |
| 14 |
5034892 |
PISTON SET (Optional-OS:0.50mm) |
