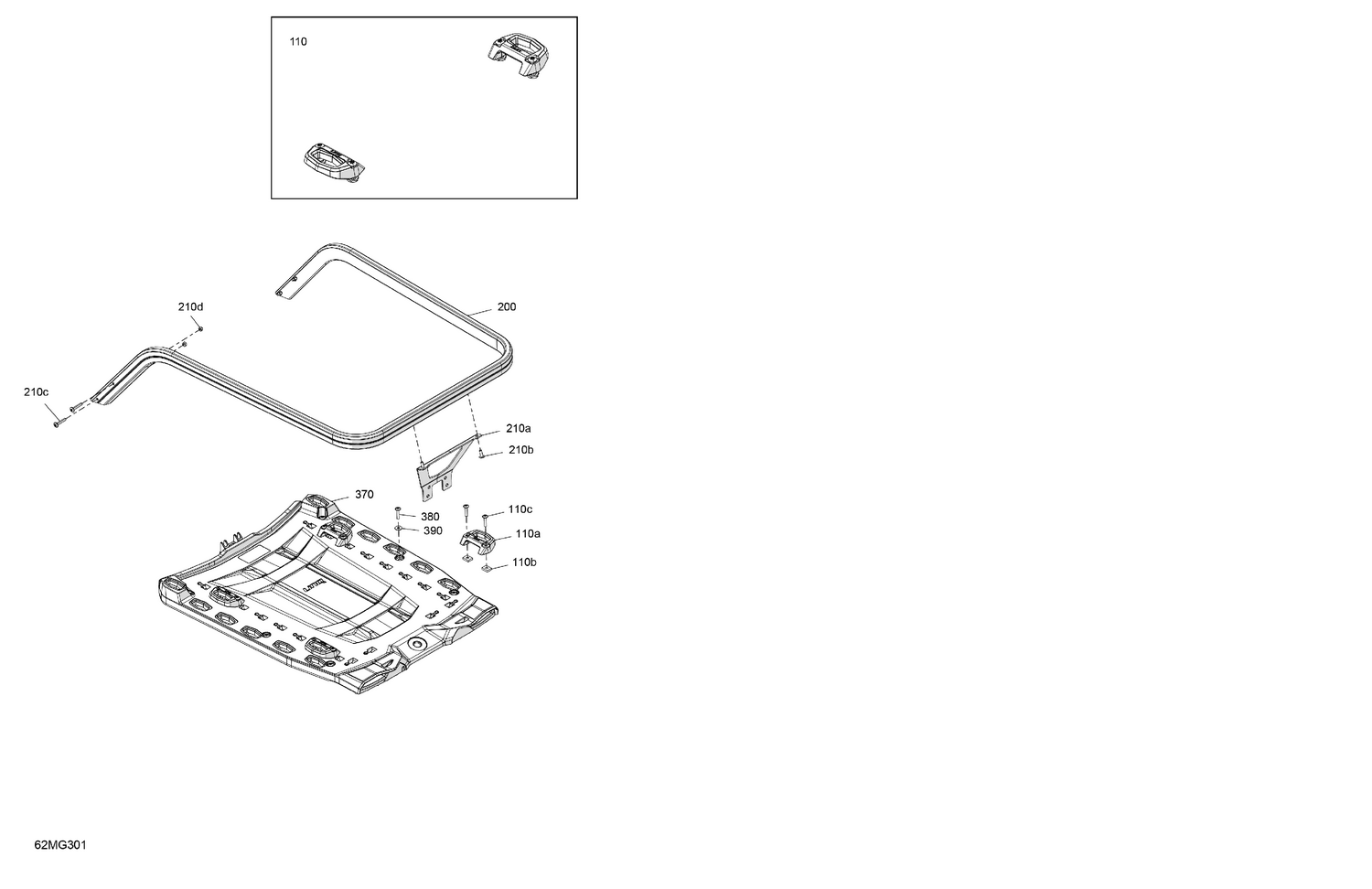

07- Body - Cargo
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 110a | 860203055 | Linq Anchorage Kit |
| 110b | 511000822 | Threaded Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 200 | 511001416 | Luggage Rack |
| 210a | 511001266 | Rear Support Rack |
| 210b | 250000779 | Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 210c | 250001258 | Screw Torx M6 X 35 |
| 210d | 232561414 | Elastic Stop Nut M6 |
| 370 | 511001209 | Multifonctional Plate |
| 380 | 250000843 | Torx Truss Screw M6 X 30 |
