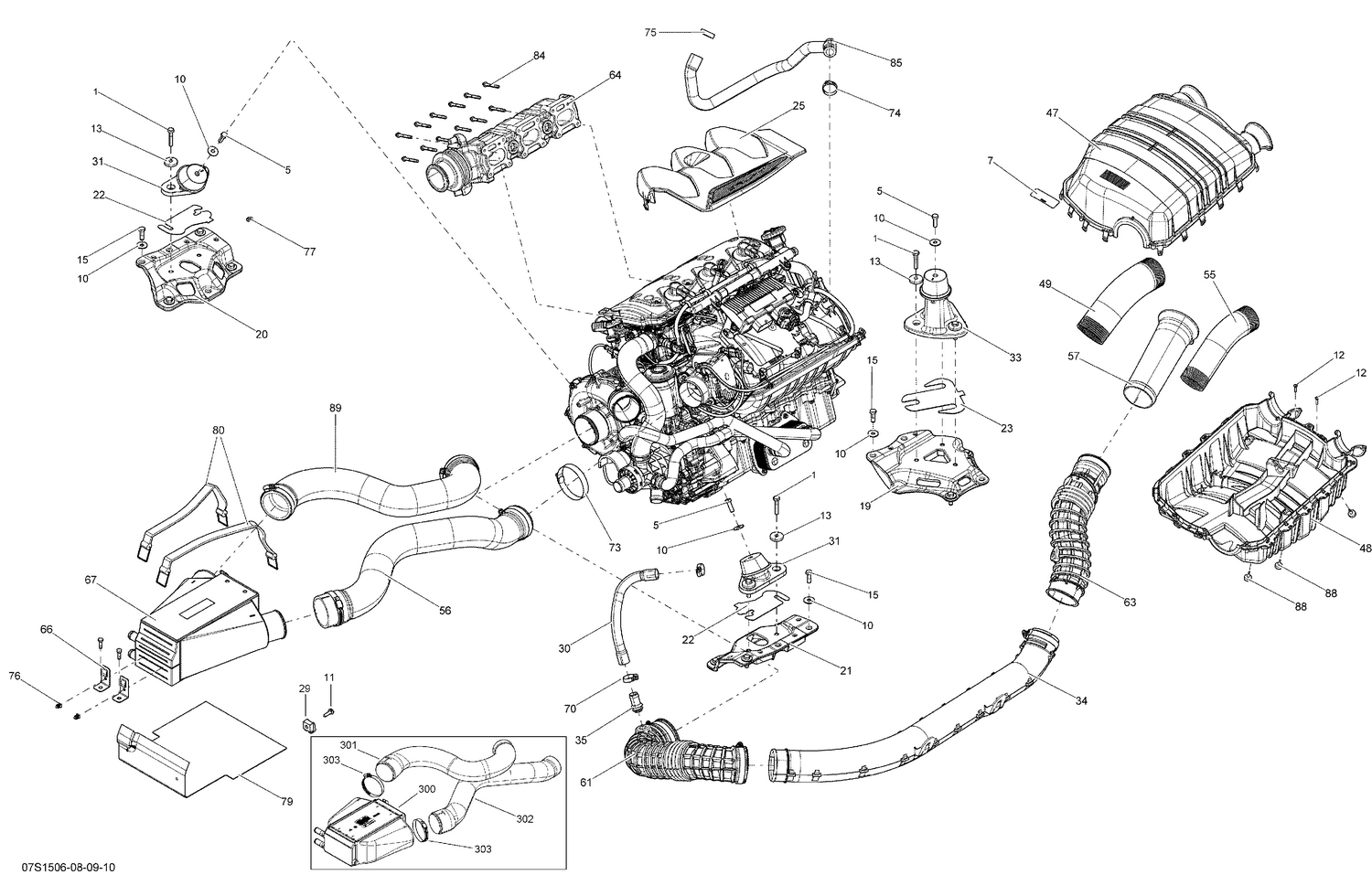

| Ref | Part Number | Description |
|---|
| 5 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 7 |
219903177 |
Air Silencer Notice Decal |
| 10 |
234082600 |
Flat Washer 8 mm, Stainless |
| 11 |
243162060 |
Hex. Flange Screw M6.81 x 20 |
| 12 |
250000287 |
Flange Torx Screw K40 X 16 |
| 13 |
250200018 |
Cone Washer |
| 15 |
250000525 |
Hex. Screw M8 X 25, Scotch Grip |
| 19 |
270000767 |
SPACER - Call your local BRP dealership |
| 20 |
270000763 |
SPACER - Call your local BRP dealership |
| 21 |
270000766 |
Spacer |
| 22 |
270000762 |
Shim 1.3 mm |
| 23 |
270000770 |
Shim 1.3 mm |
| 25 |
270000804 |
Engine Cover |
| 30 |
270000950 |
Formed Hose |
| 31 |
270001081 |
Engine Support Ass'y This part replaces 270000882. |
| 33 |
270000886 |
Rubber Mount |
| 34 |
273000233 |
HOSE INTAKE - Call your local BRP dealership |
| 35 |
273000234 |
Breather Valve |
| 47 |
273000372 |
SILENCER_INTAKE UP - Call your local BRP dealership This part replaces 273000288. |
| 48 |
273000356 |
SILENCER_INTAKE LWR - Call your local BRP dealership This part replaces 273000289. |
| 49 |
273000290 |
Air Silencer Hose |
| 55 |
273000299 |
AIR SILENCER TUBE - Call your local BRP dealership |
| 56 |
273000405 |
Outlet Hose This part replaces 273000300. |
| 57 |
273000359 |
Intake Hose This part replaces 273000301. |
| 61 |
273000328 |
Hose Intake, Rear |
| 63 |
273000322 |
HOSE CONNECTOR - Call your local BRP dealership |
| 64 |
296000422 |
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001553. |
| 66 |
275500743 |
STRAP CLIP 90 - Call your local BRP dealership |
| 67 |
276000415 |
Intercooler This part replaces 276000332. |
| 70 |
293650051 |
Tridon Gear Clamp |
| 73 |
293650179 |
Tridon Clamp |
| 74 |
293650217 |
Crimp Clamp |
| 75 |
293650051 |
Tridon Gear Clamp |
| 76 |
293730016 |
Black, Dart |
| 77 |
293750002 |
Tie Wrap 142 mm |
| 79 |
293830146 |
RUBBER PAD - Call your local BRP dealership |
| 80 |
293850093 |
Fuel Tank Strap This part replaces 293850111. |
| 84 |
420641198 |
Torx Flange Screw M6 X 45 |
| 85 |
420822174 |
FORMED HOSE - Call your local BRP dealership |
| 88 |
708000759 |
Rubber Stopper |
| 89 |
273000404 |
Inlet Hose This part replaces 273000282. |
