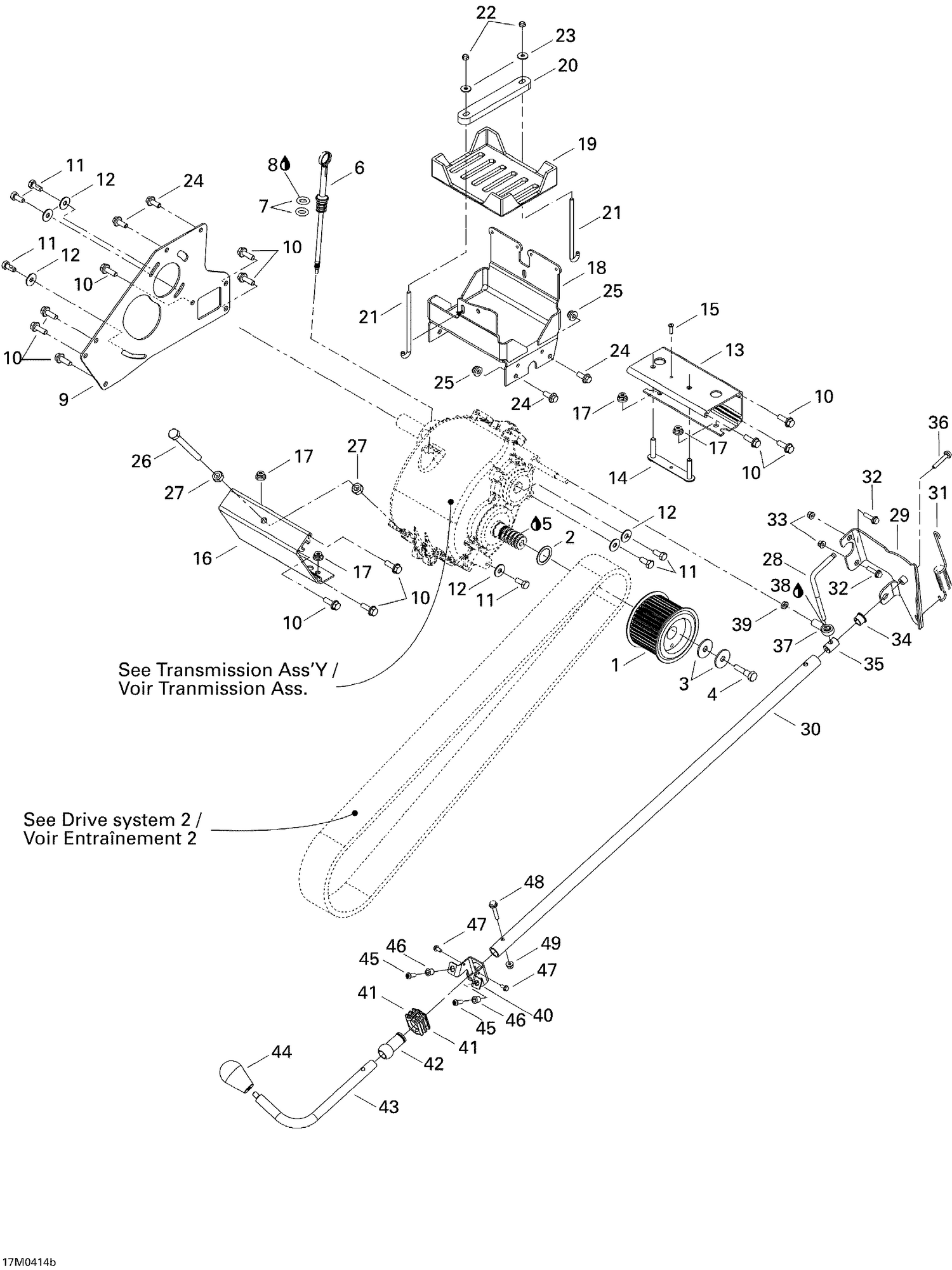

05- Drive System 2
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504152285 | Gear 38 Teeth |
| 2 | 512059991 | Washer |
| 3 | 506150000 | Washer 10 mm |
| 4 | 245004060 | HEX. SCREW M10 X 40, SCOTCH GRIP - Call your local BRP dealership |
| 5 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 6 | 504151750 | FILLER CAP ASSY - Call your local BRP dealership |
| 7 | 414969400 | O-RING - Call your local BRP dealership |
| 8 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 9 | 504152166 | Transmission Support |
| 10 | 210282540 | Hex. Forming Screw M8 X 25 |
| 11 | 250000118 | Hex. Screw With Nylon |
| 12 | 503183200 | Yellow, Washer |
| 13 | 504152227 | Rear Extrusion |
| 14 | 518323288 | Fixation Plate |
| 15 | 390402200 | Pop Rivet 3/16" |
| 16 | 504152228 | Front Extrusion |
| 17 | 233281414 | Hex. Flange Elastic Nut M8 |
| 18 | 504152229 | Battery Support |
| 19 | 278001582 | LOWER BATTERY PAD - Call your local BRP dealership |
| 20 | 504152350 | Battery Attach |
| 21 | 504152351 | Anchor Rod |
| 22 | 232561414 | Elastic Stop Nut M6 |
| 23 | 234062410 | Flat Washer 6 mm |
| 24 | 207682044 | Hex. Flange Screw M8 X 20 |
| 25 | 233281414 | Hex. Flange Elastic Nut M8 |
| 26 | 230102044 | Hex. Screw M10 X 12 |
| 27 | 232006414 | Hex. Nut M10 X 1.5 |
| 28 | 504152230 | Pivot |
| 29 | 504152243 | Pivot Plate |
| 30 | 504152242 | Shifting Rod |
| 31 | 504152281 | Spring |
| 32 | 207662544 | Hex. Flange Screw M6 X 25 |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 34 | 520000234 | CUSHION - Call your local BRP dealership |
| 35 | 504152332 | Tightening Bushing |
| 36 | 207663544 | Hex. Flange Screw M6 X 35 |
| 37 | 506151729 | LH BALL JOINT - Call your local BRP dealership |
| 38 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 39 | 232180600 | Hex. Jam Nut M8 |
| 40 | 504152330 | Ball Joint Support |
| 41 | 505070817 | SLIDING BLOCK - Call your local BRP dealership |
| 42 | 505070819 | BALL JOINT - Call your local BRP dealership |
| 43 | 504152154 | Lever |
| 44 | 705500022 | LEVER BUTTON - Call your local BRP dealership |
| 45 | 250000172 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 46 | 293450275 | Insert This part replaces 415107300. |
| 47 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 48 | 207663544 | Hex. Flange Screw M6 X 35 |
