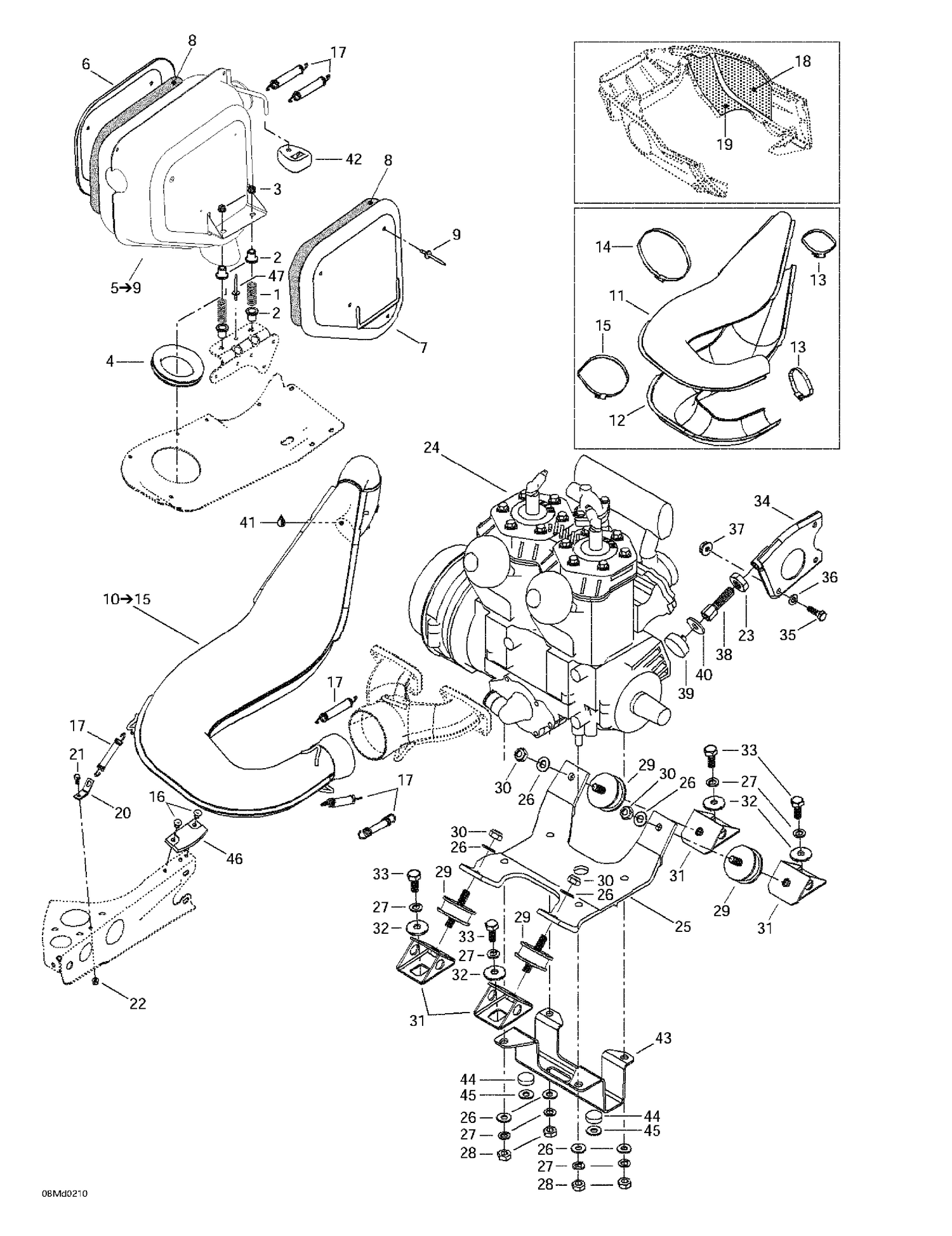

01- Engine Support And Muffler
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 414913700 | SPRING - Call your local BRP dealership |
| 2 | 514053343 | GUIDE - Call your local BRP dealership |
| 3 | 233081416 | Hex. Flange Nut M8 |
| 4 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 6 | 514051700 | RH Heat Shield |
| 7 | 514052960 | LH Heat Shield |
| 8 | 514051900 | Insulating Wool R.H |
| 9 | 390910000 | Pop Rivet 3/16” |
| 11 | 514052938 | Upper Envelope |
| 12 | 514053422 | Lower Envelope |
| 13 | 514052860 | Norma Clamp |
| 14 | 514052861 | Gear Clamp (Norma) |
| 15 | 514052983 | Norma Gear Clamp |
| 16 | 390406500 | Pop Rivet 3/16" |
| 17 | 415107100 | Spring |
| 18 | 514052718 | Reflective Sheet |
| 19 | 514052719 | Reflective Sheet |
| 20 | 514053436 | Spring Bracket |
| 21 | 207151244 | Hex. Screw M5 X 12 |
| 22 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 23 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 24 | 400409425 | Moteur «453» |
| 25 | 512059064 | Engine Support |
| 26 | 234001410 | Flat Washer 10 mm |
| 27 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 28 | 232006414 | Hex. Nut M10 X 1.5 |
| 29 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 30 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 31 | 512050900 | Engine Support |
| 32 | 512056700 | Lock Washer |
| 33 | 207102544 | Hex. Screw M10 X 25 |
| 34 | 512058500 | Support Plate |
| 35 | 207182044 | Hex. Screw M8 X 20 |
| 36 | 234081410 | Flat Washer 8 mm |
| 37 | 232581414 | Hex. Elastic Stop Nut M8 |
| 38 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 39 | 512059056 | Stopper |
| 40 | 512059057 | WASHER - Call your local BRP dealership |
| 41 | 293800090 | Sealant, Loctite, 80 ml This part replaces 413710300. |
| 42 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 43 | 512059242 | Engine Support Extension |
| 44 | 512059055 | STOPPER - Call your local BRP dealership |
| 45 | 512059058 | Washer |
| 46 | 570044100 | Rubber Pad |
| 514052961 | Insulating | Wool L.H 514052961 |
