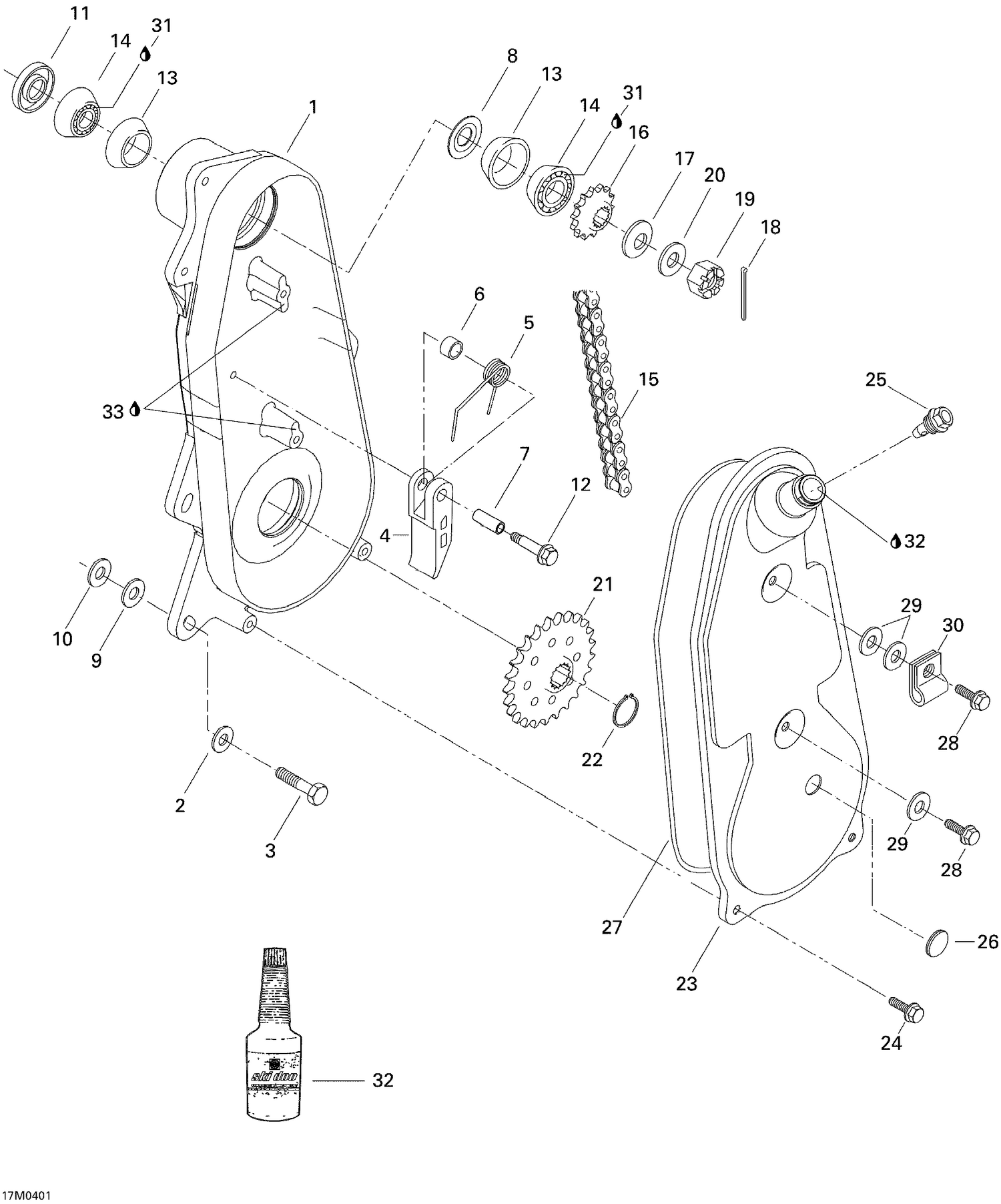

05- Chaincase
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504088000 | Machined Chain Case |
| 2 | 506151245 | Washer |
| 3 | 207182544 | Hex. Screw M8 X 25 |
| 4 | 572041600 | CHAIN TENSIONER - Call your local BRP dealership |
| 5 | 414130600 | Spring |
| 6 | 504018200 | SPACER - Call your local BRP dealership |
| 7 | 504051600 | Spacer |
| 8 | 504005800 | Oil Deflector |
| 9 | 504073700 | WASHER - Call your local BRP dealership |
| 10 | 250200001 | WASHER - Call your local BRP dealership |
| 11 | 406300600 | Oil Seal |
| 12 | 210264080 | HEX. SCREW M6 X 40 - Call your local BRP dealership |
| 13 | 405000300 | Cup Bearing |
| 14 | 405000400 | CONE BEARING - Call your local BRP dealership |
| 15 | 412106300 | Driving Chain |
| 16 | 504088500 | SPROCKET 14 TOOTH - Call your local BRP dealership |
| 17 | 414823700 | Washer |
| 18 | 371800800 | COTTER PIN - Call your local BRP dealership |
| 19 | 232220413 | HEX. CASTELLATED NUT M12 - Call your local BRP dealership |
| 20 | 504049500 | Special Washer |
| 21 | 504088600 | Sprocket 25 Tooth |
| 22 | 371904900 | External Circlip |
| 23 | 504088100 | PAINT CHAINCASE COVER - Call your local BRP dealership |
| 24 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 25 | 572040600 | Breather |
| 26 | 570040600 | Plug |
| 27 | 570045900 | Seal |
| 28 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 29 | 234062410 | Flat Washer 6 mm |
| 30 | 414351600 | CLIP - Call your local BRP dealership |
| 31 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 32 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
