Home / BRP / Can-Am 3-Wheel Vehicles / 2015 / Spyder / Spyder RT Limited SE6, 2015 000B9FB00 000B9FC00 000B9FD00 000B9FE00 000G1FB00 000G1FC00 000G1FD00 000G1FE00 000G1FY00 000G1FZ00 / 01- Valve Cover _73R1535b

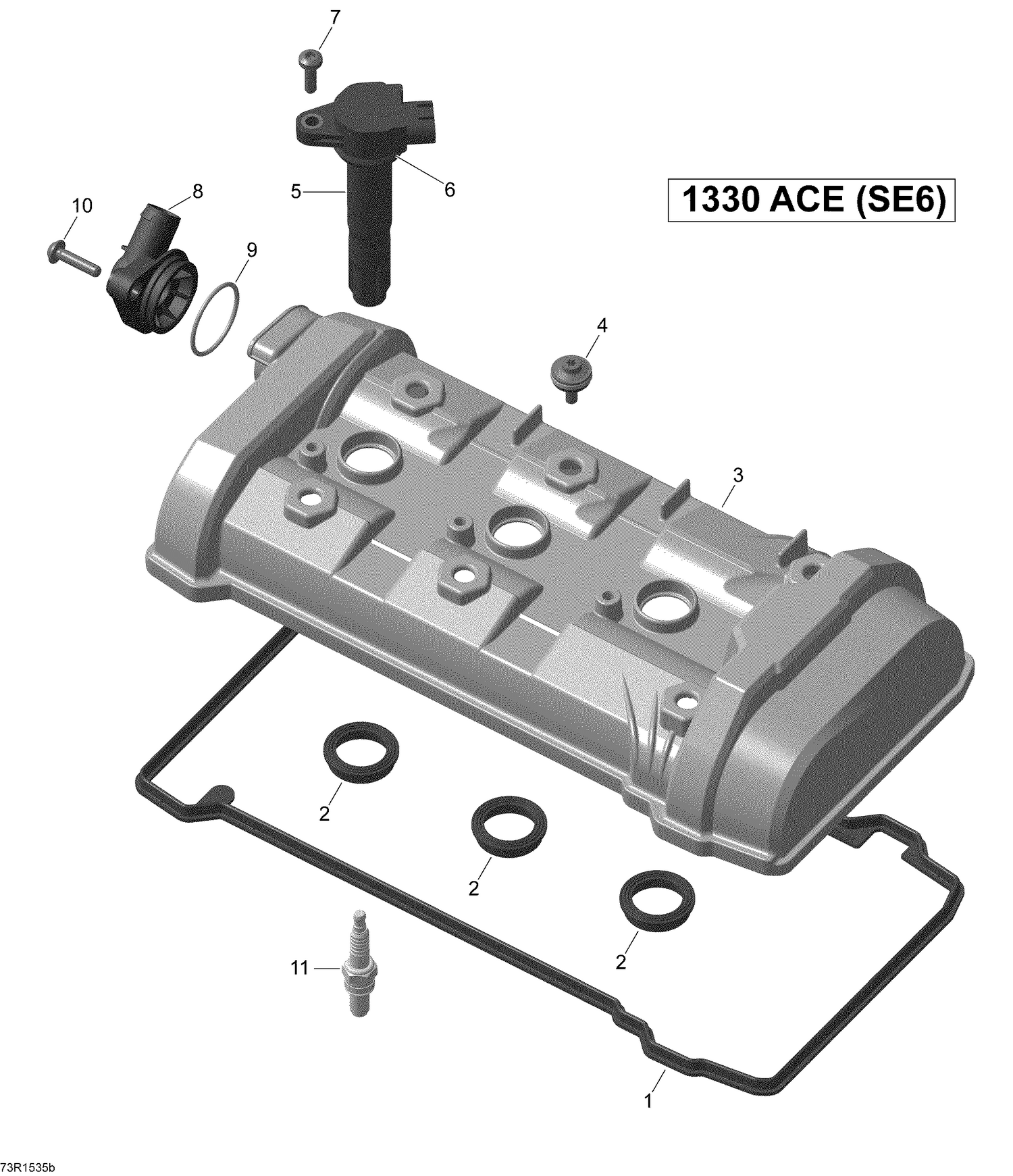

01- Valve Cover _73R1535b

01- Valve Cover _73R1535b

Parts (9)

RefPart NumberDescription
1 420250220 Gasket
2 420250240 Gasket
3 420210190 Valve Cover
4 420440495 Torx Distance Screw M6
6 420201430 Protection Cap
7 420441386 Torx Flange Screw M6 X 20
8 420210630 Connector
9 420950870 O-Ring
10 420841549 Torx Flange Screw M6 X 25
