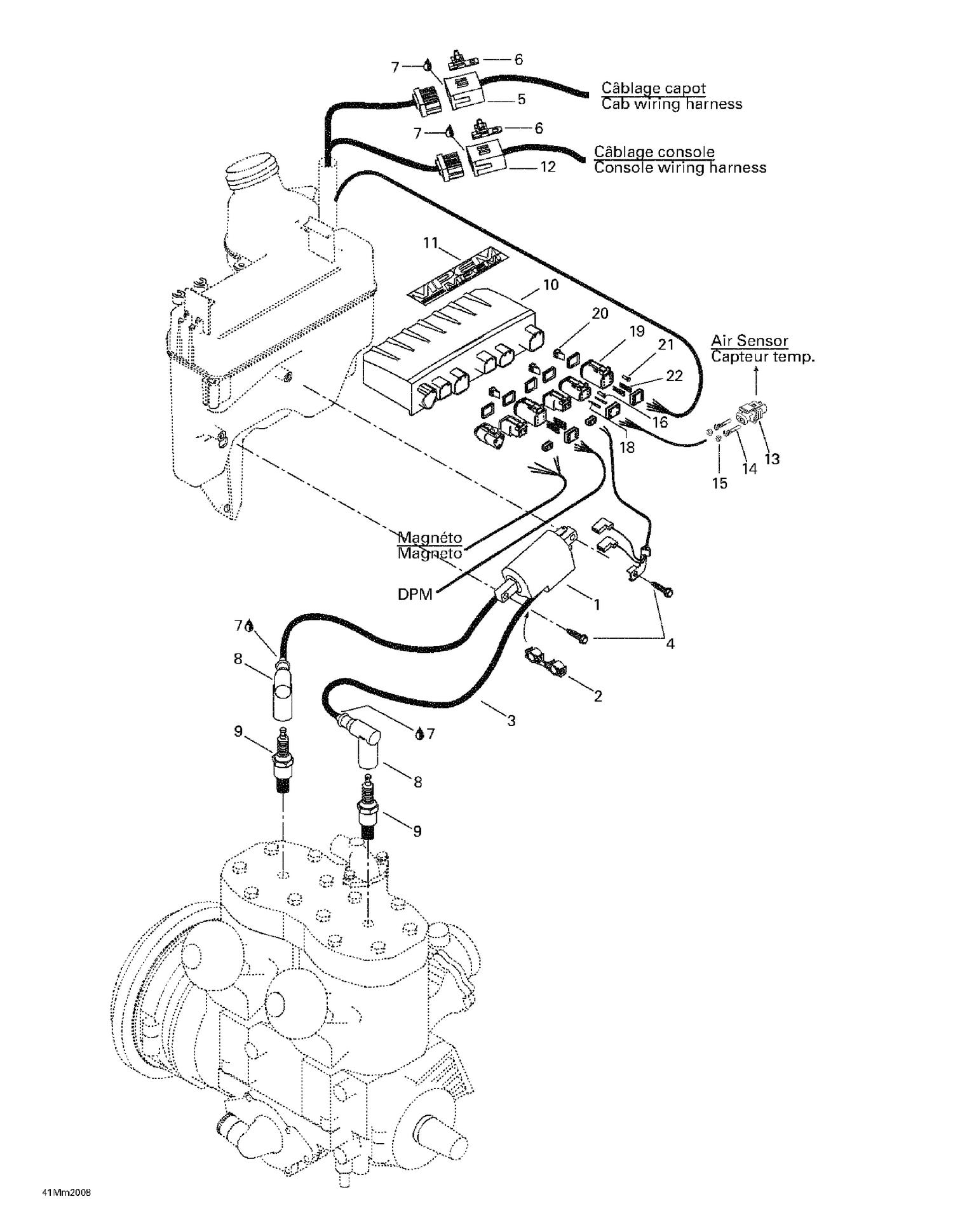

| Ref | Part Number | Description |
|---|
| 2 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 3 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 5 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 6 |
515175283 |
Housing Support |
| 7 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 8 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 9 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 10 |
512059245 |
Calibration Module |
| 11 |
516000245 |
Electrical Box Decal |
| 12 |
Not |
Available As Spare Part - Male Housing (15 Circuits) |
| 13 |
278001005 |
Male Housing, 2 Circuits |
| 14 |
278000998 |
Female Terminal |
| 15 |
278000999 |
Wire Seal |
| 16 |
515175303 |
PLUG - Call your local BRP dealership |
| 17 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 18 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 19 |
710001540 |
CONNECTOR_MALE 6 CAVITIES - Call your local BRP dealership This part replaces 278000736. |
| 20 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 21 |
293000052 |
Sealing Cap |
