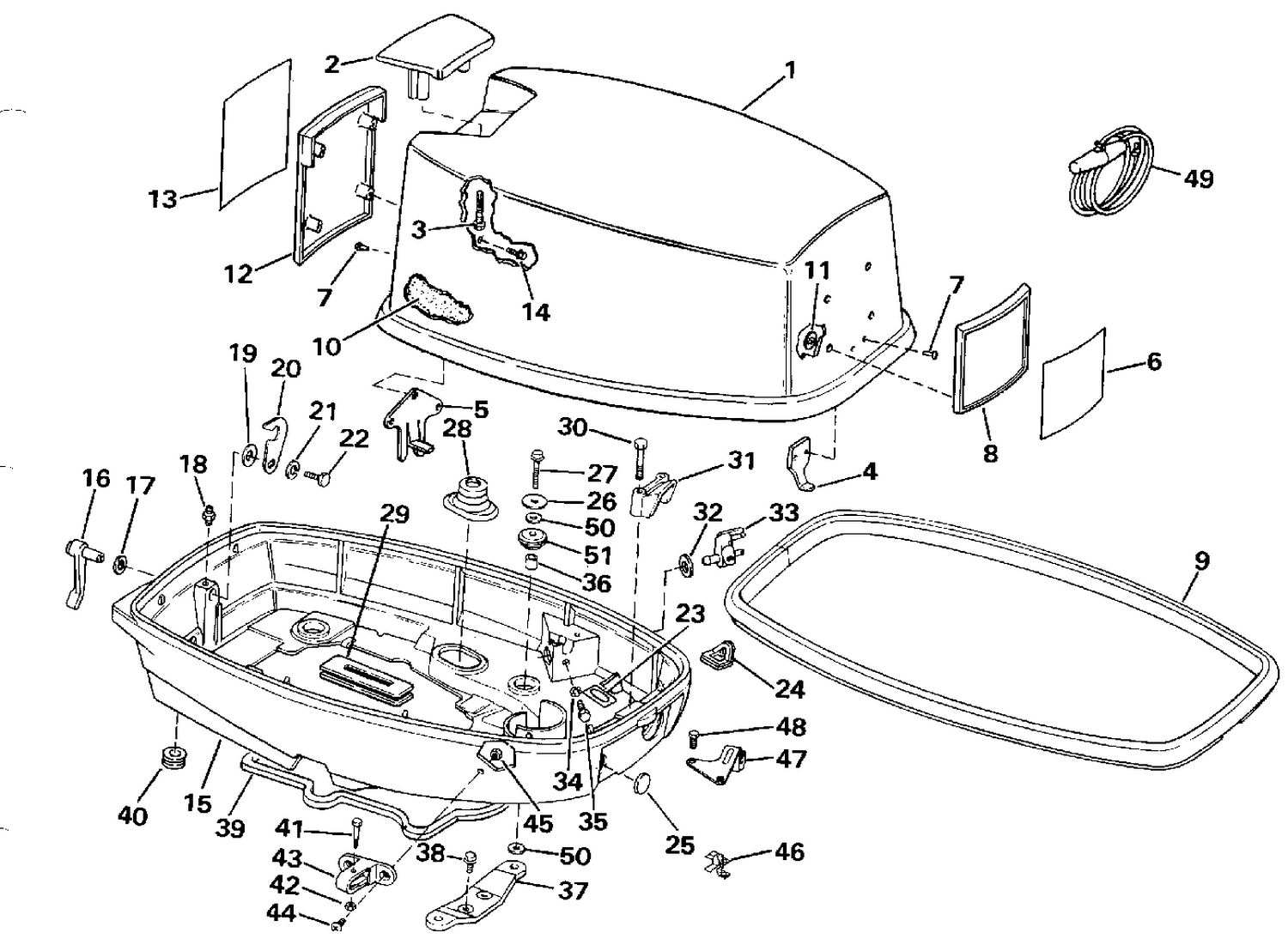

| Ref | Part Number | Description |
|---|
| 1 |
0433363 |
ENGINE COVER ASSY. |
| 4 |
0320400 |
HOOK, Engine cover |
| 6 |
0335267 |
PLATE, Frame, front |
| 8 |
0331434 |
APPLIQUE |
| 10 |
0334603 |
SOUND BLANKET Top |
| 10 |
0334604 |
SOUND BLANKET, Front |
| 10 |
0334605 |
SOUND BLANKET, Front |
| 10 |
0334606 |
SOUND BLANKET, Stbd |
| 12 |
0334529 |
FRAME, Rear |
| 13 |
0335266 |
PLATE, Frame, rear |
| 15 |
0433392 |
ENGINE COVER, Lower |
| 26 |
0203622 |
WASHER |
| 27 |
0329240 |
SCREW |
| 28 |
0304019 |
CROMMET, CONTROL SHAFT |
| 29 |
0325327 |
GROMMET, Actuator cam |
| 30 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 31 |
0325972 |
COLLIER, câbles électriques |
| 36 |
0302406 |
SLEEVE |
| 37 |
0325868 |
BRACKET, Cove to exh. hsg., front |
| 39 |
0320158 |
SEAL, Housing to cover |
| 40 |
0334761 |
GROMMET |
| 41 |
0332638 |
VIS, ancrage de câble de commande de sens de marche |
| 43 |
0332637 |
BLOC, ancrage |
| 47 |
0331460 |
SUPPORT DE VERROUILLAGE |
| 49 |
0378347 |
CORDE DE LANCEUR |
| 50 |
0329241 |
RONDELLE |
| 51 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 0432039 |
0432039 |
OWNER'S MANUAL, Jo |
