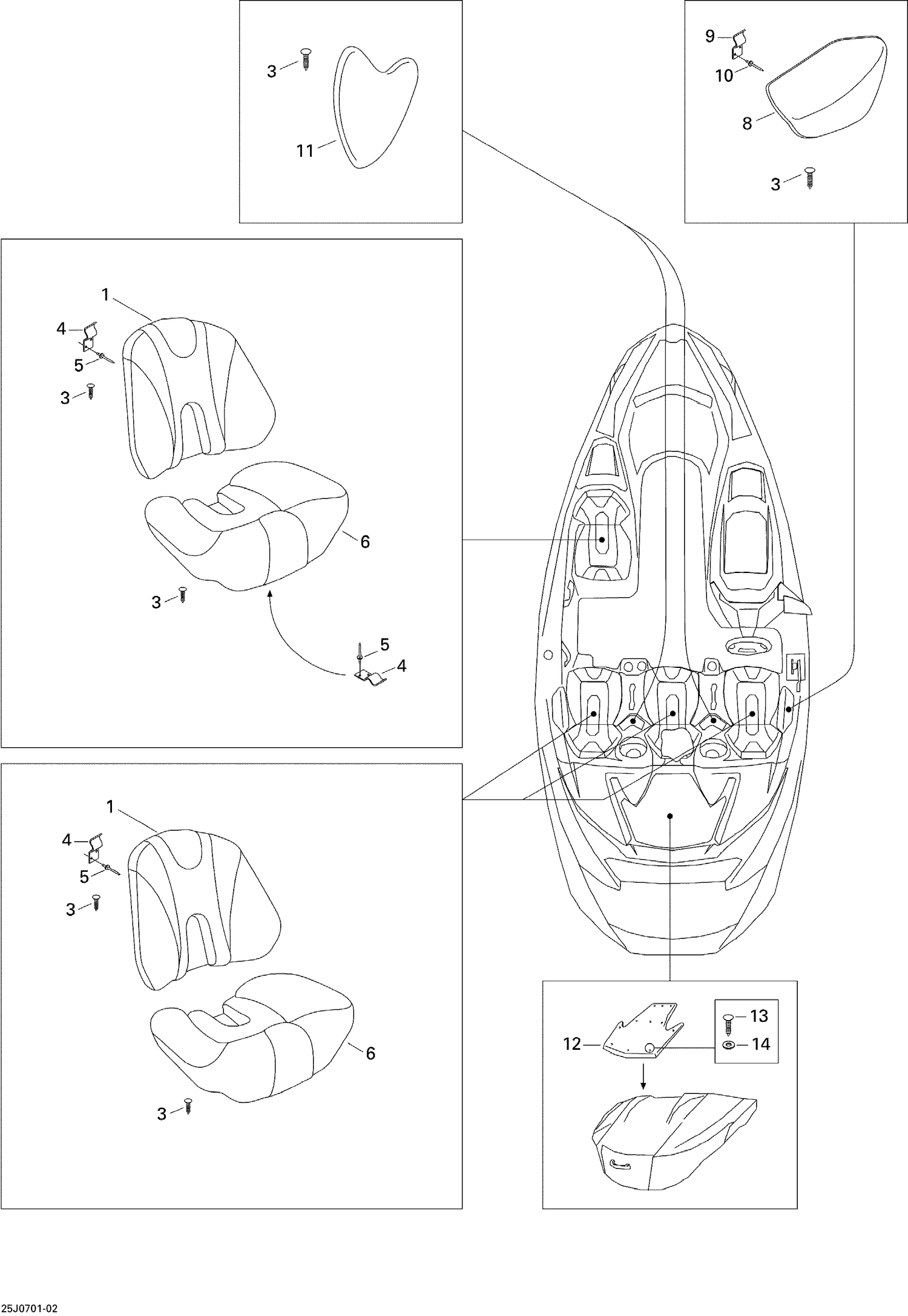

09- Seat
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 293730021 | Dart |
| 4 | 204613998 | SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 5 | 293150043 | Pop Rivet 3/16" |
| 8 | 204613654 | LH Armrest Ass'y, Port Side |
| 8 | 204613657 | RH Armrest Ass'y, Starboard |
| 9 | 204613998 | SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 10 | 293150043 | Pop Rivet 3/16" |
| 11 | 204613658 | Elbowrest Ass'y |
| 13 | 293730014 | Black Dart |
