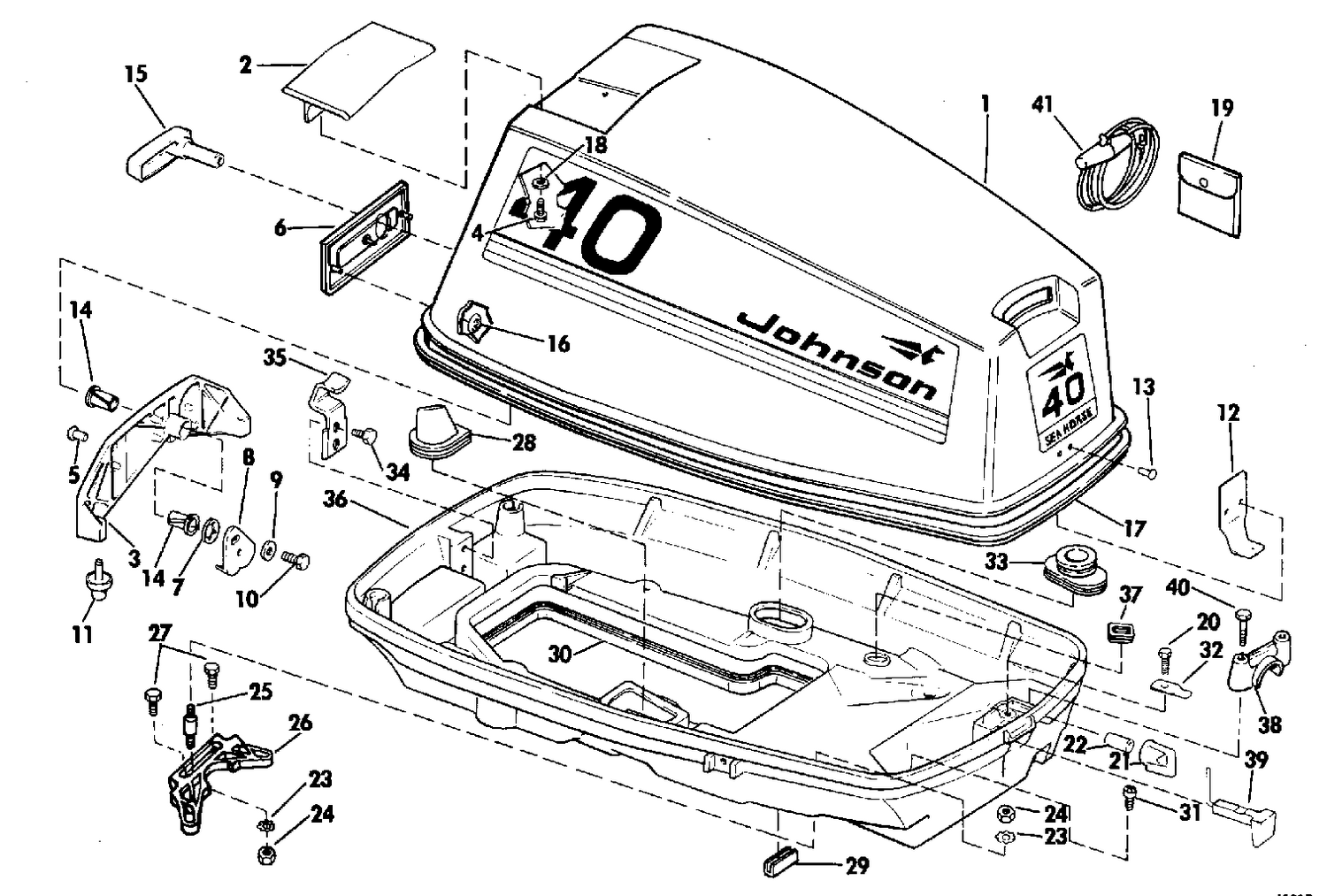

| Ref | Part Number | Description |
|---|
| 1 |
0386195 |
MOTOR COVER ASSY |
| 1 |
0386196 |
MOTOR COVER ASSY |
| 2 |
0315151 |
APPLIQUE, Rear |
| 4 |
0312299 |
VIS, serre-câble |
| 5 |
0314135 |
RIVER, Locating bracket |
| 6 |
0317112 |
APPLIQUE |
| 10 |
0552062 |
SCREW, Clamp |
| 12 |
0320400 |
HOOK, Engine cover This part replaces 0316170. |
| 15 |
0322568 |
HANDLE & SHAFT This part replaces 0384963. |
| 17 |
0317173 |
SEAL, Cover |
| 18 |
0301814 |
WASHE,Tilt handle |
| 19 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 20 |
0313117 |
SCR,Clamp,eng cable |
| 21 |
0314615 |
ADJUSTING KNOB |
| 22 |
0316201 |
BUSHIGN,Slow speed shaft |
| 23 |
0306799 |
L'WASHER,Bracket to hsg. |
| 25 |
0379061 |
MOUNT, Lower cover |
| 26 |
0384339 |
BRACKET, Lower cover |
| 27 |
0317581 |
SCREW, Actuator cam |
| 28 |
0319389 |
GROMMET, Shifter lock |
| 29 |
0553770 |
SEAL, Lower cover, small |
| 30 |
0553784 |
SEAL, Lower cover, lalrge |
| 31 |
0311020 |
SCREW, Clamp |
| 32 |
0315135 |
DETENT, Choke knob |
| 33 |
0304019 |
CROMMET, CONTROL SHAFT |
| 34 |
0306487 |
SCREW |
| 35 |
0323474 |
HOOK, Cover to housing This part replaces 0316069. |
| 36 |
0385696 |
MOTOR COVER, Lower |
| 37 |
0318262 |
GROMMET |
| 38 |
0325972 |
COLLIER, câbles électriques This part replaces 0313786. |
| 39 |
0385369 |
CHOKE KNOB ASSY |
| 41 |
0378347 |
CORDE DE LANCEUR |
| 0386610 |
0386610 |
DECAL SET |
| 0386611 |
0386611 |
DECAL SET |
