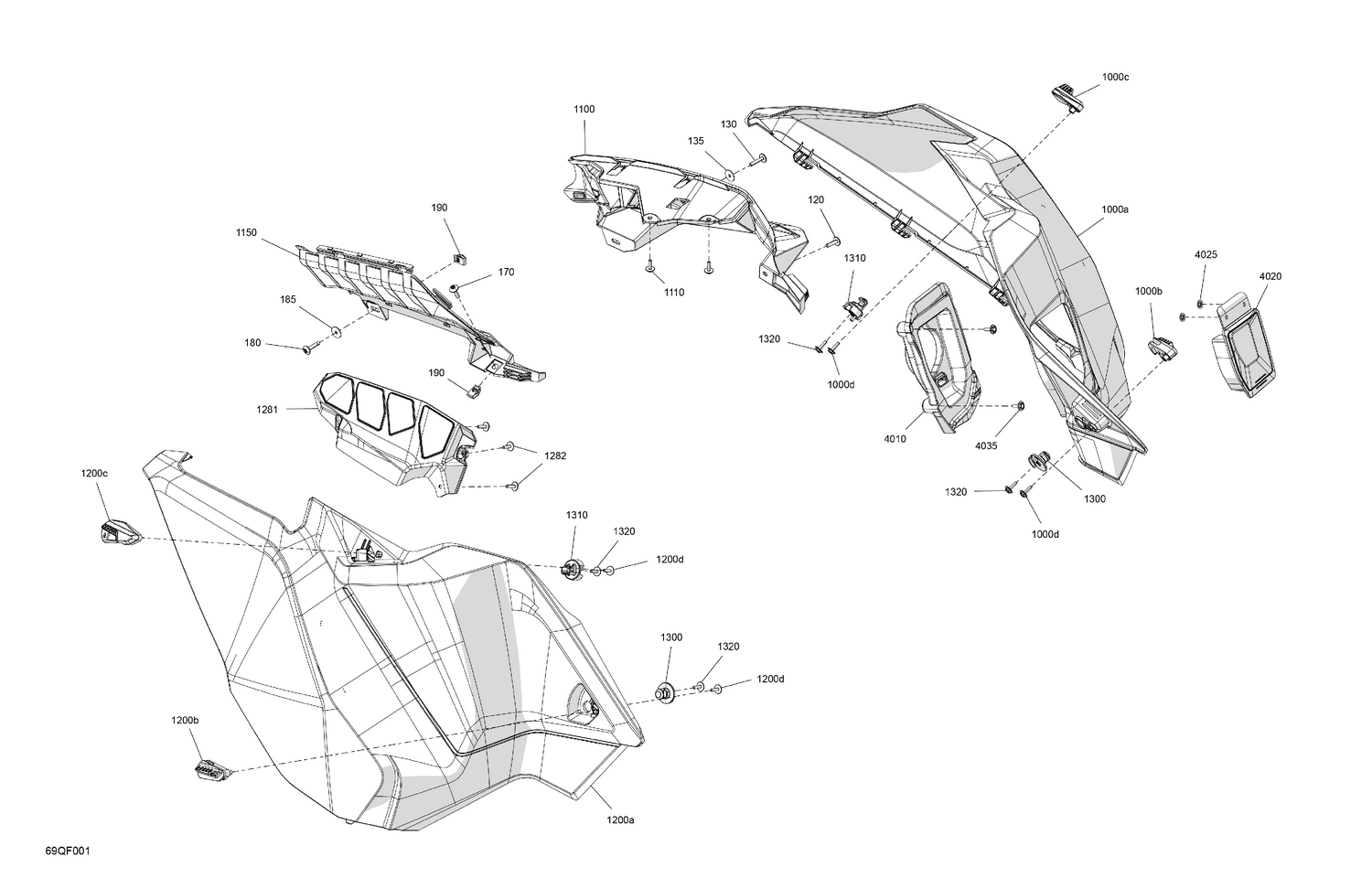

07- Body - Lateral Panels
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000528 | Torx Screw M5 X 20 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 517307442 | Washer |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 517307442 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 1000a | 517308903 | Bright White, RH Body Panel |
| 1000b | 517305774 | LH Rear Latch |
| 1000c | 517305980 | LH Front Latch |
| 1000d | 250000725 | Screw M4 X 16 |
| 1100 | 517308686 | RH Hood Grille |
| 1110 | 250000725 | Screw M4 X 16 |
| 1150 | 517308650 | LH Hood Trim |
| 1200a | 517308934 | Bright White, LH Body Panel |
| 1200b | 517305774 | LH Rear Latch |
| 1200c | 517305980 | LH Front Latch |
| 1200d | 250000725 | Screw M4 X 16 |
| 1281 | 517308687 | LH Hood Grille |
| 1282 | 250000725 | Screw M4 X 16 |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1320 | 250000725 | Screw M4 X 16 |
| 4010 | 517308746 | Trim Support |
| 4020 | 517308699 | Access Cover |
| 4025 | 732610072 | Push Nut |
