Home / BRP / EVINRUDE / 2000 / 150 / RE150FCSSV FFI, Elec Start, TNT, 25 IN. shaft, wht, cntr rotate 2000 / 10- Electrical Accessories 2

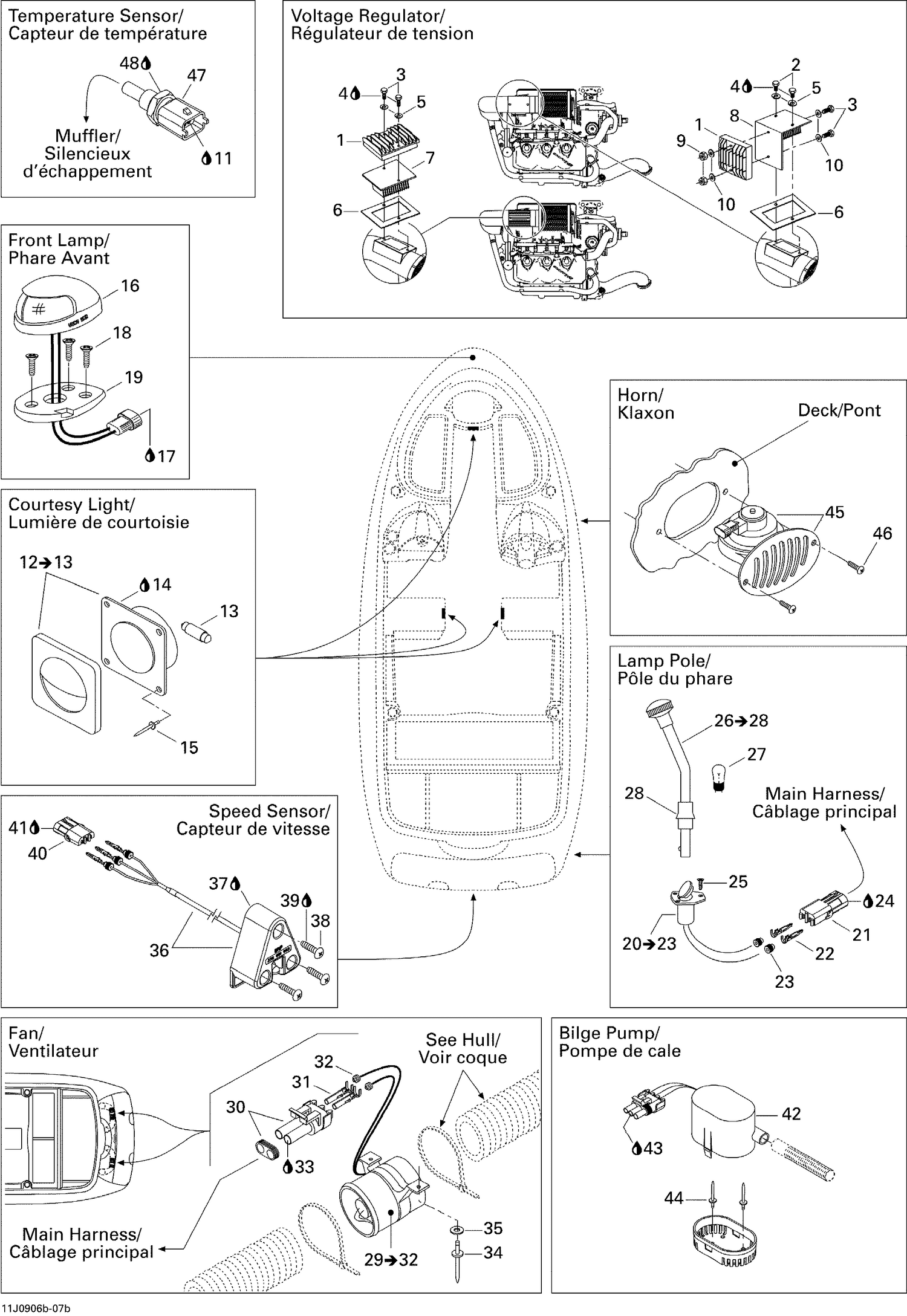

10- Electrical Accessories 2

10- Electrical Accessories 2

Parts (43)

RefPart NumberDescription
1 710001103 Voltage Regulator
2 204100137 TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership
3 204100226 HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership
4 293800060 Loctite 243, 10 ml
5 211200025 Lock Washer 1/4”
6 204471293 SEAL - Call your local BRP dealership
7 204471296 RECTIFIER HEAT SINK - Call your local BRP dealership
8 204471312 RECTIFIER HEAT SINK - Call your local BRP dealership
9 212000005 NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
10 211200019 FLAT WASHER - Call your local BRP dealership
11 219704453 Was 293550004 Dielectric Grease, 150 g
13 204470081 BULB - Call your local BRP dealership
14 219704453 Was 293550004 Dielectric Grease, 150 g
15 293150032 RIVET_POP 1/8 X ,487 - Call your local BRP dealership
16 204470372 Front Lamp
17 219704453 Was 293550004 Dielectric Grease, 150 g
18 209642560 PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
19 204470072 FRONT LAMP SUPPORT - Call your local BRP dealership
21 278000217 Female Housing, 2 Circuits
22 278000222 Male Terminal
23 278000218 Wire Seal
24 219704453 Was 293550004 Dielectric Grease, 150 g
25 209943260 Phillips Tapping Screw M4.2 X 32
27 204470053 Bulb
28 204470350 COLLAR - Call your local BRP dealership
30 278000220 Male Connector, 2 Circuits
31 278000223 Female Terminal
32 278000218 Wire Seal
33 219704453 Was 293550004 Dielectric Grease, 150 g
34 293150008 Pop Rivet 3/16" This part replaces 293150011.
35 234052600 Flat Washer 5 mm, Stainless
36 278001993 Speed Sensor
37 296000309 Silicone Sealant 51388, 300 ml
38 211000021 PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
39 296000309 Silicone Sealant 51388, 300 ml
40 278000281 Female Terminal Housing, 3 Circuits
41 219704453 Was 293550004 Dielectric Grease, 150 g
42 204471431 Bilge Pump
43 219704453 Was 293550004 Dielectric Grease, 150 g
44 293150029 RIVET_POP 5/32 - Call your local BRP dealership
45 204471160 Horn, Stainless
46 209943260 Phillips Tapping Screw M4.2 X 32
47 278002895 Temperature Sensor This part replaces 278001016.
