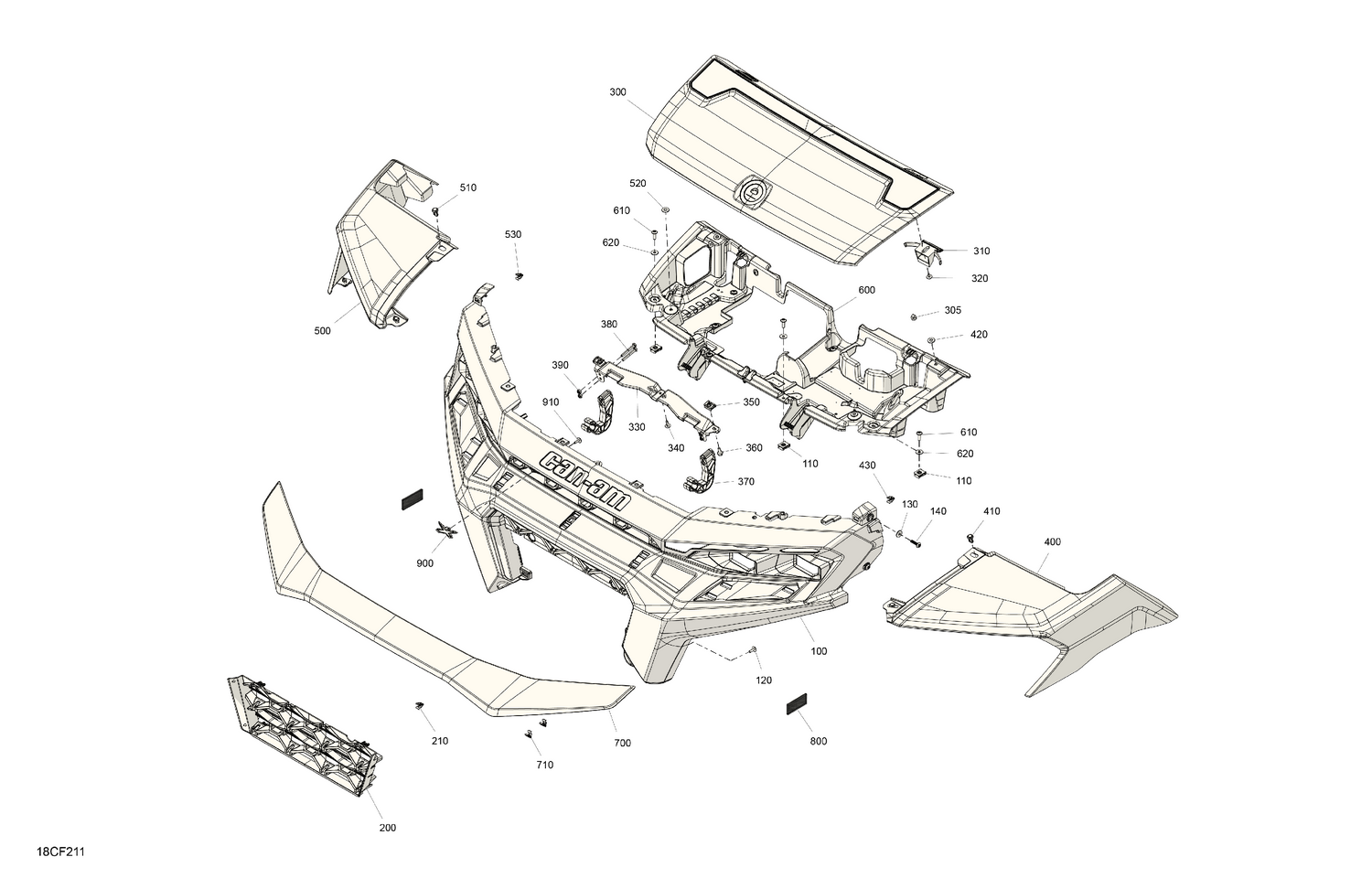

07- Body - Hood
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 708500092 | Front Fascia |
| 110 | 250100208 | Panel Nut M6 X 1.0 |
| 120 | 250000959 | Screw PT Type K-50 X 16 |
| 130 | 234062670 | Stainless Steel Flat Washer |
| 140 | 250000980 | Hex. Screw Pt K60 X 25 |
| 200 | 708500049 | Grille |
| 210 | 517306478 | Clip |
| 300 | 708500104 | Loft Green, Front Hood |
| 305 | 293830005 | Rubber Bumper |
| 310 | 708500060 | Hood Latch |
| 320 | 250000805 | Plastite Screw M4 X 10 |
| 330 | 708500093 | Hood Reinforcement |
| 340 | 250000959 | Screw PT Type K-50 X 16 |
| 350 | 250100208 | Panel Nut M6 X 1.0 |
| 360 | 207661654 | Hex. Flange Screw M6 X 16 |
| 370 | 708500056 | Pivot Support |
| 380 | 207064544 | Hex. Screw M6 X 45 |
| 390 | 232561494 | Elastic Stop Nut M6 |
| 400 | 708500110 | Loft Green, LH Front Fender |
| 410 | 293150230 | Tuflok Plastic Rivet |
| 420 | 503192494 | Washer |
| 430 | 517306478 | Clip |
| 500 | 708500113 | Loft Green, RH Front Fender |
| 510 | 293150230 | Tuflok Plastic Rivet |
| 520 | 503192494 | Washer |
| 530 | 517306478 | Clip |
| 600 | 708500045 | Multi Purpose Support |
| 610 | 250000722 | Torx Screw M6 X 20 |
| 620 | 234062670 | Stainless Steel Flat Washer |
| 700 | 708500105 | Loft Green, Central Trim |
| 710 | 517306478 | Clip |
| 800 | 520002680 | Amber, Reflector |
| 900 | 705017646 | Emblem X |
