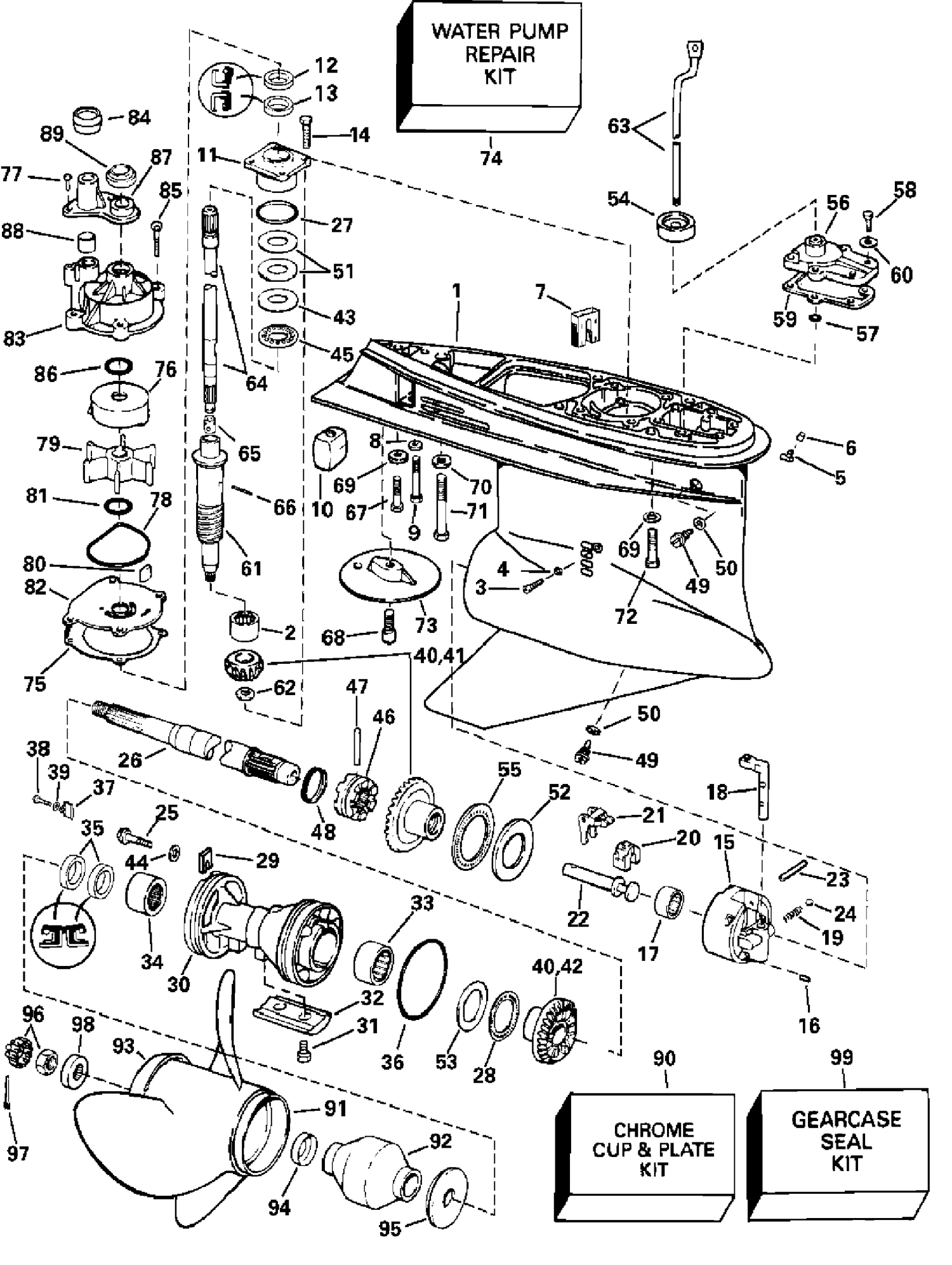

GEARCASE - FHL MODEL
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 63 | 0329864 | SHIFT ROD |
| 64 | 5007671 | DRIVESHAFT Assembly, Upper This part replaces 5000614. |
| 67 | 0330263 | SCREW, Mounting, 3/8 in. X 3.50 in. |
| 68 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 71 | 0331998 | SCREW, Gearcase to housing |
| 72 | 0331999 | SCREW, Gearcase housing |
| 73 | 0336284 | COVER, Trim tab opening |
| 74 | 5001595 | Water Pump Repair Kit |
| 78 | 0331353 | Seal, Impeller Housing Plate. |
| 86 | 0331188 | O-Ring |
| 90 | 0435526 | CHROME CUP & PLATE KIT |
| 5007656 | G-Cs | Call Techserv This part replaces 5004913. 5007656 |
