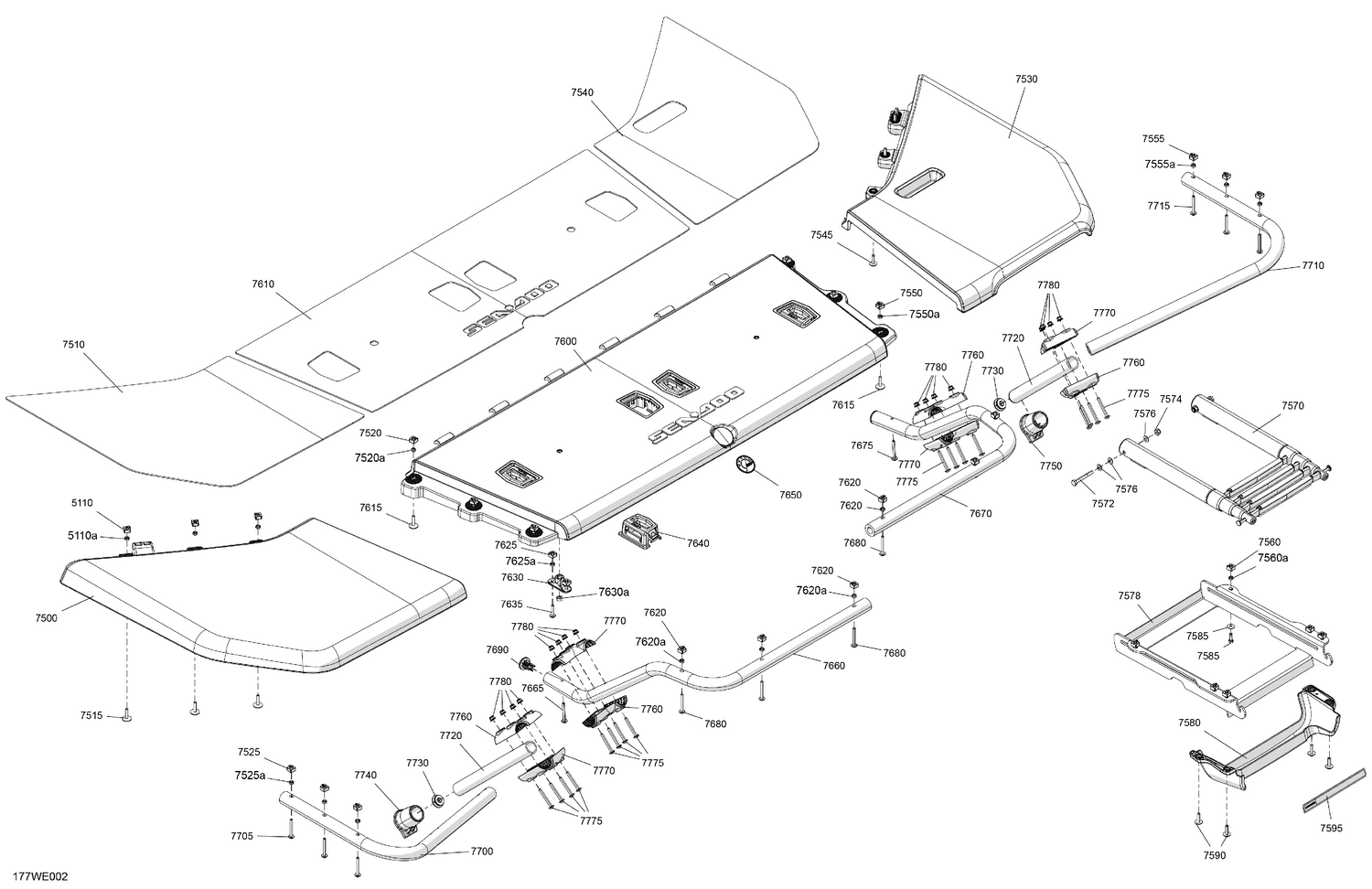

06- BODY - Swim Platform
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 5110a | 232561200 | Brass Elastic Stop Nut M6 |
| 7500 | 291006566 | Deep Black, LH Rear Swim Platform |
| 7510 | 269004272 | LH Swim Platform Carpet |
| 7515 | 250001183 | Hex Sems Screw M6X30 |
| 7520a | 232561200 | Brass Elastic Stop Nut M6 |
| 7525a | 232561200 | Brass Elastic Stop Nut M6 |
| 7530 | 291006567 | Deep Black, RH Rear Swim Platform |
| 7540 | 269004273 | RH Swim Platform Carpet |
| 7545 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 7550a | 232561200 | Brass Elastic Stop Nut M6 |
| 7555a | 232561200 | Brass Elastic Stop Nut M6 |
| 7560a | 232561200 | Brass Elastic Stop Nut M6 |
| 7570 | 291006274 | Ladder Ass'y |
| 7572 | 207086060 | HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 7574 | 232581200 | Hex. Elastic Nut M8 Brass |
| 7576 | 234081100 | Flat Washer 8 mm, Nylon |
| 7578 | 291006274 | Ladder Ass'y |
| 7580 | 291006067 | Ladder Trim |
| 7585 | 250000965 | Hex Screw M6 X 20 |
| 7590 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 7595 | 219905725 | Ladder Warning Label |
| 7600 | 295101446 | Central Kit Service Platform |
| 7610 | 269004271 | Central Swim Platform Carpet |
| 7615 | 250001183 | Hex Sems Screw M6X30 |
| 7620a | 232561200 | Brass Elastic Stop Nut M6 |
| 7625a | 232561200 | Brass Elastic Stop Nut M6 |
| 7630a | 232081200 | Hex Nut M8 |
| 7635 | 250001116 | Screw-Torx Truss Cone Head M6X25 |
| 7640 | 295100858 | Linq Bases Kit |
| 7650 | 704909040 | BRP Logo Emblem 48 MM UV |
| 7660 | 291006065 | LH Deck Support |
| 7665 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 7670 | 291006066 | RH Deck Support |
| 7675 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 7680 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 7690 | 291005634 | Swim Plateform Cap |
| 7700 | 291006047 | LH Deck Support |
| 7705 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 7710 | 291006049 | RH Deck Support |
| 7715 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 7720 | 291006402 | Reinforcement Tube |
| 7730 | 281300340 | Round Plug |
| 7740 | 293000140 | LH Cap |
| 7750 | 293000144 | RH Cap |
| 7760 | 291006097 | Top Tube Jonction |
| 7770 | 291006098 | Bottom Tube Jonction |
| 7775 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
