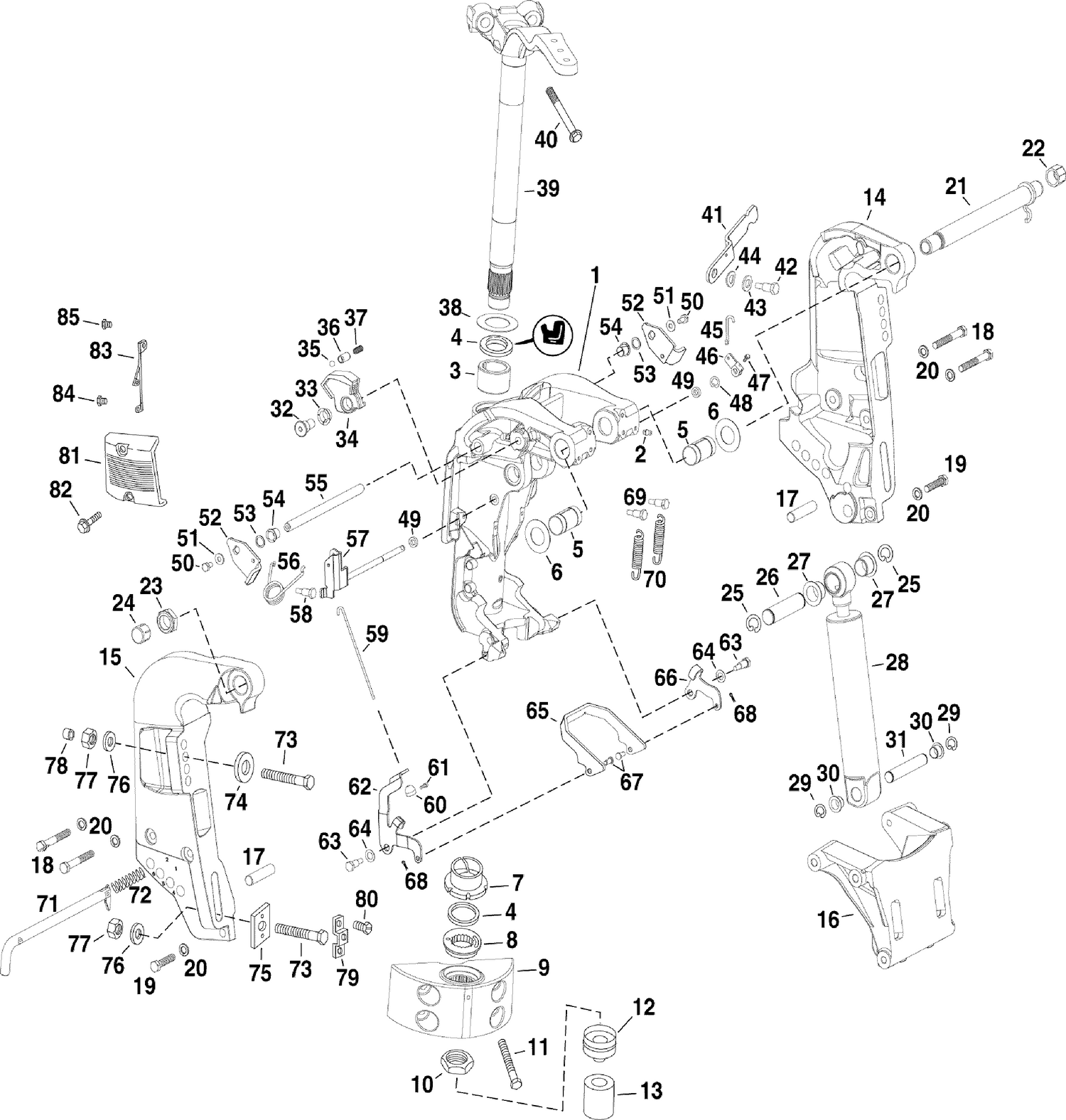

| Ref | Part Number | Description |
|---|
| NS |
0433458 |
ANODE, Port stern bracket |
| 1 |
5006199 |
SWIVEL BRACKET - (20" Models) |
| 1 |
5006384 |
SWIVEL BRACKET - (25" Model) |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0338744 |
MOUNT BRACKET |
| 9 |
0340006 |
BRACKET, Mount |
| 10 |
0320746 |
CROU, support de montage |
| 11 |
0334936 |
SCREW, Mount |
| 12 |
0912233 |
DISPOSITIF DE RETENUE, joint arbre d'articulation |
| 13 |
0911312 |
JOINT, arbre d'articulation |
| 14 |
0351923 |
STERN BRACKET, Port |
| 15 |
0351924 |
STERN BRACKET, starboard |
| 16 |
0352024 |
BRACKET, Shock absorber |
| 17 |
0352053 |
PIN, Reverse thrust |
| 18 |
0318612 |
SCREW, Bracket to cover |
| 20 |
0307708 |
RONDELLE GROWER |
| 21 |
0435007 |
TILT TUBE Assembly |
| 23 |
0335554 |
CROU, tube de relevage |
| 24 |
0317894 |
CACHE, tube de relevage |
| 25 |
0336534 |
ANNEAU DE RETENUE |
| 26 |
0335480 |
AXE, vérin de relevage |
| 27 |
0335479 |
BAGUE, support supérieur & inférieur |
| 28 |
5006167 |
CYLINDER, Shock absorber |
| 29 |
0352068 |
RING, Retaining - lower tilt cylinder pin |
| 30 |
0321246 |
BUSHING, Shock absorber, lower |
| 31 |
0351990 |
PIN, Tilt cylinder - lower |
| 32 |
0335481 |
SCREW, Tilt lever to bracket |
| 33 |
0335486 |
BAGUE, levier de relevage |
| 34 |
0335485 |
LEVER, Tilt lock |
| 35 |
0336209 |
BALL, Detent, tilt lock |
| 36 |
0334241 |
GUIDE |
| 37 |
0336230 |
RESSORT, dispositif de blocage, verrouillage de relevage |
| 38 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 39 |
5009551 |
Strg Arm&Shft 25" This part replaces 5001825. |
| 39 |
5009614 |
Strg Arm&Shft 20" This part replaces 5001908. |
| 41 |
0351871 |
LEVER, Reverse lock |
| 42 |
0352055 |
SCREW, Shoulder - reverse lock link |
| 43 |
0318169 |
WASHER, Lever & shaft |
| 45 |
0352042 |
ROD, Handle link |
| 46 |
0332691 |
BELLCRANK |
| 48 |
0352069 |
RING, Retaining - bellcrank shaft |
| 49 |
0332690 |
SPACER, Bellcrank shaft |
| 52 |
0351863 |
LEVER, Trail lock |
| 53 |
0314390 |
RETAINER |
| 54 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 55 |
0351864 |
SHAFT, Trail lock |
| 56 |
0351870 |
SPRING, Trail lock |
| 57 |
5006318 |
SHAFT, Pivot - reverse lock |
| 58 |
0330933 |
SCREW, reverse lock link |
| 59 |
0352043 |
ROD, Reverse lock lever |
| 60 |
0332693 |
COLLAR, Reverse lock release |
| 61 |
0304221 |
SCEW,Collar to cable |
| 62 |
0351867 |
LINK, Reverse lock - starboard |
| 63 |
0330933 |
SCREW, reverse lock link |
| 64 |
0343981 |
WASHER, Pin to support bracket |
| 65 |
0351865 |
LEVER, Locking |
| 66 |
0351866 |
LINK, Reverse lock - port |
| 67 |
0321591 |
PIN, Link to locking |
| 68 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 69 |
0330933 |
SCREW, reverse lock link |
| 70 |
0321920 |
SPRING, Reverse lock |
| 71 |
0436541 |
ROD Assy, Thrust |
| 72 |
0321053 |
SORUBG,Thrust rod |
| 73 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 0327053. |
| 73 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 73 |
0354102 |
SCREW, Bracket mount, 1/2 x 7 in. |
| 73 |
0354103 |
SCREW, Bracket mount, 1/2 x 8 in. |
| 73 |
0354104 |
SCREW, Bracket mount, 1/2 x 9 in. |
| 73 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0354101. |
| 73 |
0363012 |
SCREW, Bracket mounting This part replaces 0336676. |
| 74 |
0307238 |
RONDELLE |
| 75 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 76 |
0320248 |
RONDELLE, écrou |
| 77 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 78 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 79 |
0318273 |
Bolt hex retainer 1/2 in. |
| 80 |
0319886 |
SCREW |
| 81 |
0335474 |
CACHE, support arrière, tribord |
| 81 |
0335475 |
CACHE, support arrière, bâbord |
| 82 |
0337580 |
SCREW, Cover |
| 83 |
0584136 |
FIL, masse |
