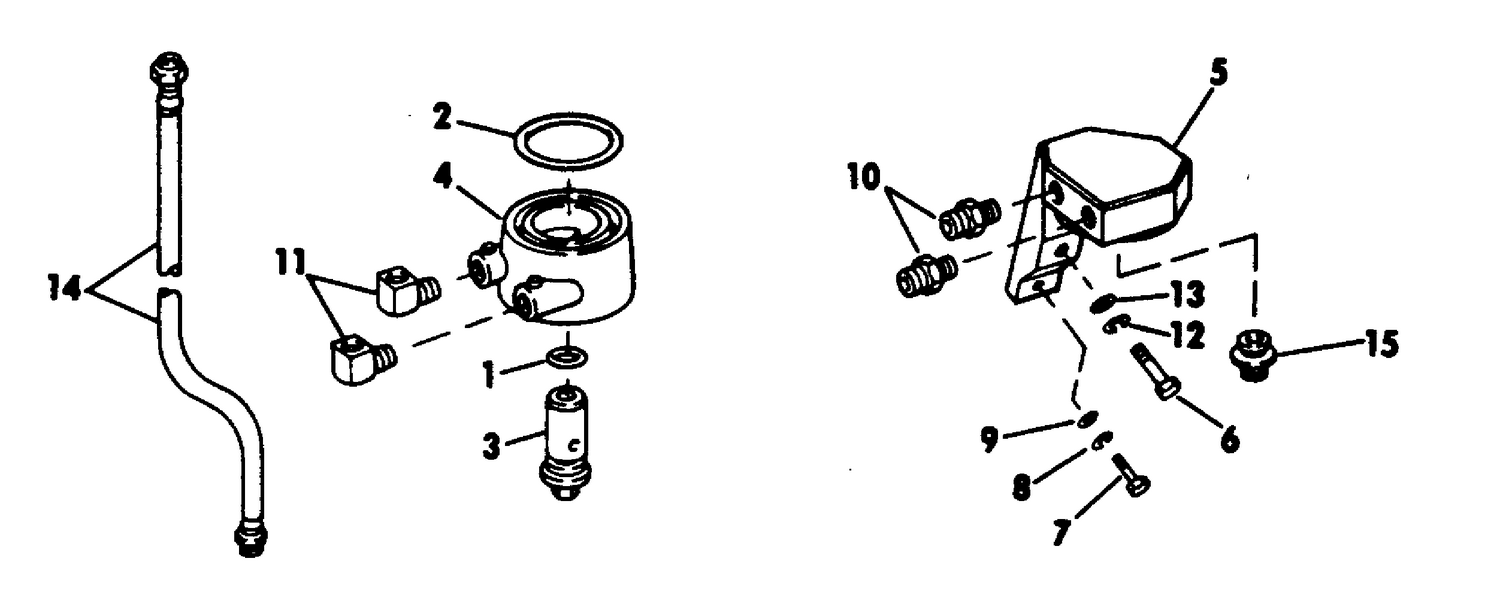

REMOTE OIL FILTER KIT-INBOARD 305-350-CID
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0909518 | O'RING |
| 2 | 3852470 | O-RING, Adapter to engine This part replaces 0909519. |
| 3 | 3853495 | RETAINER, Adapter This part replaces 0909489. |
| 4 | 0909491 | ADAPTOR |
| 5 | 0909492 | ADAPTOR, Oil filter |
| 6 | 0302288 | BOLT |
| 7 | 0306837 | SCREW Bracket |
| 8 | 0120177 | L'WASHER, Alternator to brkt |
| 10 | 0909490 | CONNECTOR, Adapter |
| 11 | 0909487 | ELBOW,Oil outlet adaptor |
| 13 | 0306407 | LOCCKWASHER,Cover latch |
| 14 | 0981537 | OIL LINE ASSEMBLY |
