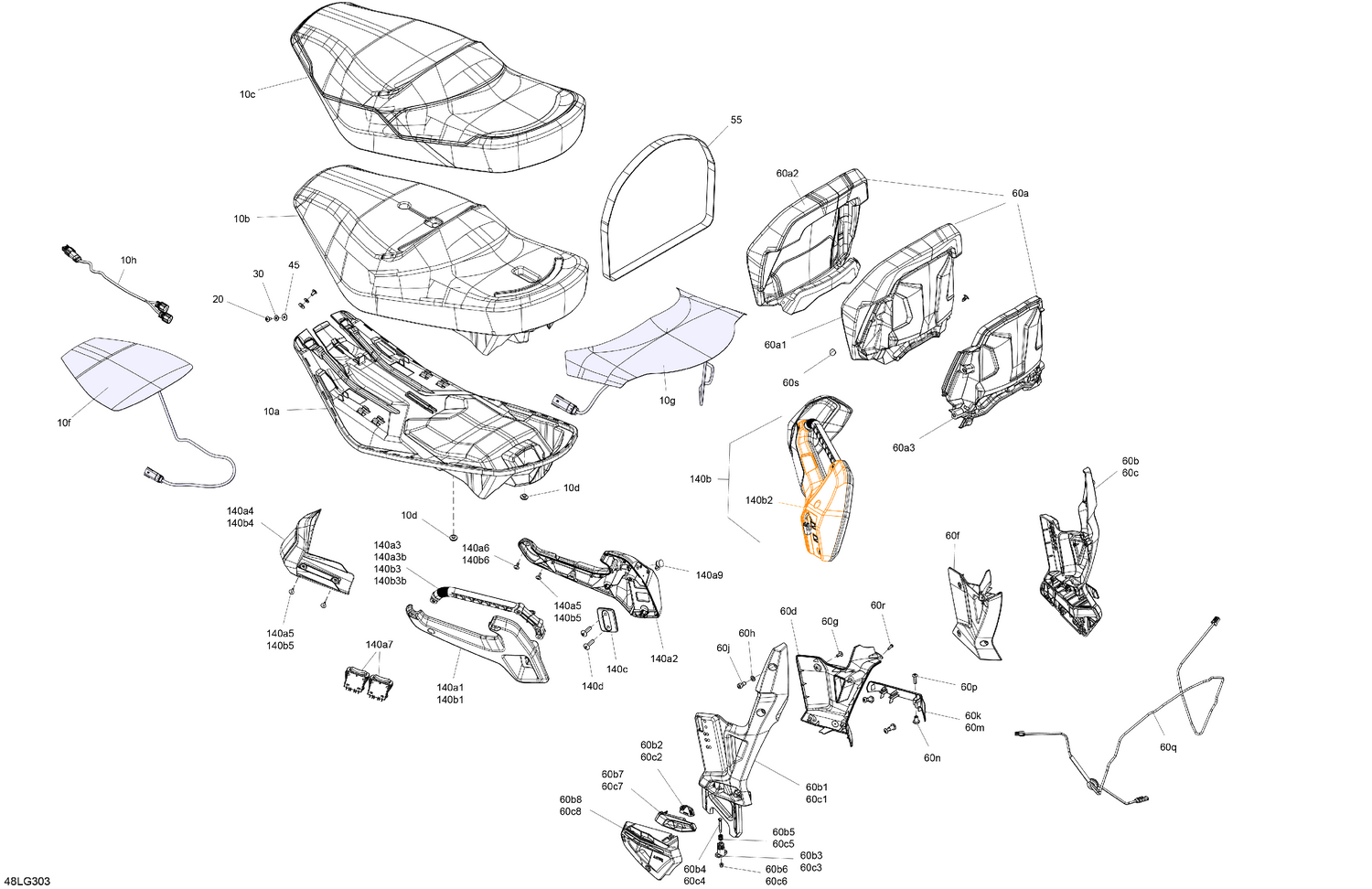

07- Body - Seat
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510008286 | Seat Base |
| 10b | 510008155 | Seat Foam |
| 10d | 605452114 | Plug |
| 10f | 515179878 | Heating Element |
| 10g | 515179879 | Heating Element |
| 10h | 515179813 | Seat Wiring Harness |
| 20 | 250000767 | Torx Truss Screw M6 X 12 |
| 30 | 250200039 | Flat Washer |
| 45 | 250200200 | Flat Washer 6 MM |
| 60a1 | 510008180 | Backrest Foam |
| 60a2 | 510008164 | Backrest Cover |
| 60a3 | 510006574 | Backrest Support |
| 60b1 | 510007210 | LH Backrest Support |
| 60b2 | 708200373 | LH Lever |
| 60b4 | 708200152 | STEM - Call your local BRP dealership |
| 60b5 | 708200263 | Spring |
| 60b6 | 233251494 | Elastic Flanged Nut M5 |
| 60b7 | 510005617 | LH Cap |
| 60b8 | 510006939 | LH Base |
| 60c1 | 510007212 | RH Backrest Support |
| 60c2 | 708200374 | RH Lever |
| 60c4 | 708200152 | STEM - Call your local BRP dealership |
| 60c5 | 708200263 | Spring |
| 60c6 | 233251494 | Elastic Flanged Nut M5 |
| 60c7 | 510005618 | RH Cap |
| 60c8 | 510006940 | RH Base |
| 60d | 510006706 | LH Trim |
| 60f | 510006705 | RH Trim |
| 60g | 250000789 | Torx Truss M6X14 |
| 60h | 234080600 | Flat Washer M8, Stainless |
| 60j | 205081654 | Screw-Socket HD.DIN.912 |
| 60k | 510006169 | LH Base Cover |
| 60m | 510006170 | RH Base Cover |
| 60n | 511000822 | Insert |
| 60p | 250001000 | Torx-Truss M/S M6 X 25 |
| 60q | 515178490 | Seat Wiring Harness |
| 60r | 250000068 | Hex. Tapping Screw #8 X 5/8 |
| 60s | 414644300 | Black, Dart |
| 140a1 | 510006492 | LH Ext. Passenger Hand Hold |
| 140a2 | 510006919 | LH Int Passenger Hand Hold |
| 140a3b | 515178576 | Heated Element |
| 140a4 | 510006495 | LH Passenger Handle Deflector |
| 140a5 | 250000889 | Screw M4 X 16 |
| 140a6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140a7 | 515178505 | Rocker Switch |
| 140a9 | 572103300 | Cap |
| 140b1 | 510006486 | RH Ext. Passenger Hand Hold |
| 140b2 | 510006487 | RH Int. Passenger Hand Hold |
| 140b3b | 515178576 | Heated Element |
| 140b4 | 510006489 | RH Passenger Handle Deflector |
| 140b5 | 250000889 | Screw M4 X 16 |
| 140b6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140c | 510006602 | Passenger Handle Trim |
| 140d | 250000753 | Torx Truss M/S M8 x 35 |
