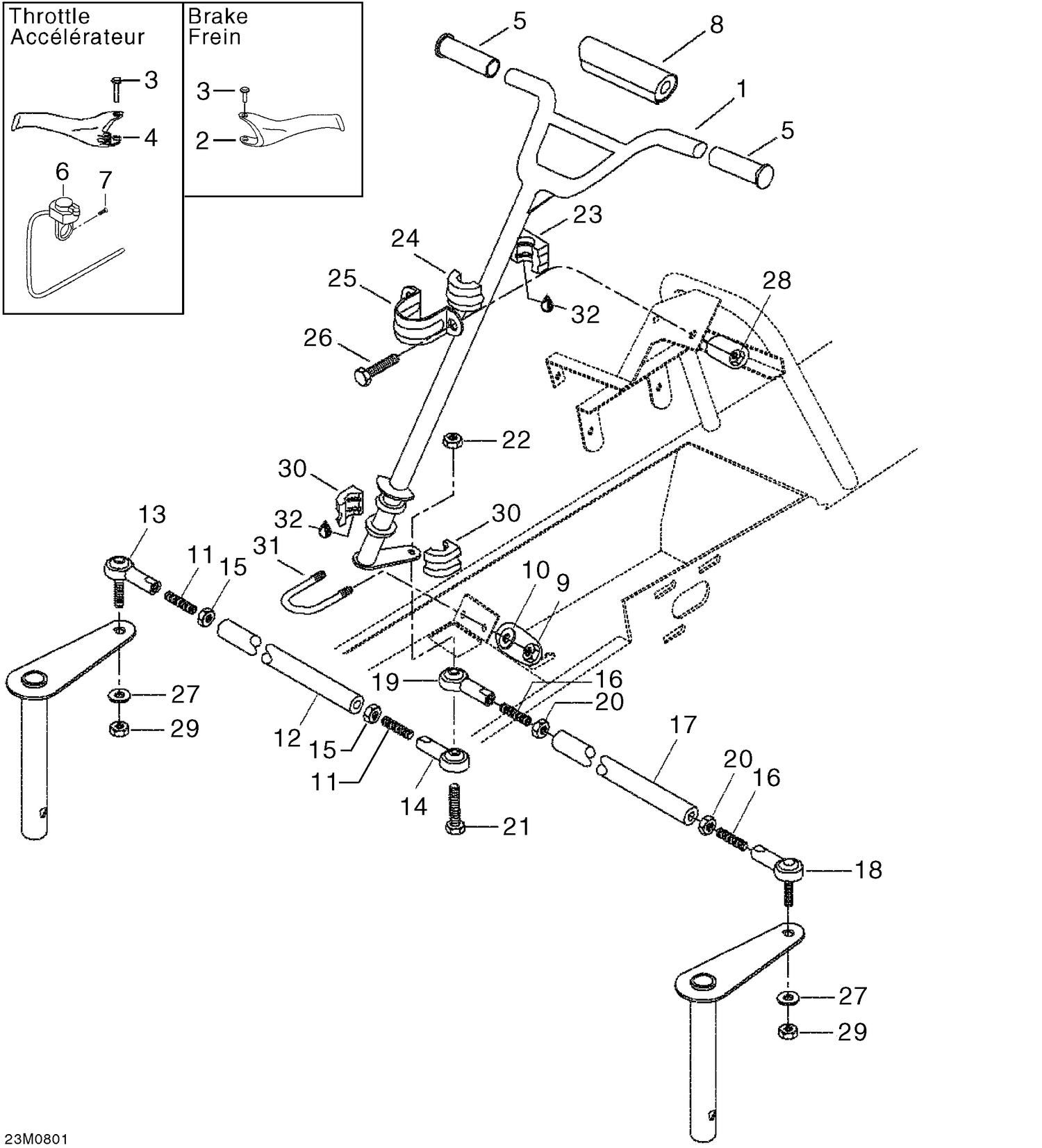

07- Steering
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506151696 | Handle Bar |
| 2 | 506151225 | BRAKE HANDLE - Call your local BRP dealership |
| 3 | 390502000 | Tubular Rivet |
| 4 | 506151227 | THROTTLE HANDLE - Call your local BRP dealership |
| 5 | 572064100 | HANDLE GRIP - Call your local BRP dealership |
| 6 | 515177454 | KILL SWITCH - Call your local BRP dealership This part replaces 515176529. |
| 7 | 250000031 | PHILLIPS TAPPING SCREW M4.8 X 16 - Call your local BRP dealership |
| 8 | 572103400 | Steering Padding |
| 9 | 232581414 | Hex. Elastic Stop Nut M8 |
| 10 | 234081410 | Flat Washer 8 mm |
| 11 | 206285044 | Socket Set Screw M8 x 50 |
| 12 | 506151693 | TIE ROD (SHORT) - Call your local BRP dealership |
| 13 | 415108500 | BALL JOINT - Call your local BRP dealership |
| 14 | 506151729 | LH BALL JOINT - Call your local BRP dealership |
| 15 | 232081414 | Hex. Nut M8 |
| 16 | 206285044 | Socket Set Screw M8 x 50 |
| 17 | 506151695 | TIE ROD (LONG) - Call your local BRP dealership |
| 18 | 415108500 | BALL JOINT - Call your local BRP dealership |
| 19 | 506151729 | LH BALL JOINT - Call your local BRP dealership |
| 20 | 232081414 | Hex. Nut M8 |
| 21 | 207084044 | Hex. Screw M8 X 40 |
| 22 | 233281414 | Hex. Flange Elastic Nut M8 |
| 23 | 572064400 | Bushing |
| 24 | 572064500 | BUSHING - Call your local BRP dealership |
| 25 | 517126200 | Retainer Support |
| 26 | 207182044 | Hex. Screw M8 X 20 |
| 27 | 234081410 | Flat Washer 8 mm |
| 28 | 232581414 | Hex. Elastic Stop Nut M8 |
| 29 | 233281414 | Hex. Flange Elastic Nut M8 |
| 30 | 572067100 | HALF-BUSHING - Call your local BRP dealership |
| 31 | 506060600 | U-clamp |
