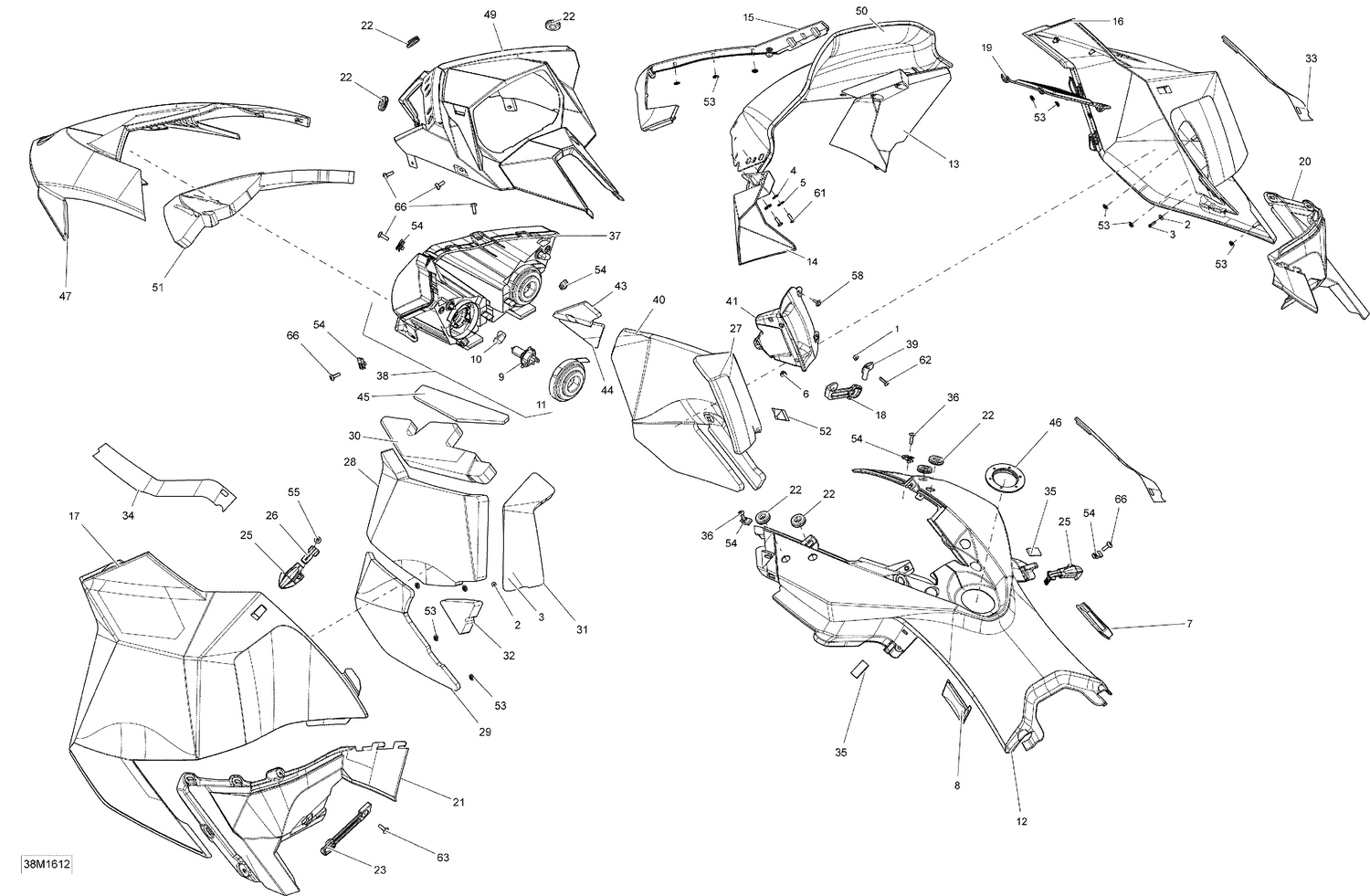

09- Hood
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 2 | 234042600 | Flat Washer 4 mm, Stainless |
| 3 | 241141660 | Hex. Flange Screw K40 X 16 |
| 4 | 250200024 | Rubber Washer 5 mm |
| 5 | 250200025 | Washer M5 |
| 6 | 275500241 | Black, Cap |
| 7 | 513033471 | RH Panel Clip |
| 8 | 513033472 | LH Panel Clip |
| 9 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 10 | 515176498 | Cap |
| 11 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 12 | 517305274 | White Console |
| 13 | 517303604 | RH Air Deflector |
| 14 | 517303605 | LH Air Deflector |
| 15 | 517303607 | Windshield Support |
| 16 | 517304029 | Deep Black, RH Panel |
| 17 | 517304030 | Deep Black, LH Panel |
| 18 | 517303612 | RH Panel Latch |
| 19 | 517303622 | Grille |
| 20 | 517303671 | Deep Black RH Moulding Panel |
| 21 | 517303673 | Deep Black, LH Moulding Panel |
| 22 | 517303756 | Grommet |
| 23 | 517303808 | LH Panel Latch |
| 25 | 860200239 | Black Latch Kit |
| 26 | 517303981 | Panel Latch |
| 27 | 517304884 | RH Panel Rear Foam |
| 28 | 517304887 | LH Panel Center Foam |
| 29 | 517304888 | LH Panel Lower Foam |
| 30 | 517304889 | LH Panel Upper Foam |
| 31 | 517304890 | LH Panel Rear Foam |
| 32 | 517304891 | Foam |
| 33 | 517304103 | RH Decal |
| 34 | 517304104 | LH Decal |
| 35 | 517304105 | Console Decal |
| 36 | 250000705 | Torx Truss Screw M6 X 20 |
| 37 | 517304194 | RH Headlamp Ass'y |
| 38 | 517304195 | LH Headlamp Ass'y |
| 39 | 517304221 | Latch Support |
| 40 | 517304883 | RH Center Foam |
| 41 | 517304322 | Black, RH Console |
| 43 | 517304885 | Foam |
| 44 | 517304886 | Foam |
| 45 | 517304882 | Foam |
| 46 | 517304518 | Console Nut |
| 47 | 517304492 | White Hood |
| 49 | 517304578 | Gauge Support |
| 50 | 517304766 | Windshield 450 |
| 51 | 517304913 | Hood Foam |
| 52 | 517305451 | Heat Shield |
| 53 | 732610072 | Push Nut |
| 54 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 55 | 250000721 | Torx Truss Screw M6 X 16 |
| 58 | 250000725 | Screw M4 X 16 |
| 61 | 250000720 | Torx Screw K50 X 16 |
| 62 | 250000705 | Torx Truss Screw M6 X 20 |
| 62 | 250000792 | Torx Screw M5 X 20 |
