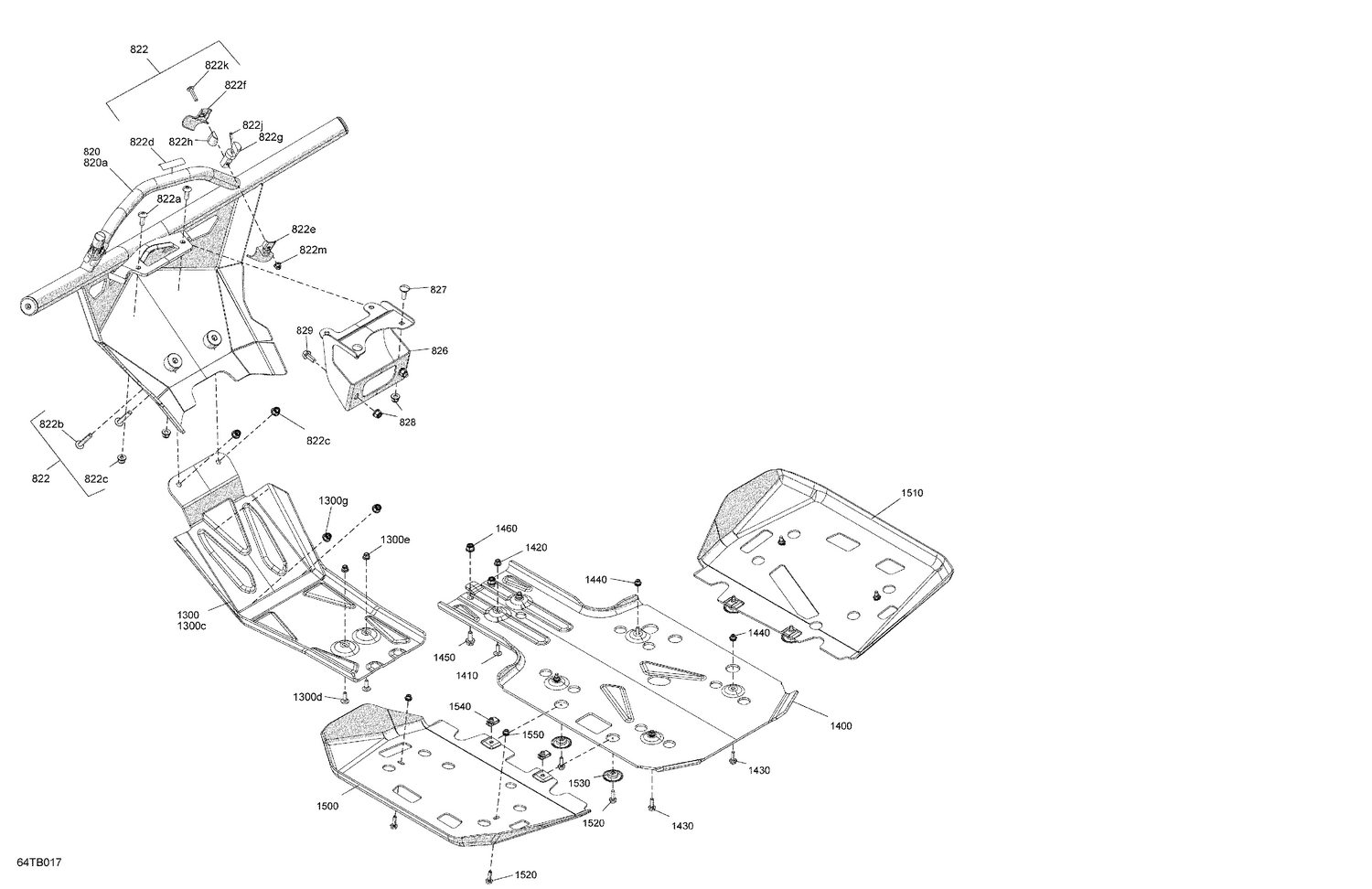

07- Body - Skid Plate and Bumper
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 820 | 715007687 | Front Bumper Ass'y |
| 822a | 250000874 | Torx Truss M8 X 25 |
| 822b | 250000761 | Torx Truss Screw M8 X 50 |
| 822c | 233281414 | Hex. Flange Elastic Nut M8 |
| 822d | 704906938 | Warning Decal Bumper |
| 822e | 705018280 | Hyper Silver, LH Mounting Clamp This part replaces 705016604. |
| 822f | 705018287 | Hyper Silver, RH Mounting Clamp This part replaces 705016605. |
| 822g | 705016578 | End Piece |
| 822h | 705016579 | Sliding Block |
| 822j | 206252044 | Socket Set Screw M5 X 20 |
| 822k | 250000842 | Stainless, Torx Screw M6 X 30 |
| 822m | 233261494 | Hex. Flange Elastic Nut M6 |
| 826 | 705012722 | Bumper Support |
| 827 | 207782544 | Carriage Bolt, M8 X 25 |
| 828 | 233281414 | Hex. Flange Elastic Nut M8 |
| 829 | 207682544 | Hex. Flange Screw M8 X 25 |
| 1300c | 715000926 | Front Skid Plate |
| 1300d | 207762044 | Carriage Bolt M6 X 20 |
| 1300e | 233261434 | Flange Elastic Nut M6 |
| 1300g | 233281414 | Hex. Flange Elastic Nut M8 |
| 1400 | 705204031 | Central Skid Plate |
| 1410 | 207762044 | Carriage Bolt M6 X 20 |
| 1420 | 233261434 | Flange Elastic Nut M6 |
| 1430 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1440 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1450 | 207682544 | Hex. Flange Screw M8 X 25 |
| 1460 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1500 | 705010659 | LH Skid Plate |
| 1510 | 705010660 | RH Skid Plate |
| 1520 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1530 | 705007171 | Cup |
| 1540 | 250100198 | Panel Nut M6 X 1.0 |
