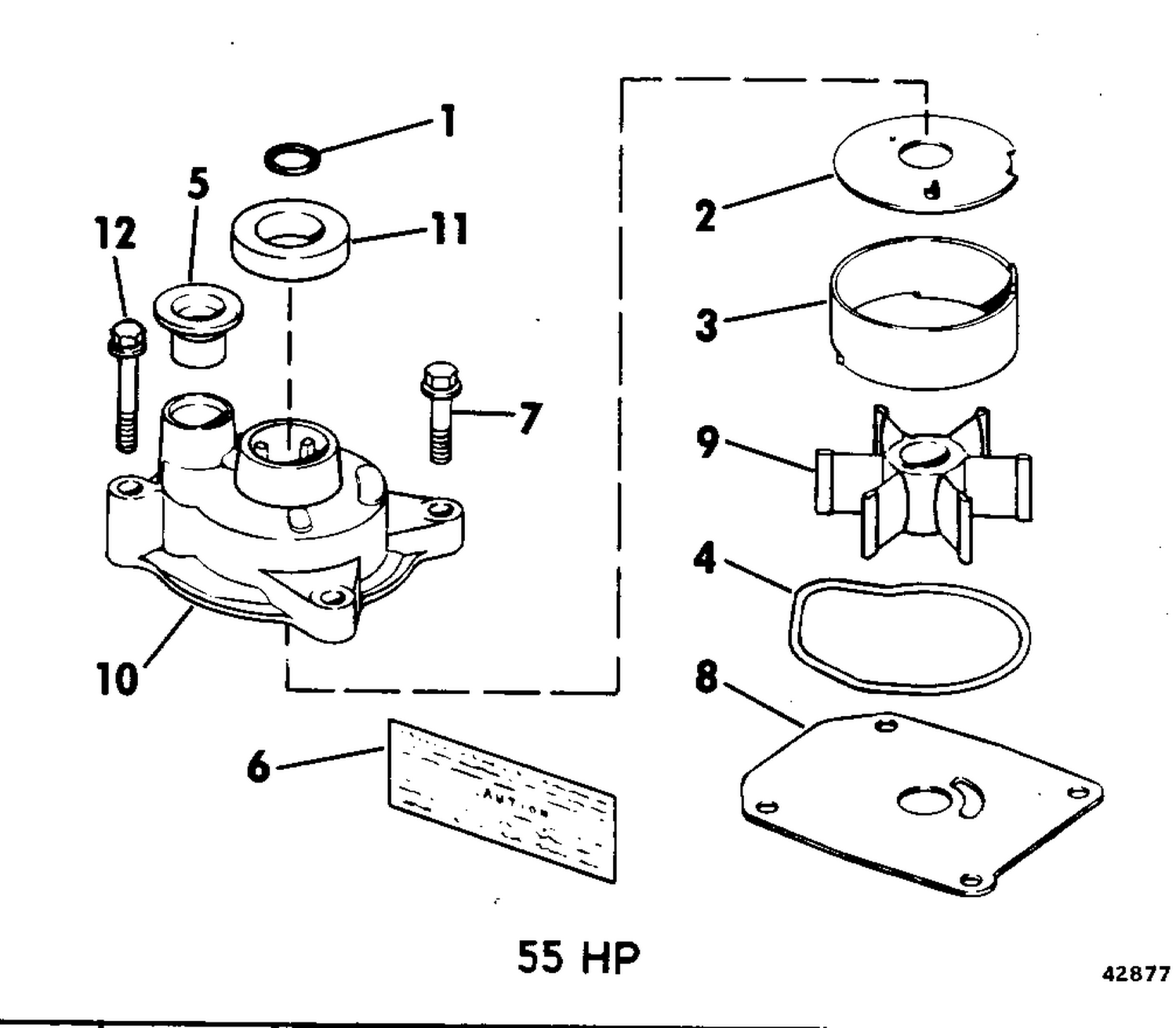

CHROME PUMP KITS 55 H.P.
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0315746 | PLATE LINER |
| 3 | 0315747 | LINER, Impeller housing |
| 4 | 0315788 | SEAL, Impeller housing |
| 5 | 0315837 | GROMMET, Water tube |
| 6 | 0316349 | TRANSFER, Caution |
| 7 | 0909533 | SCREW, Pressure relief valve cover This part replaces 0316357. |
| 8 | 0316693 | PLATE, Impeller housing |
| 9 | 0377230 | IMPEELER ASSEMBLY |
| 10 | 0384087 | IMPELELR HSG., Gearcase |
| 0384752 | 0384752 | CHROME PUMP KIT |
