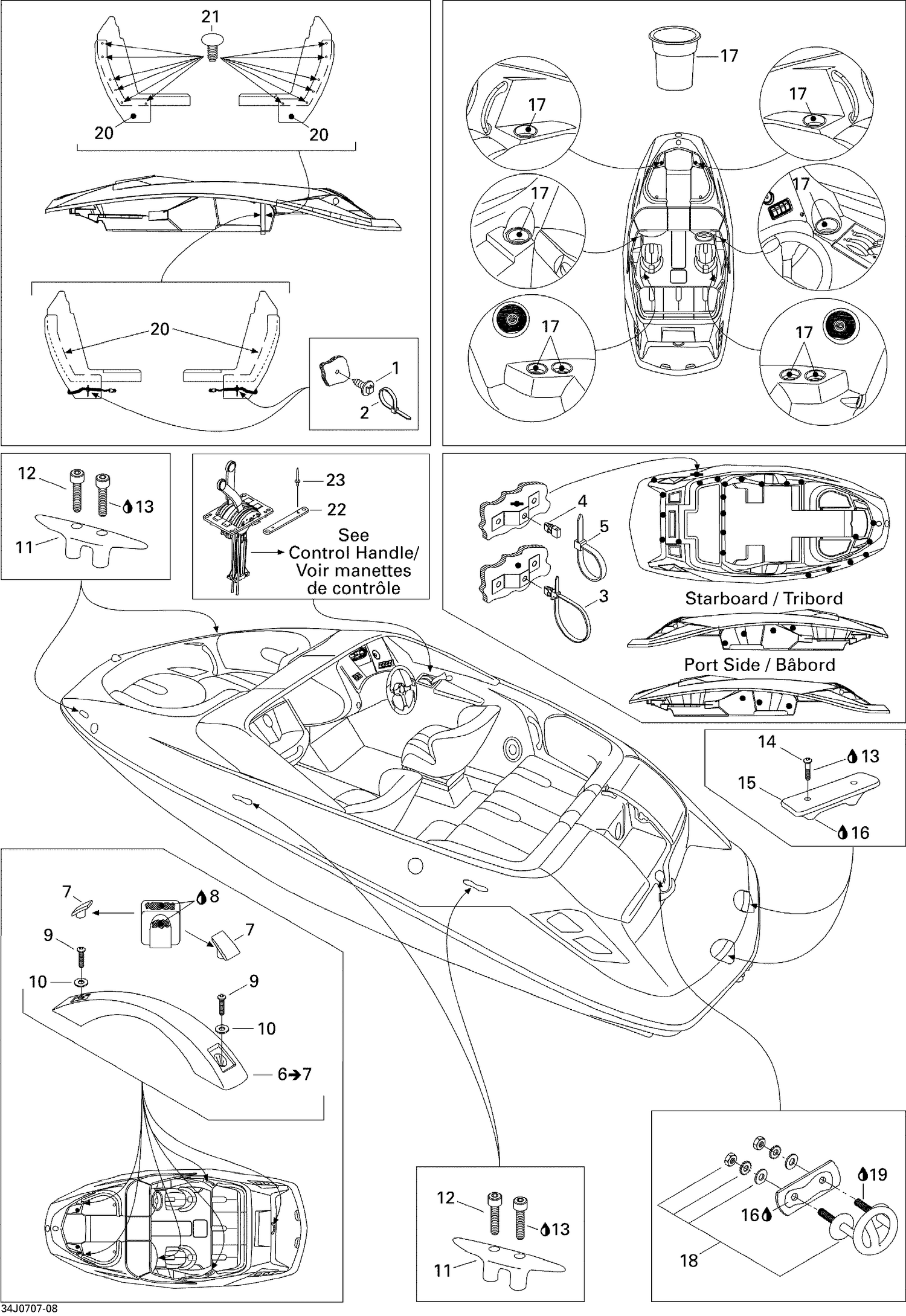

| Ref | Part Number | Description |
|---|
| 1 |
293730040 |
Mount Dart |
| 2 |
414115200 |
Tie-Rap 180 mm |
| 3 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 4 |
204130099 |
DART, BLACK - Call your local BRP dealership |
| 5 |
293750008 |
Tie Wrap 368 mm |
| 7 |
204070056 |
Snap Cap |
| 9 |
205963060 |
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 10 |
234061600 |
Stainless Flat Washer M6 |
| 11 |
204070592 |
CLEAT - Call your local BRP dealership |
| 12 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 13 |
293800060 |
Loctite 243, 10 ml |
| 14 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 15 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 16 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 17 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 18 |
204070206 |
Ski Tow Hook |
| 19 |
293800005 |
Loctite 271, 10 ml |
| 20 |
204072117 |
Soundwall Seal |
| 21 |
293730014 |
Black Dart |
| 22 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
