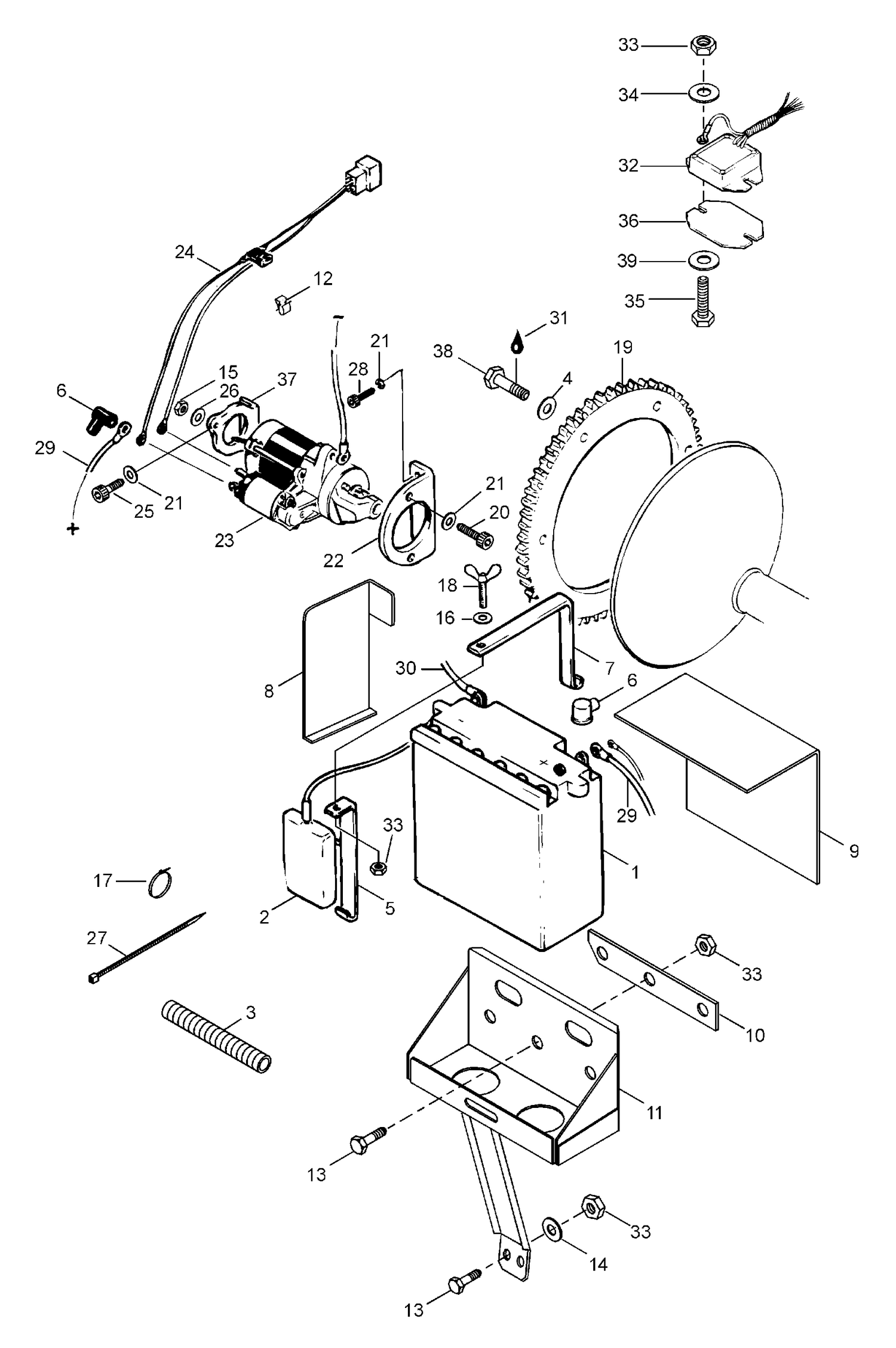

10- Electric Starter Kit
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 42200 | Battery YUASA YB16-B |
| 2 | 1461402 | Owerflow bottle |
| 3 | 28012 | Cable cover |
| 4 | 31081 | Shim |
| 5 | 547274 | Steel strip |
| 6 | 570151000 | Cable cover |
| 7 | 547273 | Steel strip |
| 8 | 537271 | Heat cover |
| 9 | 527272 | Rubber |
| 10 | 546264 | Rear support |
| 11 | 537248 | Support |
| 12 | 414227300 | Clip |
| 13 | 40029 | Screw M6x16 |
| 14 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 15 | 33009 | Nut elastic M5 |
| 16 | 20052 | Spring washer |
| 17 | 293750008 | Tie-Rap 368 mm This part replaces 27100. |
| 18 | 40108 | Screw M6x20 |
| 19 | 415043100 | Ring gear Z=86 |
| 20 | 40289 | Allen screw M8x25 |
| 21 | 20014 | Lock Washer |
| 22 | 420951415 | STARTER BRACKET, P.T.O. - Call your local BRP dealership |
| 23 | 410212400 | ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 24 | 5440682 | Cable |
| 25 | 40066 | Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 26 | 20008 | Washer |
| 27 | 414115200 | Tie-Rap 180 mm This part replaces 27026. |
| 28 | 40305 | Allen screw M8x20 |
| 29 | 5440661 | Cable, + |
| 30 | 5440660 | Cable, - |
| 31 | 293800005 | Loctite 271 (10 ml) This part replaces 413707400. |
| 32 | 549264 | Rectifier |
| 33 | 33010 | Lock Nut M6 (1=10Pcs) |
| 34 | 20003 | Washer |
| 35 | 40030 | Screw M6x20 |
| 36 | 544741 | Cooling plate |
| 37 | 420951426 | STARTER BRACKET, M.A.G. - Call your local BRP dealership |
| 38 | 236281684 | Hex. Screw M8 X 16 This part replaces 732601246. |
