| Ref | Part Number | Description |
|---|
| 1 |
0383973 |

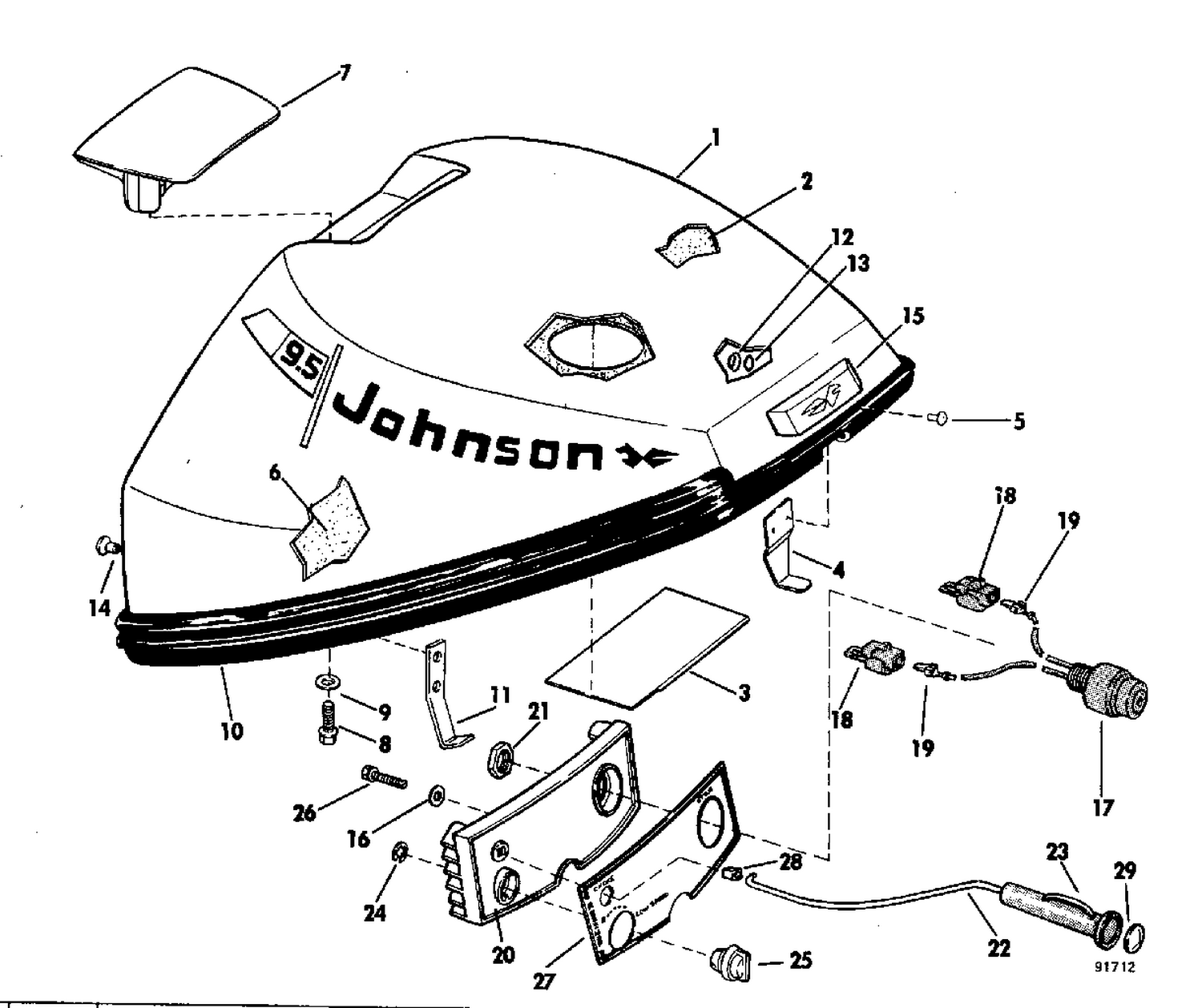

MOTOR COVER ASSEMBLY COMPLETE |
| 2 |
0310101 |
SOUND BLANKET, Top |
| 3 |
0314595 |
CASE, Owner card |
| 4 |
0309869 |
HOOK, Front |
| 6 |
0310102 |
SOUND BLANKET, Side |
| 7 |
0381165 |
TILT HAND & SCREW ASSY |
| 8 |
0312299 |
VIS, serre-câble |
| 9 |
0306407 |
LOCCKWASHER,Cover latch |
| 10 |
0314757 |
SEAL MOTOR COVER |
| 11 |
0312199 |
HOOK, Rear |
| 13 |
0314303 |
O RING |
| 14 |
0315705 |
RIVERT,Rear hook |
| 15 |
0315563 |
APPLIQUE, Motor cover front |
| 17 |
0379638 |
SHORTENING SWITCH ASSY |
| 20 |
0315792 |
CONTROL PANEL |
| 22 |
0383985 |
CHOKE KNOB AND ROD |
| 23 |
0312482 |
SPRING, Choke knob |
| 25 |
0314958 |
ADJUSTING KNOB, Slow speed |
| 26 |
0312299 |
VIS, serre-câble |
| 27 |
0315564 |
PLATE, Control panel |
| 28 |
0320731 |
BUSHING, Choke knob This part replaces 0204450. |
| 29 |
0315521 |
INSERT |
| 0384382 |
0384382 |
DECAL SET |
