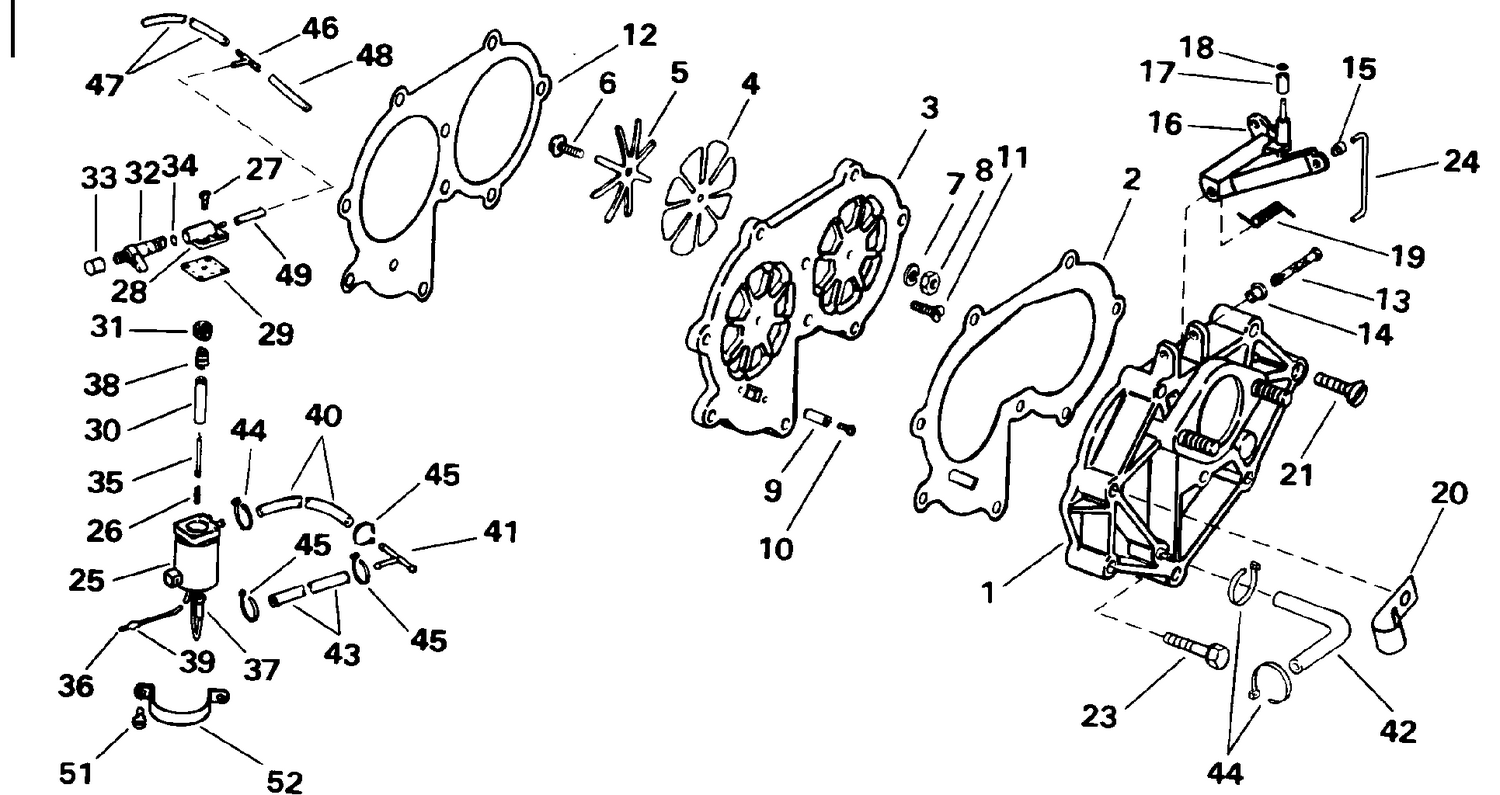

| Ref | Part Number | Description |
|---|
| 1 |
0396788 |
MANIFOLD, Intake |
| 1 |
0396790 |
MANIFOLD, Intake |
| 1 |
0431628 |
MANIFOLD, Intake |
| 1 |
0431725 |
MANIFOLD, Intake |
| 2 |
0326260 |
GASKET, Manifold |
| 11 |
0307609 |
SCREW |
| 12 |
0321479 |
GASKET, Plate to crankcase |
| 13 |
0331449 |
PIN, Cam follower |
| 15 |
0313329 |
LOCKWASHER, Carburetor link |
| 16 |
0396154 |
CAM FOLLOWER |
| 17 |
0305232 |
ROLLER, Cam foller |
| 18 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 19 |
0320157 |
RETAINING RING, Roller |
| 20 |
0330151 |
CLAMP, Harness to oil tank boss |
| 21 |
0304294 |
SCREW Manifold to crankcase |
| 23 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 24 |
0330227 |
LINK, Carb to cam follower |
| 25 |
5007356 |
Kit Ay This part replaces 0437237. |
| 40 |
HOSE, |
Fuel tee to primer, 3 in. (76mm) |
| 42 |
HOSE, |
Manifold to bypass cover, 12 in. (305mm |
| 43 |
HOSE, |
Fuel tee to carb., 6 1/4 in. (159mm) |
| 45 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 46 |
0325569 |
T, amorçage |
| 47 |
HOSE, |
Primer tee to carb., 8 in. (203mm) |
| 48 |
HOSE, |
Tee to manifold, 2 1/4 in. (57mm) |
| 49 |
HOSE, |
Primer to tee, 5 in. (127mm) |
| 51 |
0329594 |
SCREW, Cam follower |
| 0437712 |
0437712 |
LEAF PLATE ASSEMBLY |
