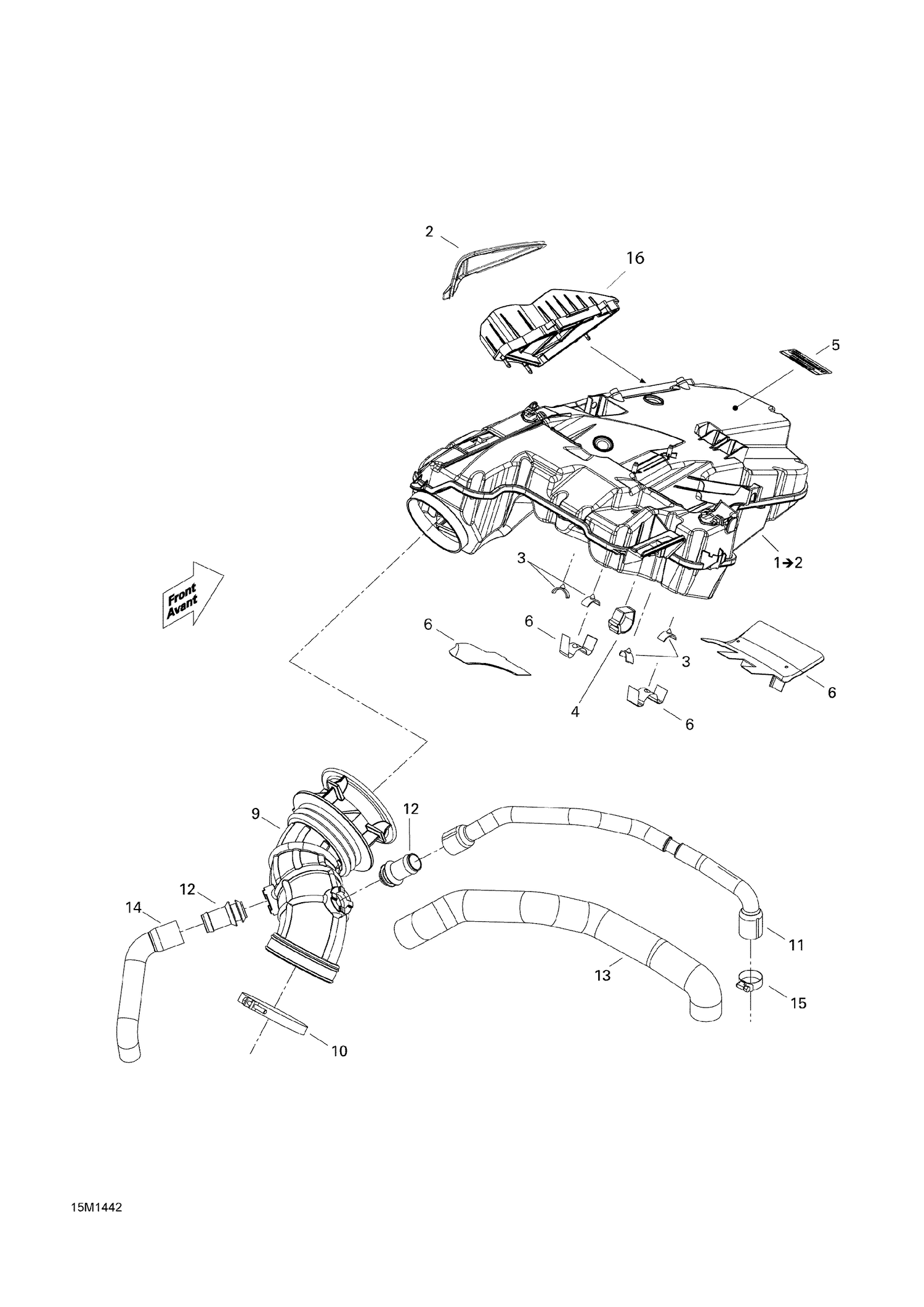

| Ref | Part Number | Description |
|---|
| 1 |
508000789 |
Secondary Chamber Ass'y This part replaces 508000693. |
| 2 |
508000609 |
Air Filter |
| 3 |
508000537 |
Stopper |
| 4 |
508000820 |
Velcro Strip This part replaces 508000532. |
| 5 |
516004651 |
Caution Label, Air Intake |
| 6 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 7 |
508000616 |
FORMED HOSE - Call your local BRP dealership |
| 8 |
293650172 |
Tridon Gear Clamp |
| 9 |
508000549 |
INTAKE HOSE - Call your local BRP dealership |
| 10 |
508000346 |
Gemi Clamp |
| 11 |
508000615 |
VENT HOSE - Call your local BRP dealership |
| 12 |
273000234 |
Breather Valve |
| 13 |
508000648 |
Tube Isolator |
| 14 |
508000616 |
FORMED HOSE - Call your local BRP dealership |
| 15 |
293650172 |
Tridon Gear Clamp |
