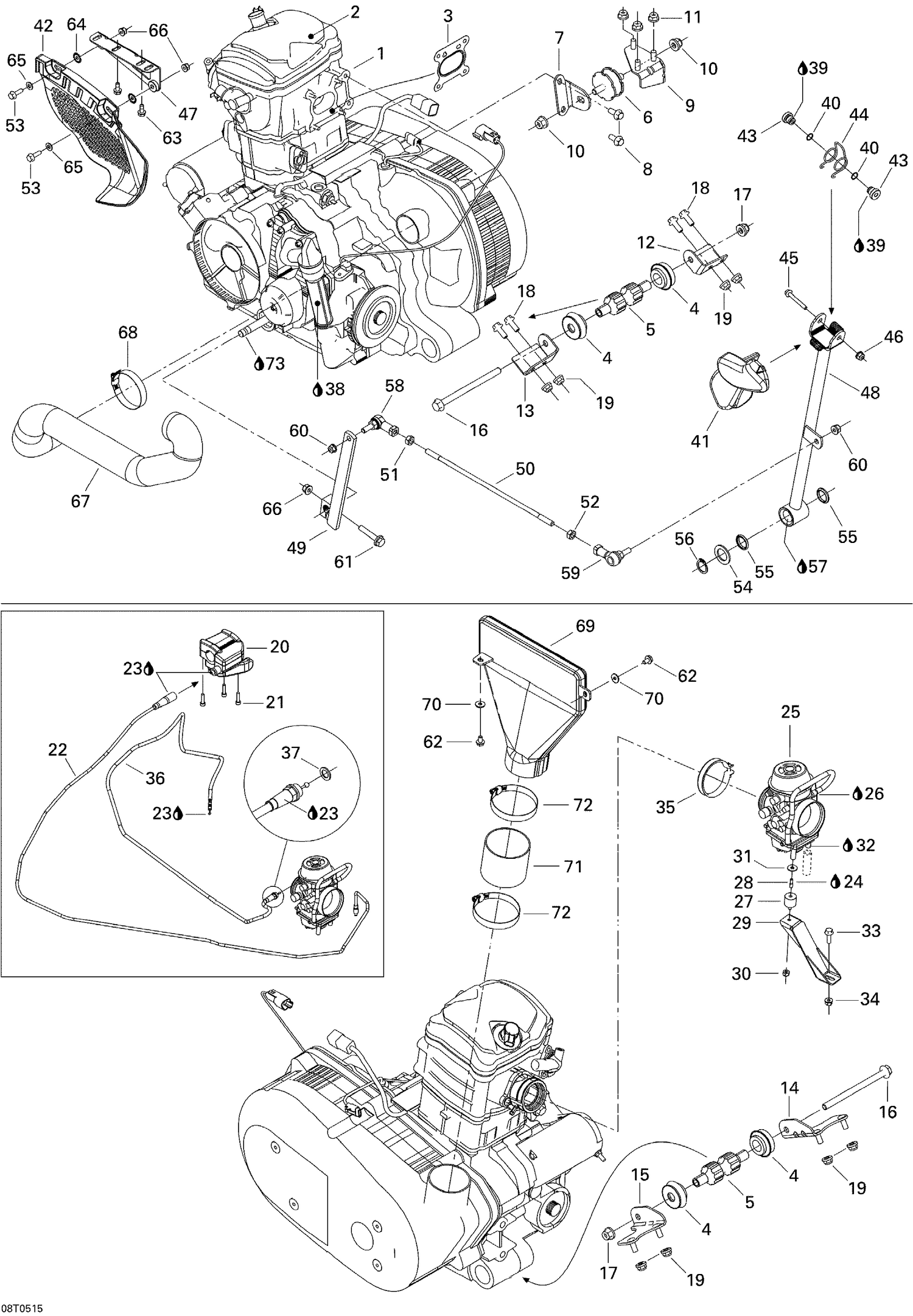

| Ref | Part Number | Description |
|---|
| 1 |
707000358 |
Rotax 4 Stroke Engine «610» |
| 2 |
420660201 |
Valve Cover |
| 3 |
420950680 |
GASKET - Call your local BRP dealership |
| 4 |
707000094 |
Anti-Vibration Mount |
| 5 |
707000019 |
ENGINE SUPPORT BUSHING - Call your local BRP dealership |
| 6 |
707000174 |
RUBBER MOUNT - Call your local BRP dealership |
| 7 |
707000159 |
Engine Support, Black |
| 8 |
207581646 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 9 |
707000161 |
Engine Bracket |
| 10 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 12 |
707000132 |
LH FRONT ENGINE BRACKET, BLACK - Call your local BRP dealership |
| 13 |
707000101 |
RH Front Engine Bracket, Black |
| 14 |
707000207 |
RH Rear Engine Bracket |
| 15 |
707000210 |
LH Rear Engine Bracket |
| 16 |
230604044 |
Hex. Flange Screw M10 X 140 |
| 17 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 18 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 19 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 20 |
707000370 |
THROTTLE HANDLE - Call your local BRP dealership |
| 21 |
205052588 |
Socket Head Screw M5 X 25 |
| 22 |
707000311 |
THROTTLE CABLE - Call your local BRP dealership |
| 23 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
707200186 |
CARBURATOR BSR42-8 - Call your local BRP dealership |
| 26 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 27 |
707000248 |
Anti-vibration Mount |
| 28 |
707000250 |
THREADED INSERT - Call your local BRP dealership |
| 29 |
707000252 |
CABURETOR SUPPORT - Call your local BRP dealership |
| 30 |
212000006 |
HEX. ELASTIC STOP NUT - Call your local BRP dealership |
| 31 |
391301600 |
Washer |
| 32 |
413708300 |
Glue Tube, Loctite 454, 20 G |
| 33 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 34 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 35 |
293650157 |
Gemi Clamp |
| 36 |
707000334 |
Choke Cable |
| 37 |
293300075 |
O-RING - Call your local BRP dealership |
| 38 |
Not |
Available As Spare Part - Engine Oil, Mineral, Api Sj Sae 10w40 |
| 39 |
293550010 |
Synthetic Grease, 400 G |
| 40 |
293300081 |
O-RING - Call your local BRP dealership |
| 41 |
705500282 |
SHIFTER HANDLE - Call your local BRP dealership |
| 42 |
707000139 |
Transmission Guide |
| 43 |
707000205 |
PIVOT SLEEVE - Call your local BRP dealership |
| 44 |
705500283 |
LEVER SPRING - Call your local BRP dealership |
| 45 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 46 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 47 |
707000297 |
Guide Support, Black |
| 48 |
707000335 |
LOWER LEVER, BLACK - Call your local BRP dealership |
| 49 |
707000338 |
Lower Lever, Black |
| 50 |
707000343 |
THREADED ROD - Call your local BRP dealership |
| 51 |
232061414 |
Hex. Nut M6 |
| 52 |
232066414 |
LH HEX. NUT M6 - Call your local BRP dealership |
| 53 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 54 |
503107800 |
WASHER - Call your local BRP dealership |
| 55 |
293300053 |
O-RING - Call your local BRP dealership |
| 56 |
293370012 |
CIRCLIP - Call your local BRP dealership |
| 57 |
293550010 |
Synthetic Grease, 400 G |
| 58 |
707000142 |
RH BALL JOINT - Call your local BRP dealership |
| 59 |
707000545 |
LH BALL JOINT - Call your local BRP dealership This part replaces 707000143. |
| 60 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 61 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 62 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 63 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 64 |
250200041 |
Lock Washer Serrated M6 |
| 65 |
250200082 |
Flat Washer This part replaces 391302000. |
| 66 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 67 |
707000332 |
Air Intake |
| 68 |
293650023 |
Tridon Clamp |
| 69 |
707000153 |
Exhaust |
| 70 |
224061201 |
Flat Washer |
| 71 |
707000154 |
FLEXIBLE ADAPTOR - Call your local BRP dealership |
| 72 |
293650064 |
Tridon Clamp |
