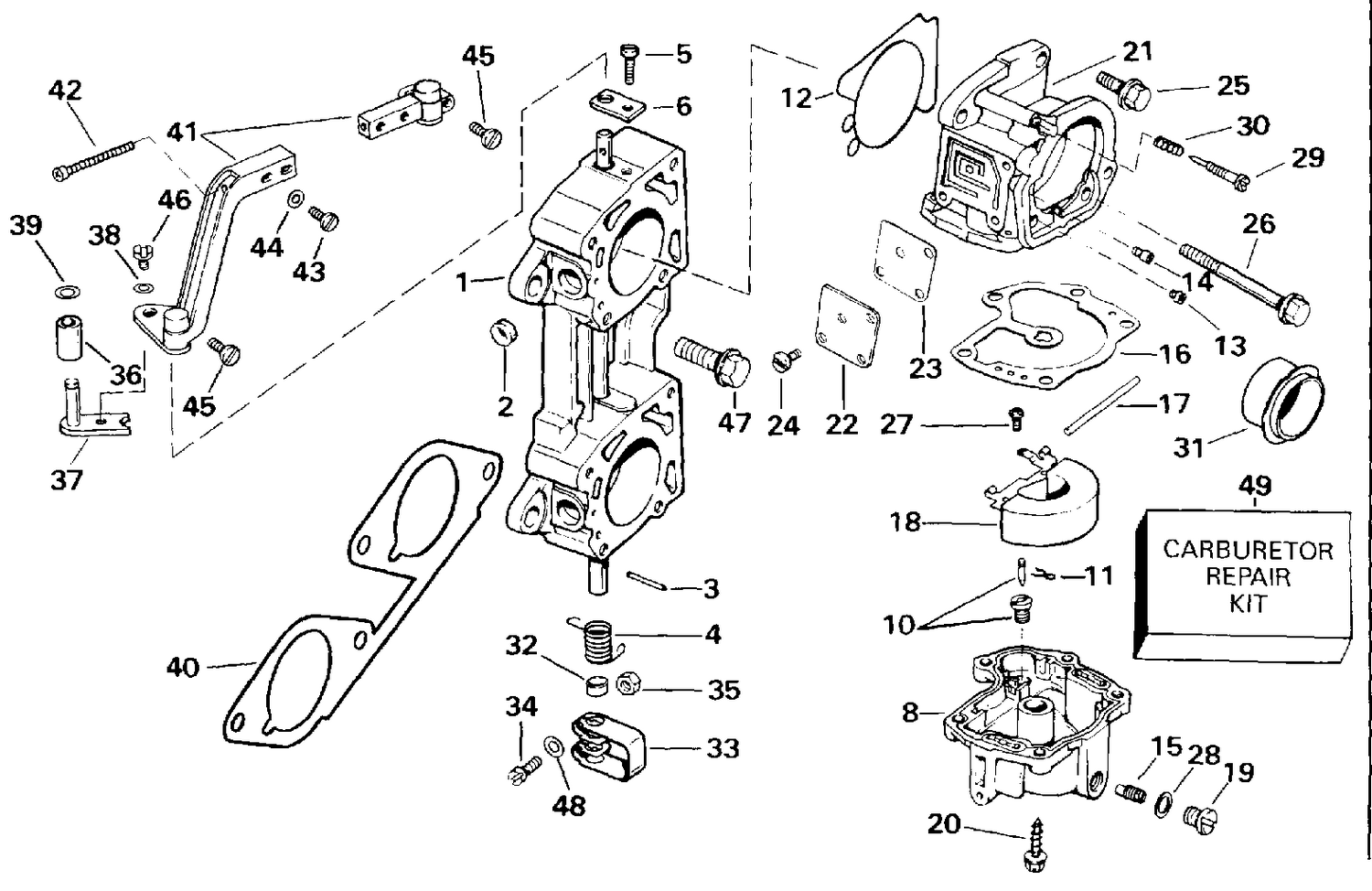

| Ref | Part Number | Description |
|---|
| 1 |
0397581 |
THROTTLE BODY ASSY. |
| 1 |
0436139 |
THROTTLE BODY ASSY. |
| 11 |
0336842 |
CLIP, SPRING |
| 12 |
0332253 |
REAL,Carb. body, 300 |
| 14 |
0325829 |
HIGH SPEED ORIFICE, No. 42 |
| 14 |
0328536 |
ORIFICE #73 |
| 21 |
0436014 |
CARB. BODY |
| 22 |
0335647 |
COVER PLATE |
| 23 |
0335648 |
GASKET, Cover plate |
| 26 |
0335223 |
VIS, poignée vers capot bâbord/tribord |
| 29 |
0341300 |
NEEDLE VALVE |
| 30 |
0340001 |
SPRING, Needle valve |
| 32 |
0317162 |
BUSHING, Link |
| 33 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0327071. |
| 34 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0337041. |
| 36 |
0432639 |
GALET, contre-came |
| 37 |
0432640 |
LEVER & PIN, Cam follower |
| 39 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 40 |
0332319 |
GASKET, Carburetor mounting |
| 41 |
0435908 |
LINK, Carburetor |
| 42 |
0335229 |
SCREW, Bracket to crkc. cover This part replaces 0337540. |
| 45 |
0339286 |
SCREW, Belcrank |
| 46 |
0335739 |
SCREW, Conn. brkt. to mntg. brkt. |
| 0436545 |
0436545 |
CARBURETOR ASSEMBLY, 300 |
| 0436546 |
5001043 |
CARBURETOR ASSY., Upper This part replaces 0436546. |
