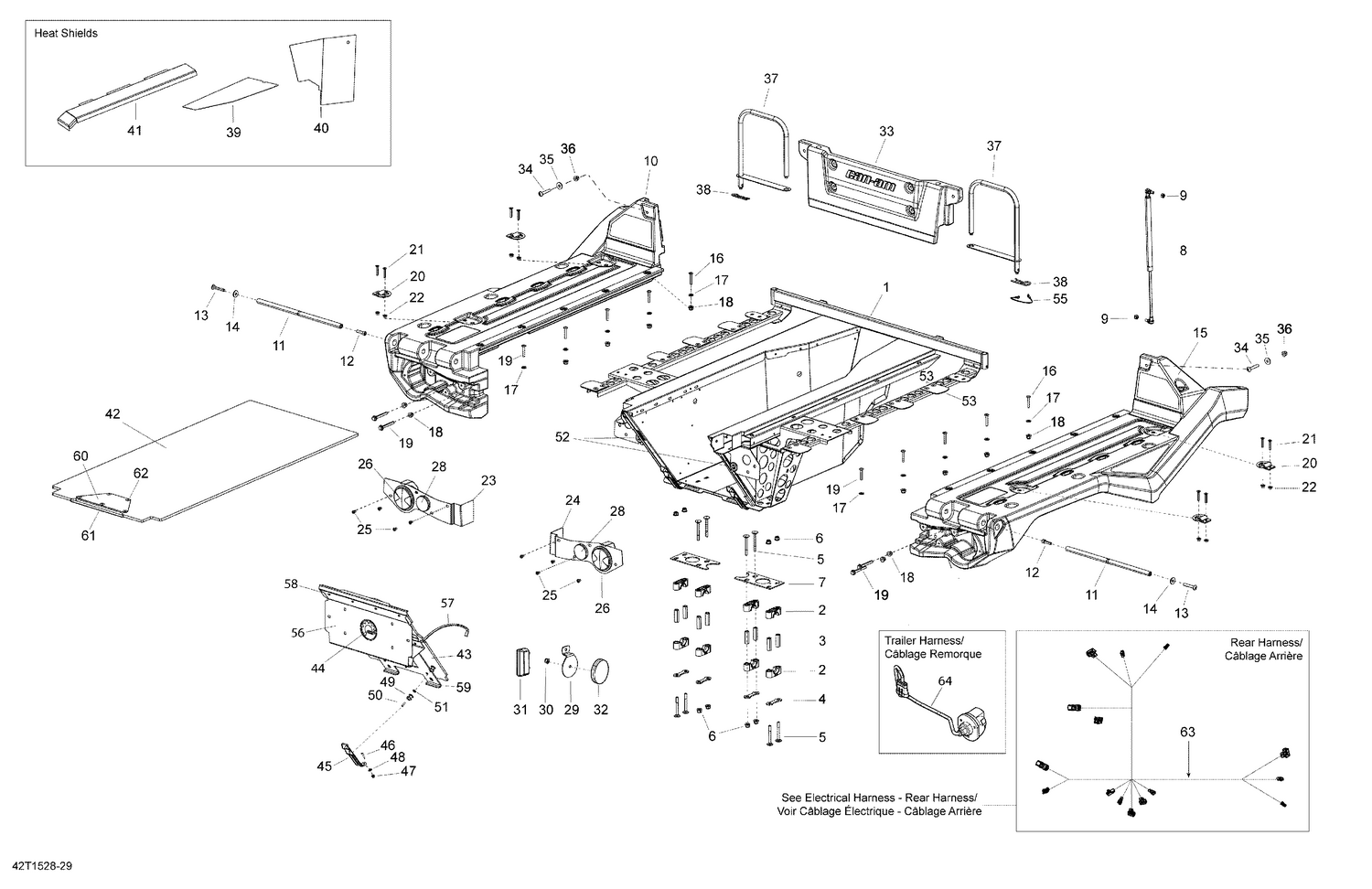

09- Rear Cargo Box _42T1529
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605156657 | METAL PLATFORM PAINTED - Call your local BRP dealership |
| 2 | 506150400 | Housing Half |
| 3 | 506150500 | Housing Bushing |
| 4 | 506150600 | Stopper Plate |
| 5 | 207787044 | Carriage Bolt M8 X 70 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 705203836 | Cargo Box Hinges Reinforcement Plate |
| 8 | 708301058 | Cargo Box Gas Shock |
| 9 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | 708300935 | Hinge Axis |
| 12 | 205083044 | Socket Head Screw M8 X 30 |
| 13 | 250000761 | Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 14 | 234082670 | Stainless Steel Flat Washer |
| 16 | 205484056 | Torx Truss M/S M8 X 40 |
| 17 | 234081410 | Flat Washer 8 mm |
| 18 | 233281414 | Hex. Flange Elastic Nut M8 |
| 19 | 207686544 | Hex. Flange Screw, M8 X 65 |
| 20 | 708301189 | Retaining Hook |
| 21 | 205363586 | Socket Screw M6 X 35 |
| 22 | 233061414 | Hex. Flange Nut M6 |
| 25 | 250000436 | Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 26 | 710001645 | Tail Light Ass'y |
| 28 | 705011221 | Red Reflector This part replaces 705002408. |
| 29 | 708301538 | LH Reflector Support |
| 29 | 708301539 | RH Reflector Support |
| 30 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 31 | 710002055 | License Light |
| 33 | 708302081 | Black, Front Panel Short This part replaces 708301187. |
| 34 | 250000761 | Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 35 | 234082670 | Stainless Steel Flat Washer |
| 36 | 233281414 | Hex. Flange Elastic Nut M8 |
| 37 | 708300939 | Locking Handle Weld |
| 38 | 41029 | Hair pin |
| 39 | 708301336 | Bed Heat Shield On Top |
| 40 | 708301337 | Bed Heat Shield On Side |
| 41 | 708301338 | Side Heat Shield |
| 42 | 708300959 | Middle Deck |
| 43 | 708300964 | Lower Tailgate |
| 44 | 219902672 | BRP Logo 68 mm |
| 45 | 5342952 | Hood Latch |
| 46 | 207142544 | Hex. Screw M4 X 25 |
| 47 | 232541484 | Elastic Stop Nut M4 |
| 48 | 20037 | Washer |
| 49 | 605449087 | Counter Roller |
| 50 | 293150212 | Rivet |
| 51 | 517124300 | Washer |
| 52 | 517303756 | Grommet |
| 53 | 708301095 | Linq Hole Filler |
| 55 | 293750069 | Retainer Cable |
| 56 | 708300965 | Register Plate Support |
| 57 | 708301213 | Limiter Rail |
| 58 | 293150144 | Stavex Rivet |
| 59 | 708301261 | Limiter Hook |
| 61 | 708301263 | Handle Plate |
| 62 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 63 | 515177565 | Rear Light Harness |
