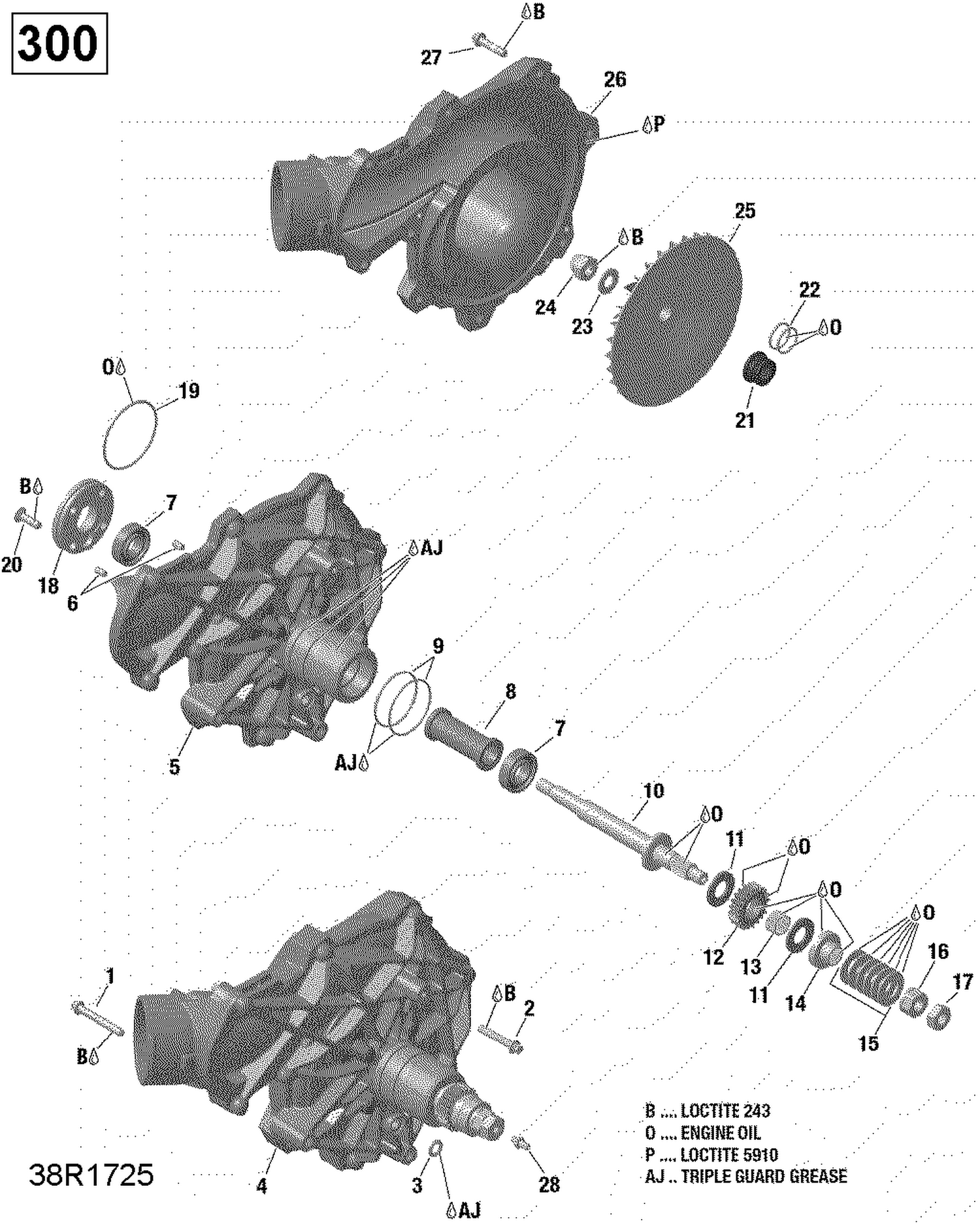

| Ref | Part Number | Description |
|---|
| 1 |
420641198 |
Torx Flange Screw M6 X 45 |
| 2 |
420641258 |
Torx Flange Screw M6 X 35 |
| 3 |
420950860 |
O-Ring |
| 4 |
420490670 |
Supercharger Ass'y This part replaces 420893566. |
| 5 |
Not |
Available As Spare Part - Compressor Baseplate |
| 6 |
Not |
Available As Spare Part - Drive Pin M5 X 10 |
| 7 |
Not |
Available As Spare Part - Ball Bearing |
| 8 |
Not |
Available As Spare Part - Spacer |
| 9 |
420650270 |
O-Ring |
| 10 |
Not |
Available As Spare Part - Compressor Shaft |
| 11 |
Not |
Available As Spare Part - Friction Washer |
| 12 |
Not |
Available As Spare Part - Drive Gear, 20 Teeth |
| 13 |
Not |
Available As Spare Part - Needle Bearing |
| 14 |
Not |
Available As Spare Part - Lock Washer |
| 15 |
Not |
Available As Spare Part - Spring Washer |
| 16 |
Not |
Available As Spare Part - Nut |
| 17 |
Not |
Available As Spare Part - Hexagonal Nut M10 |
| 18 |
Not |
Available As Spare Part - Retaining Disc |
| 19 |
Not |
Available As Spare Part - O-Ring |
| 20 |
Not |
Available As Spare Part - Hexalobular Countersunk Screw M6 X 20 |
| 21 |
Not |
Available As Spare Part - Step Collar |
| 22 |
Not |
Available As Spare Part - Gasket Ring |
| 23 |
Not |
Available As Spare Part - Shim |
| 24 |
Not |
Available As Spare Part - Cap Nut M10 |
| 25 |
Not |
Available As Spare Part - Compressor Impellor |
| 26 |
Not |
Available As Spare Part - Compressor Housing |
| 27 |
Not |
Available As Spare Part - Torx Flange Screw M6 X 25 |
