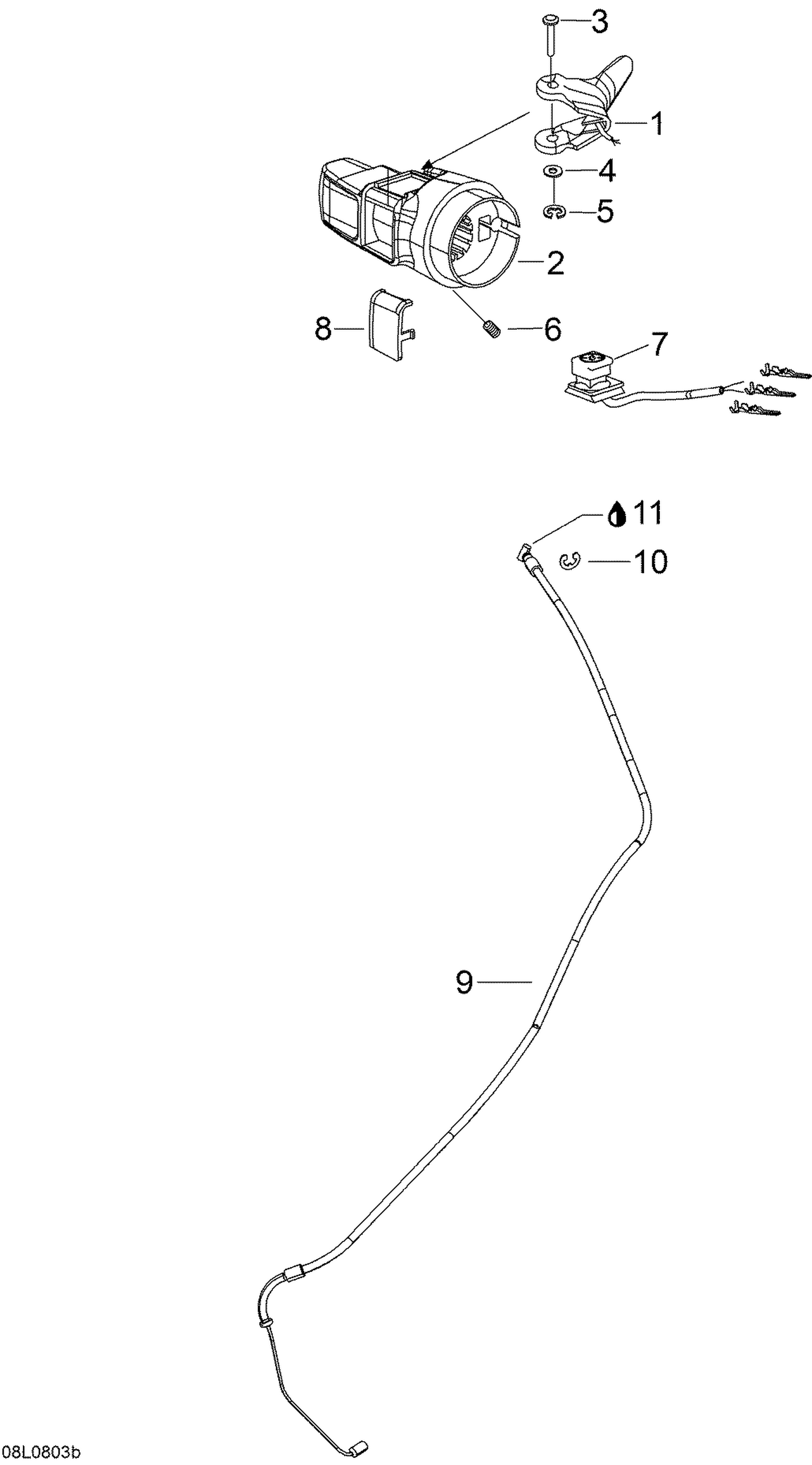

01- Throttle handle And Housing
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059624 | Throttle handle |
| 2 | 512059489 | THROTTLE HOUSING - Call your local BRP dealership |
| 3 | 414438700 | Lever pin |
| 4 | 234051600 | Washer |
| 5 | 414439000 | Circlip |
| 6 | 414440800 | Socket Set Screw M8 X 10 |
| 7 | 515175410 | Kill switch |
| 8 | 572100901 | Cover |
| 9 | 512059349 | THROTTLE CABLE - Call your local BRP dealership |
| 10 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
