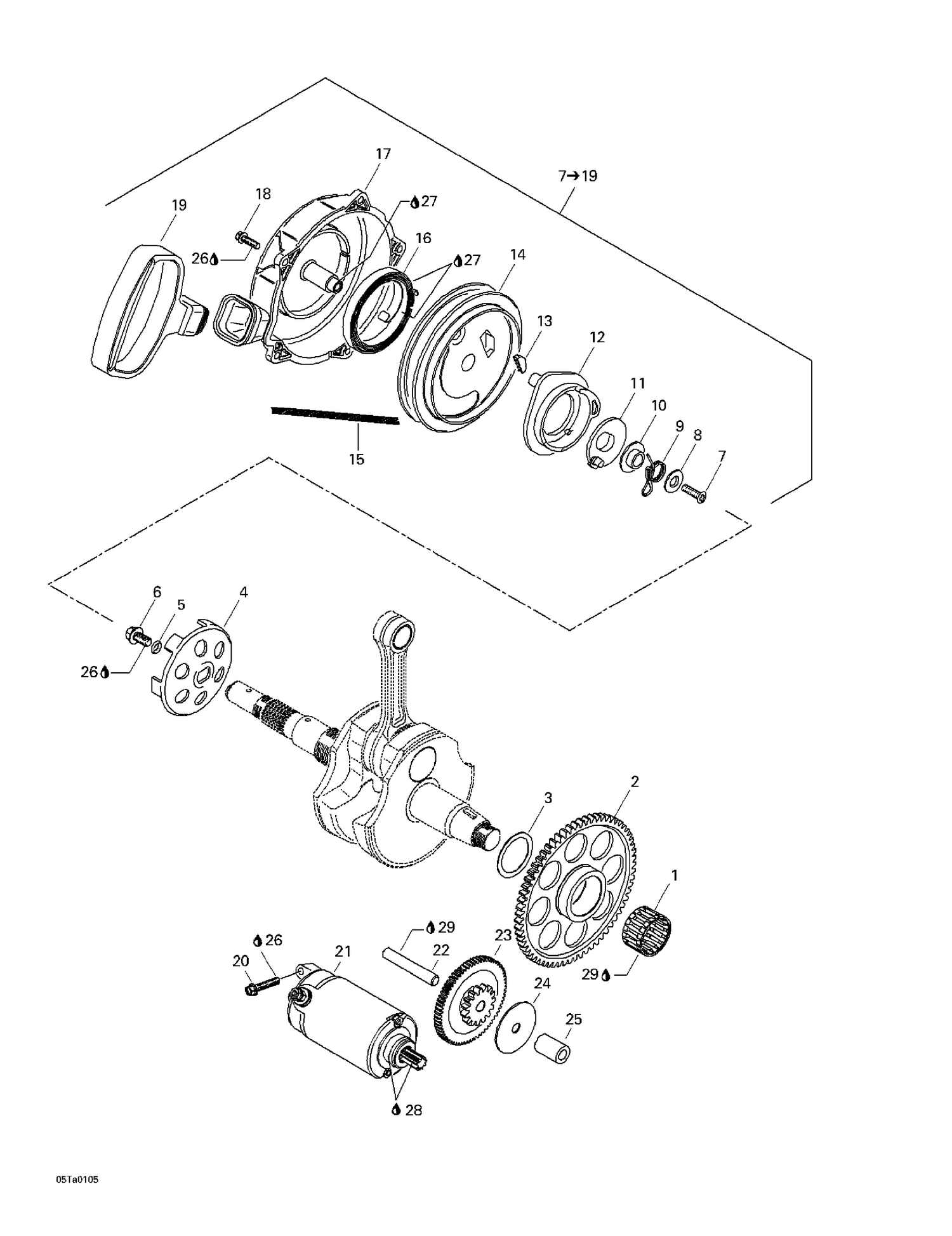

04- Rewind Starter, Electric Starter
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711632190 | Needle Cage |
| 2 | 711634940 | Ring Gear 65 Teeth |
| 3 | 711244290 | Thrust Washer |
| 4 | 420852501 | Starting Pulley This part replaces 711852501. |
| 5 | 711650710 | O Ring |
| 6 | 711241720 | Hex. Flange Screw M8 x 20 |
| 7 | 711241730 | Screw Plastite M6 x 20 |
| 8 | 420244320 | Flat Washer This part replaces 711244320. |
| 9 | 420938989 | Locking Spring This part replaces 711938989. |
| 10 | 420847927 | STAGE SLEEVE - Call your local BRP dealership This part replaces 711847927. |
| 11 | 420852306 | Lock Pawl This part replaces 711852306. |
| 12 | 420852299 | Pawl This part replaces 711852299. |
| 13 | 420852070 | Key Clamp |
| 14 | 420852283 | Rope Sheave |
| 15 | 219704403 | Was 412500100 Rope-Starter |
| 16 | 420939115 | Rewind Spring |
| 17 | 420610930 | Starter Rope Housing This part replaces 711211960. |
| 18 | 711241861 | Hex. Flange Screw M6 x 20 |
| 19 | 711852515 | Starting Grip |
| 20 | 711241941 | Hex. Flange Screw M6 x 30 |
| 21 | 420250130 | Oil Seal |
| 21 | 420250140 | O-Ring |
| 21 | 420266295 | BRUSH KIT - Call your local BRP dealership |
| 21 | 711296125 | Electric Starter Ass'y |
| 22 | 420229475 | Needle Pin This part replaces 711229470. |
| 23 | 711634970 | Double Gear 15/67 Teeth |
| 24 | 711227620 | Thrust Washer |
| 25 | 711847485 | Spacer |
| 26 | 293800060 | Loctite 243, 10 ml |
| 27 | 420899763 | Molykote PG 54, 10 g |
| 28 | 219704464 | Was 420297616 Klueber Grease, 60g |
