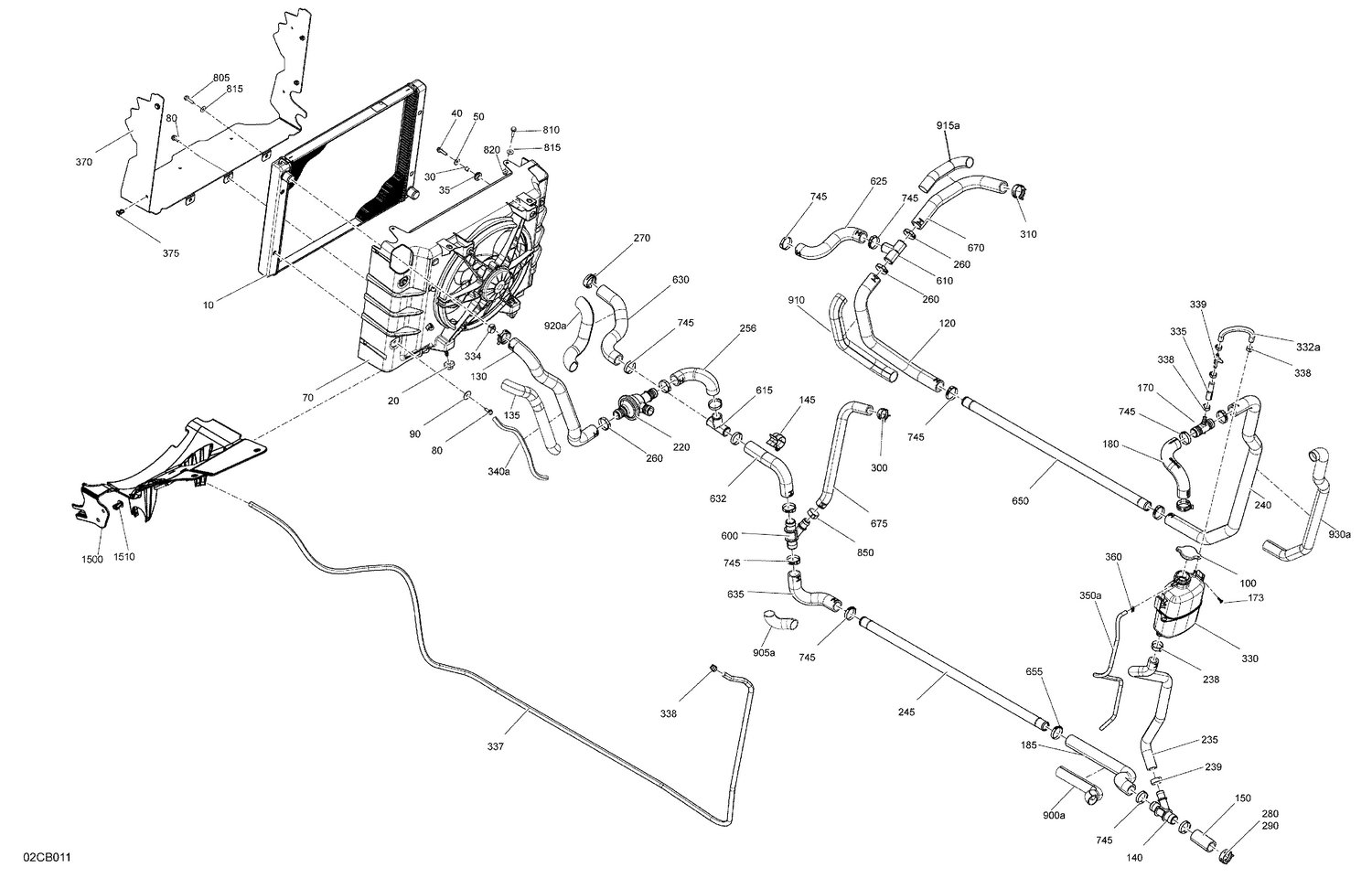

02- Engine - Cooling
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200829 | Radiator |
| 20 | 709200948 | Grommet |
| 30 | 293900105 | Bushing |
| 35 | 709000582 | Grommet |
| 40 | 207662544 | Hex. Flange Screw M6 X 25 |
| 50 | 234062410 | Flat Washer 6 mm |
| 70 | 709201287 | Cooling Fan Ass'y This part replaces 709200842. |
| 80 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 90 | 250200029 | Washer M6 |
| 100 | 709200207 | Radiator Pressure Cap |
| 120 | 709201438 | Formed T Fitting Hose This part replaces 709200973. |
| 130 | 709201443 | Formed Radiator Hose IN This part replaces 709201032. |
| 135 | 219704428 | Tubing 35 MM 1000MM Long |
| 140 | 509001200 | Y Fitting |
| 145 | 275500590 | Retainer |
| 150 | 709200299 | Hose |
| 170 | 509000510 | T-Fitting |
| 173 | 250000720 | Torx Screw K50 X 16 |
| 180 | 709200915 | Hose Engine Out |
| 185 | 709200971 | Hose |
| 220 | 709200986 | Thermostat Housing |
| 235 | 709201103 | Hose Coolant Tank Out |
| 238 | 293650165 | Oetiker Gear Clamp |
| 239 | 293650165 | Oetiker Gear Clamp |
| 240 | 709201446 | Formed T Fitting Hose This part replaces 709200969. |
| 245 | 709200658 | Heater Tubing |
| 256 | 709201439 | Formed Thermostat Hose OUT This part replaces 709201033. |
| 260 | 509000162 | Gear Clamp |
| 270 | 293650166 | Norma Spring Clamp |
| 280 | 293650166 | Norma Spring Clamp |
| 290 | 293650166 | Norma Spring Clamp |
| 300 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 310 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 330 | 709201323 | Coolant Tank This part replaces 709200998. |
| 332a | 219704416 | Was 415129508 Bleeder Hose |
| 334 | 293650042 | Oetiker Clamp |
| 335 | 709200606 | Bleeding Hose |
| 337 | 219704547 | Hose 6,35 Mm Id 4000Mm Long This part replaces 709201098. |
| 338 | 293650047 | Crimp Clamp, 15.3-706R |
| 339 | 293710059 | Y-Fitting |
| 340a | 219704408 | Tubing 16 Mm 1000Mm Long |
| 350a | 293830193 | Polyurethane Hose |
| 360 | 414554800 | Spring Clamp |
| 370 | 715008383 | Radiator Deflector Kit |
| 375 | 293150230 | Tuflok Plastic Rivet |
| 600 | 509001200 | Y Fitting |
| 610 | 509001313 | T-Fitting |
| 615 | 509001313 | T-Fitting |
| 625 | 709201434 | Formed Thermostat Hose IN This part replaces 709201031. |
| 630 | 709201444 | Formed Radiator Hose OUT This part replaces 709200977. |
| 632 | 709201437 | Formed Radiator Hose OUT This part replaces 709200974. |
| 635 | 709200972 | Hose |
| 650 | 709200658 | Heater Tubing |
| 655 | 509000162 | Gear Clamp |
| 670 | 709200976 | Hose |
| 675 | 709200975 | Hose |
| 745 | 509000162 | Gear Clamp |
| 805 | 207662544 | Hex. Flange Screw M6 X 25 |
| 810 | 207662544 | Hex. Flange Screw M6 X 25 |
| 815 | 234062410 | Flat Washer 6 mm |
| 820 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 850 | 293650165 | Oetiker Gear Clamp |
| 900a | 515176260 | Tubing 35 mm |
| 905a | 515176260 | Tubing 35 mm |
| 910 | 219704428 | Tubing 35 MM 1000MM Long |
| 915a | 515176260 | Tubing 35 mm |
| 920a | 515176260 | Tubing 35 mm |
| 930a | 515176260 | Tubing 35 mm |
| 1500 | 709201036 | Front Air Deflector |
