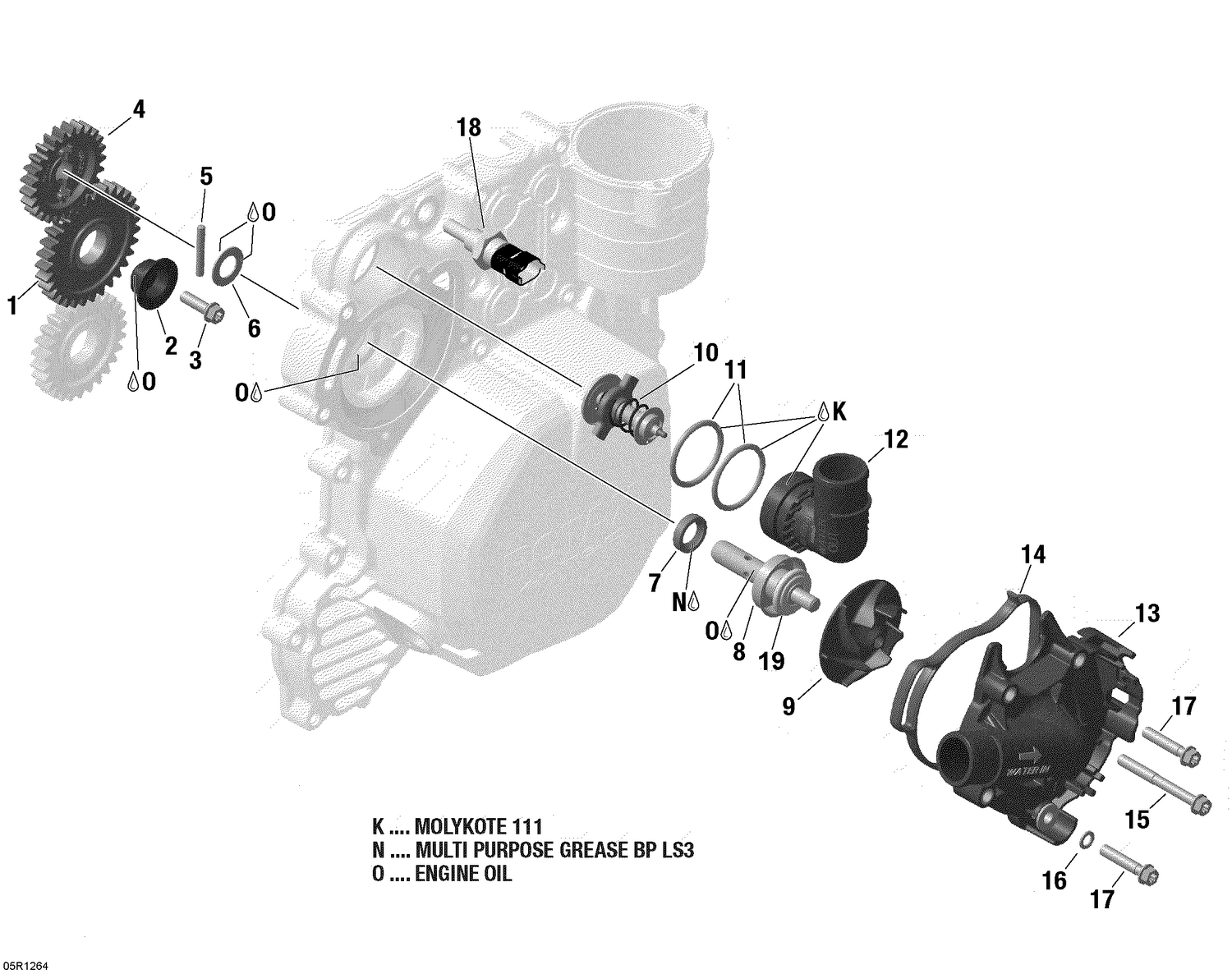

| Ref | Part Number | Description |
|---|
| K |
Not |
Available As Spare Part - MOLYKOTE 111 |
| N |
Not |
Available As Spare Part - MULTIPURPOSE GREASE BP LS3 |
| 1 |
420835067 |
Idle Gear, 31 Teeth This part replaces 420835059. |
| 2 |
420947396 |
Graduated Spacer This part replaces 420947390. |
| 4 |
420835230 |
WATERPUMP GEAR 25T |
| 5 |
420232431 |
Needle Pin This part replaces 420232430. |
| 6 |
420827261 |
Thrust Washer 12,5/21,5/1 |
| 8 |
420820150 |
WATERPUMP SHAFT |
| 10 |
420822655 |
Thermostat This part replaces 420822650. |
| 12 |
420922150 |
THERMOSTAT COVER |
| 19 |
420850946 |
SEAL |
