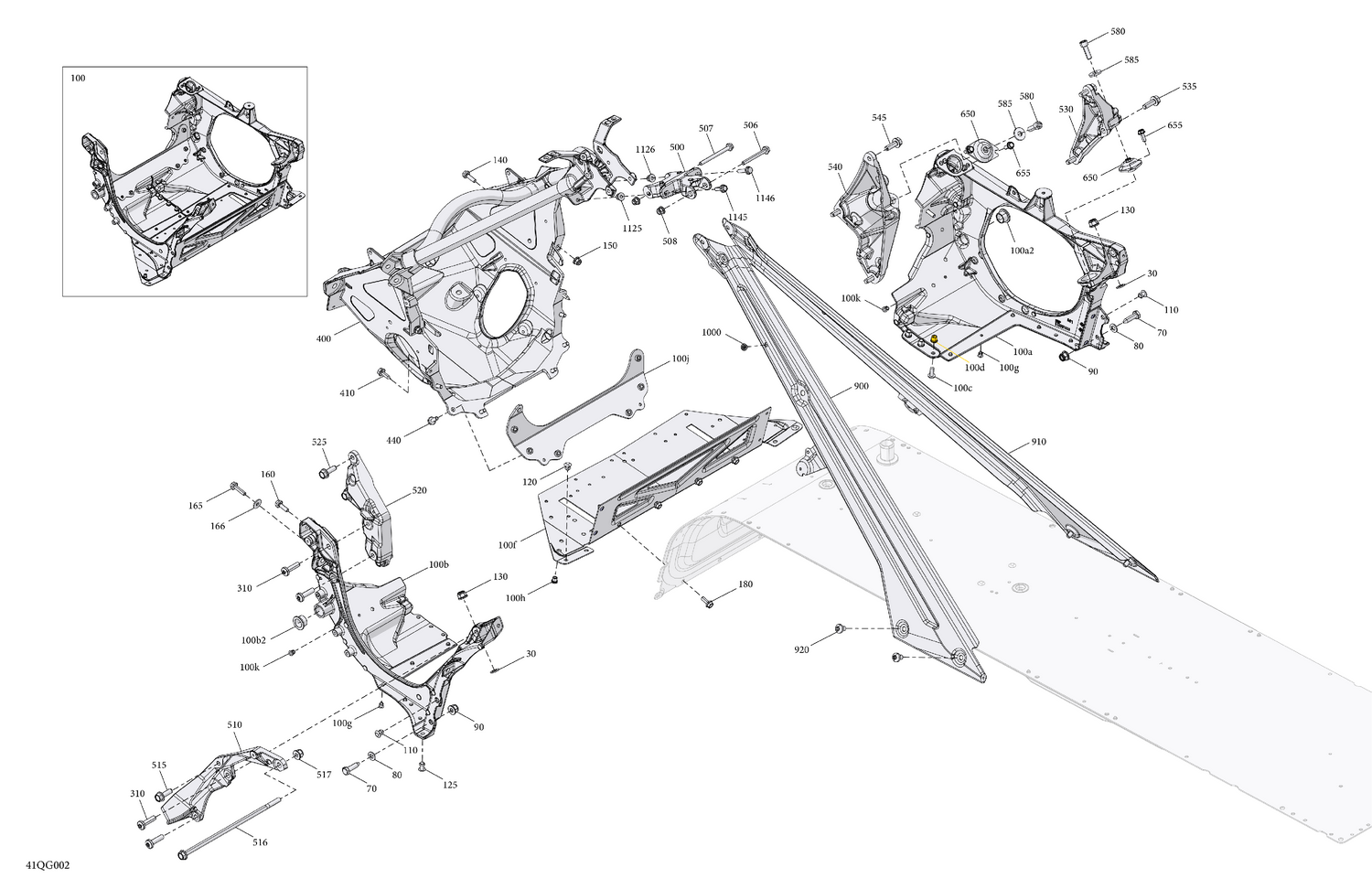

| Ref | Part Number | Description |
|---|
| 30 |
234081410 |
Flat Washer 8 mm |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a2 |
505073317 |
Leg Cushion |
| 100b2 |
505073317 |
Leg Cushion |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332716 |
Bottom Plate |
| 100g |
293150312 |
Rivet Ornit 4,8 X 11,3 |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j |
518334240 |
Front Cross Member |
| 100k |
293150314 |
Rivet Ornit 4,8 X 14,3 |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 120 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 160 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 165 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 166 |
250200164 |
Flat washer M6 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 400 |
518334552 |
Chassis Suspension Module Ass'y |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 440 |
207661636 |
Hex. Flange Screw M6 X 16 |
| 500 |
518335512 |
Upper Battery Support |
| 506 |
207665544 |
Hex Flange Screw M6 X 55 |
| 507 |
207667044 |
Hex Flange Screw M6 x 65 |
| 508 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 510 |
518335514 |
LH Rear Battery Support |
| 515 |
250000376 |
Hex Forming Screw DIN.7500D |
| 516 |
518335077 |
Hex Flange Screw M8 X 235MM |
| 517 |
233281416 |
Hex. Elastic Flanged Nut M8 |
| 520 |
518335516 |
LH Front Battery Support |
| 525 |
250000376 |
Hex Forming Screw DIN.7500D |
| 530 |
518335518 |
RH Rear Battery Support |
| 535 |
250000376 |
Hex Forming Screw DIN.7500D |
| 540 |
518335520 |
RH Front Battery Support |
| 545 |
250000376 |
Hex Forming Screw DIN.7500D |
| 580 |
205082544 |
Socket Screw M6 X 20, Scotch Grip |
| 585 |
503183200 |
Yellow, Washer |
| 650 |
518334264 |
Anchorage |
| 655 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 900 |
518337020 |
Viper Red, LH Rear Diagonal Cross Member |
| 910 |
518337025 |
Viper Red, RH Rear Diagonal Cross Member |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1000 |
293450267 |
Insert M5 - 0.8 |
| 1125 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1126 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1145 |
207662046 |
Hex. Flange Screw M6 X 20 |
