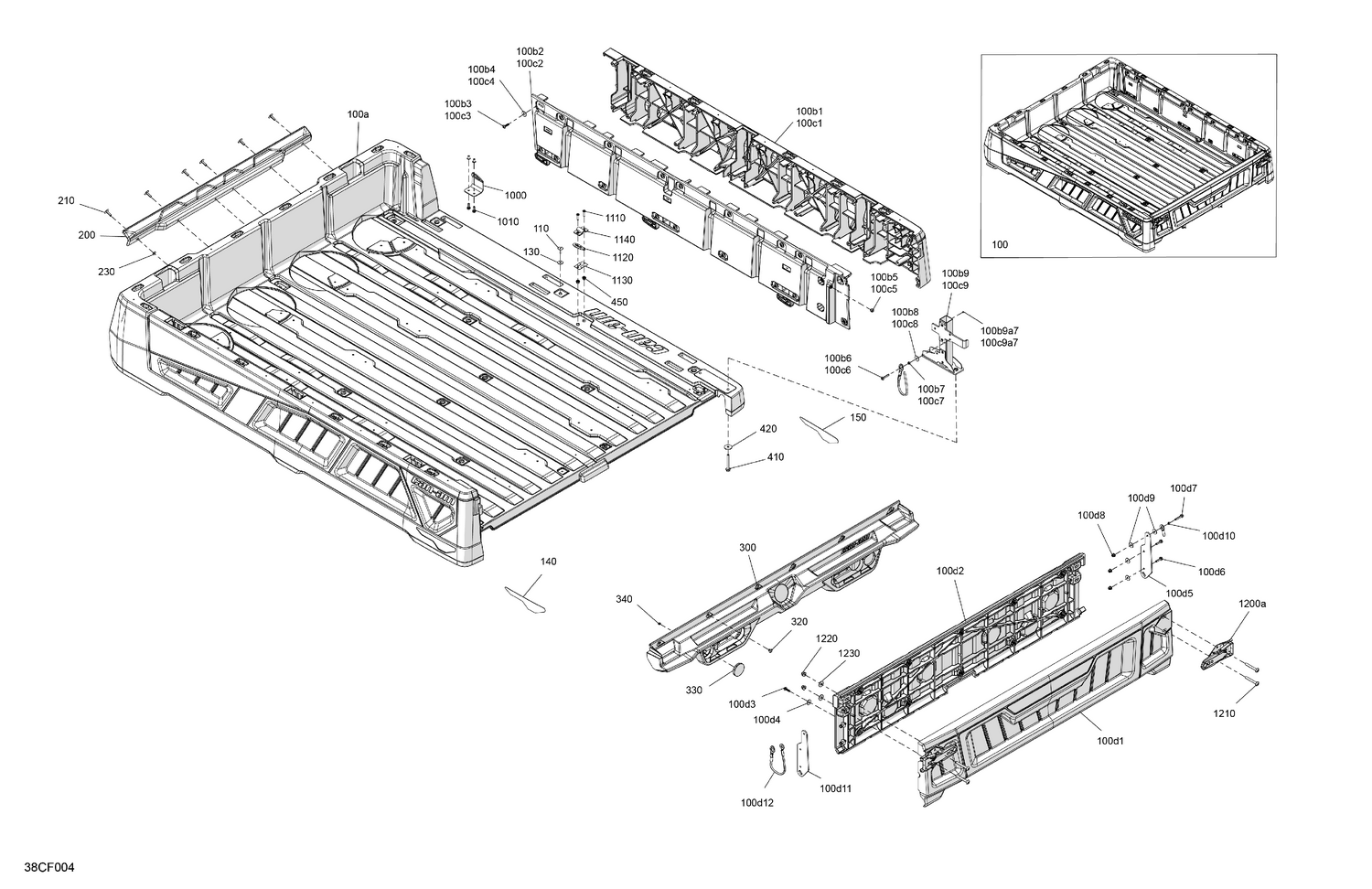

07- Body - Cargo - Upper Section
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 715011245 | Open Carrier Int Ass'y |
| 100a | 715007479 | Cargo Box Inside Ass'y |
| 100b1 | 708303499 | LH Cargo Panel |
| 100b2 | 708303499 | LH Cargo Panel |
| 100b3 | 250000980 | Hex. Screw Pt K60 X 25 |
| 100b4 | 250200162 | Flat Washer M6.6 X 22 |
| 100b5 | 293830005 | Rubber Bumper |
| 100b6 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 100b7 | 293900101 | Bushing |
| 100b8 | 250200162 | Flat Washer M6.6 X 22 |
| 100b9a7 | 390402000 | Pop Rivet 3/16" |
| 100c1 | 708303500 | RH Cargo Panel |
| 100c2 | 708303500 | RH Cargo Panel |
| 100c3 | 250000980 | Hex. Screw Pt K60 X 25 |
| 100c4 | 250200162 | Flat Washer M6.6 X 22 |
| 100c5 | 293830005 | Rubber Bumper |
| 100c6 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 100c7 | 293900101 | Bushing |
| 100c8 | 250200162 | Flat Washer M6.6 X 22 |
| 100c9a7 | 390402000 | Pop Rivet 3/16" |
| 100d1 | 708303501 | Tailgate Ass'y |
| 100d10 | 293900101 | Bushing |
| 100d11 | 708304598 | RH Tailgate Support |
| 100d12 | 708302893 | Cable Retaining |
| 100d2 | 708303501 | Tailgate Ass'y |
| 100d3 | 250000980 | Hex. Screw Pt K60 X 25 |
| 100d4 | 250200162 | Flat Washer M6.6 X 22 |
| 100d5 | 708304597 | LH Tailgate Support |
| 100d6 | 207662554 | Hex. Flange Screw M6 X 25 |
| 100d7 | 207663554 | Hex. Flange Screw M6 X 35 |
| 100d8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100d9 | 250200162 | Flat Washer M6.6 X 22 |
| 110 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 130 | 250200162 | Flat Washer M6.6 X 22 |
| 140 | 708303264 | LH Rear Reflector |
| 150 | 708303265 | RH Rear Reflector |
| 200 | 708303216 | Deflector |
| 210 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 230 | 517124300 | Washer |
| 300 | 708303496 | Taillight Support |
| 320 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 330 | 705016982 | Red, Reflector |
| 340 | 232551414 | Elastic Stop Nut M5 |
| 410 | 207587044 | Hex. Flange Screw M8 X 70 |
| 420 | 250200187 | Flat Washer M8 |
| 450 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1000 | 708301480 | Retaining Plate |
| 1010 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1110 | 250001107 | Torx Flat Head Screw T-30 S.Grip M6X25 |
| 1120 | 708302990 | D-Ring |
| 1130 | 708302991 | Tie-Down Ring Spring |
| 1140 | 708302992 | Tie-Down Ring Bracket |
| 1200a | 708304828 | Tailgate Latch Ass'y |
| 1210 | 250000901 | Torx Truss M8 X 65 |
| 1220 | 233281464 | Elastic Flange Nut M8 |
