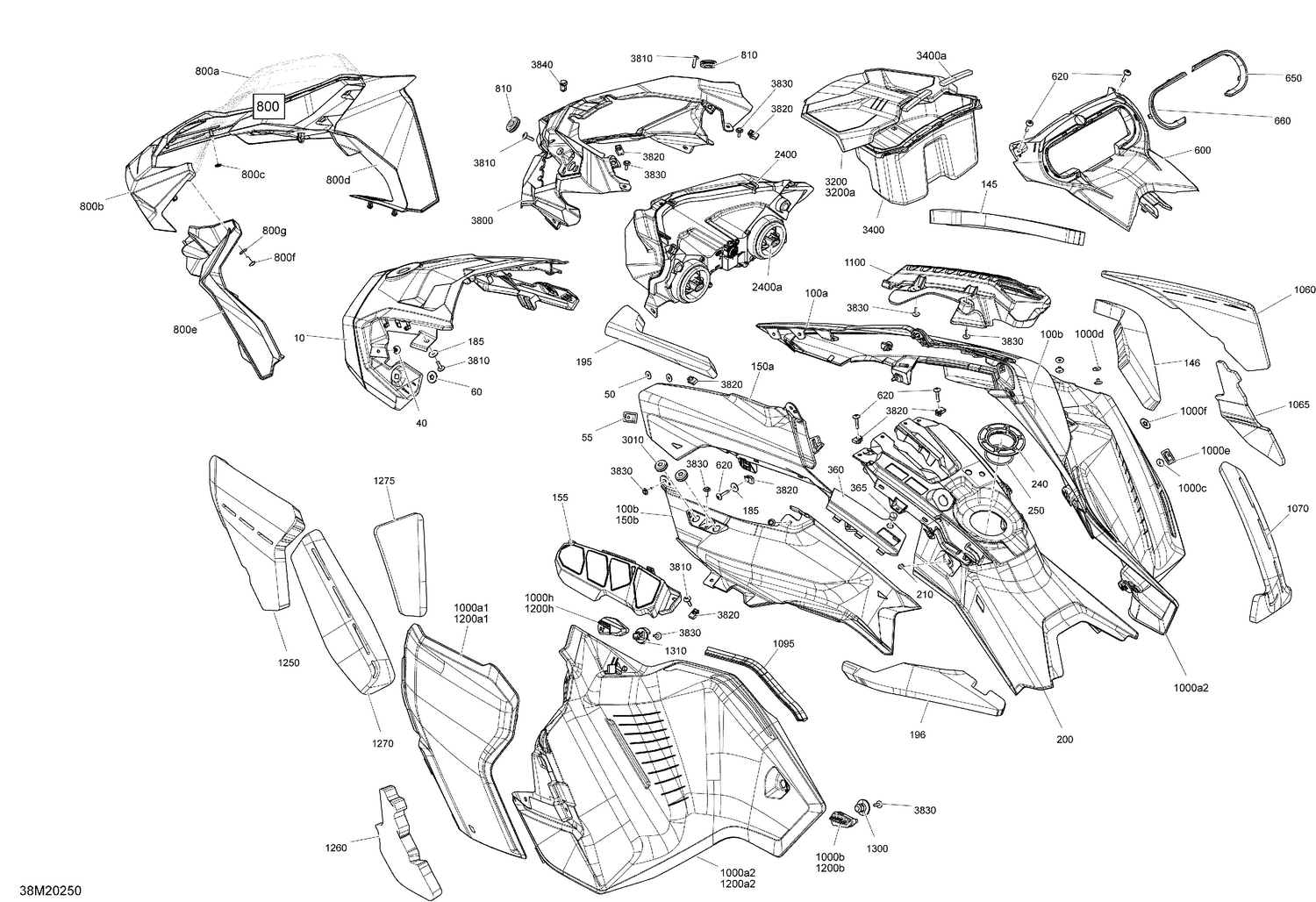

09- Body - Hood Section - Enduro - Can-Am Red
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306288 | Deep Black, Center Hood |
| 40 | 293150104 | Pop Rivet 3/16" |
| 50 | 517124300 | Washer |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 100a | 517306777 | RH Front Hood |
| 100b | 517306778 | RH Rear Hood |
| 145 | 517305763 | RH Front Hood Foam |
| 146 | 517306001 | RH Hood Foam |
| 150a | 517306780 | LH Front Hood |
| 150b | 517306781 | LH Rear Hood |
| 155 | 517306690 | LH Hood Trim |
| 185 | 250200166 | Washer |
| 195 | 517305764 | LH Front Hood Foam |
| 196 | 517306002 | LH Hood Foam |
| 200 | 517306830 | Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 240 | 517306602 | Console Nut |
| 250 | 706002839 | O-Ring |
| 360 | 517306583 | LH Front Console |
| 365 | 572051500 | Cap |
| 600 | 517306289 | Gauge Support |
| 620 | 250000587 | Torx Screw M5 X 26 |
| 650 | 705012351 | Deep Black, RH Trim Gauge |
| 660 | 705012349 | Deep Black, LH Trim Gauge |
| 800 | 860201258 | Medium Windshield Kit |
| 800a | 517306062 | Windshield |
| 800b | 517306183 | Deep Black, Windshield Support |
| 800c | 732610072 | Push Nut |
| 800d | 517306063 | Deflector RH, Black 63% Light Transm. |
| 800e | 517306064 | Deflector LH, Black 63% Light Transm. |
| 800f | 250000889 | Screw M4 X 16 |
| 800g | 517306524 | Rubber Washer 4 MM |
| 810 | 517303756 | Grommet |
| 1000a1 | 517306785 | RH Front Panel |
| 1000a2 | 517306671 | RH Rear Panel |
| 1000b | 517305773 | RH Rear Latch |
| 1000c | 293150104 | Pop Rivet 3/16" |
| 1000d | 517124300 | Washer |
| 1000e | 517305109 | Rivet Plate |
| 1000f | 508000853 | Push Nut |
| 1000h | 517305979 | RH Front Latch |
| 1060 | 517306461 | Foam |
| 1065 | 517306495 | Foam |
| 1070 | 517306845 | RH Rear Panel Foam |
| 1095 | 219704371 | Neoprene Seal 3000 mm Long |
| 1100 | 517308292 | RH Hood Grille Ass'y This part replaces 517307049. |
| 1200a1 | 517306787 | LH Front Panel |
| 1200a2 | 517308780 | Deep Black, LH Rear Panel This part replaces 517306296. |
| 1200b | 517305774 | LH Rear Latch |
| 1200h | 517305980 | LH Front Latch |
| 1250 | 517306463 | Foam |
| 1260 | 517306464 | Foam |
| 1270 | 517306465 | Foam |
| 1275 | 517306496 | LH Rear Panel Foam |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 2400a | 415130081 | Bulb |
| 3010 | 517307161 | Grommet This part replaces 517302841. |
| 3200a | 732610072 | Push Nut |
| 3400a | 517305157 | Seal Joint |
| 3800 | 517306301 | Headlamp Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
| 3830 | 250000725 | Screw M4 X 16 |
