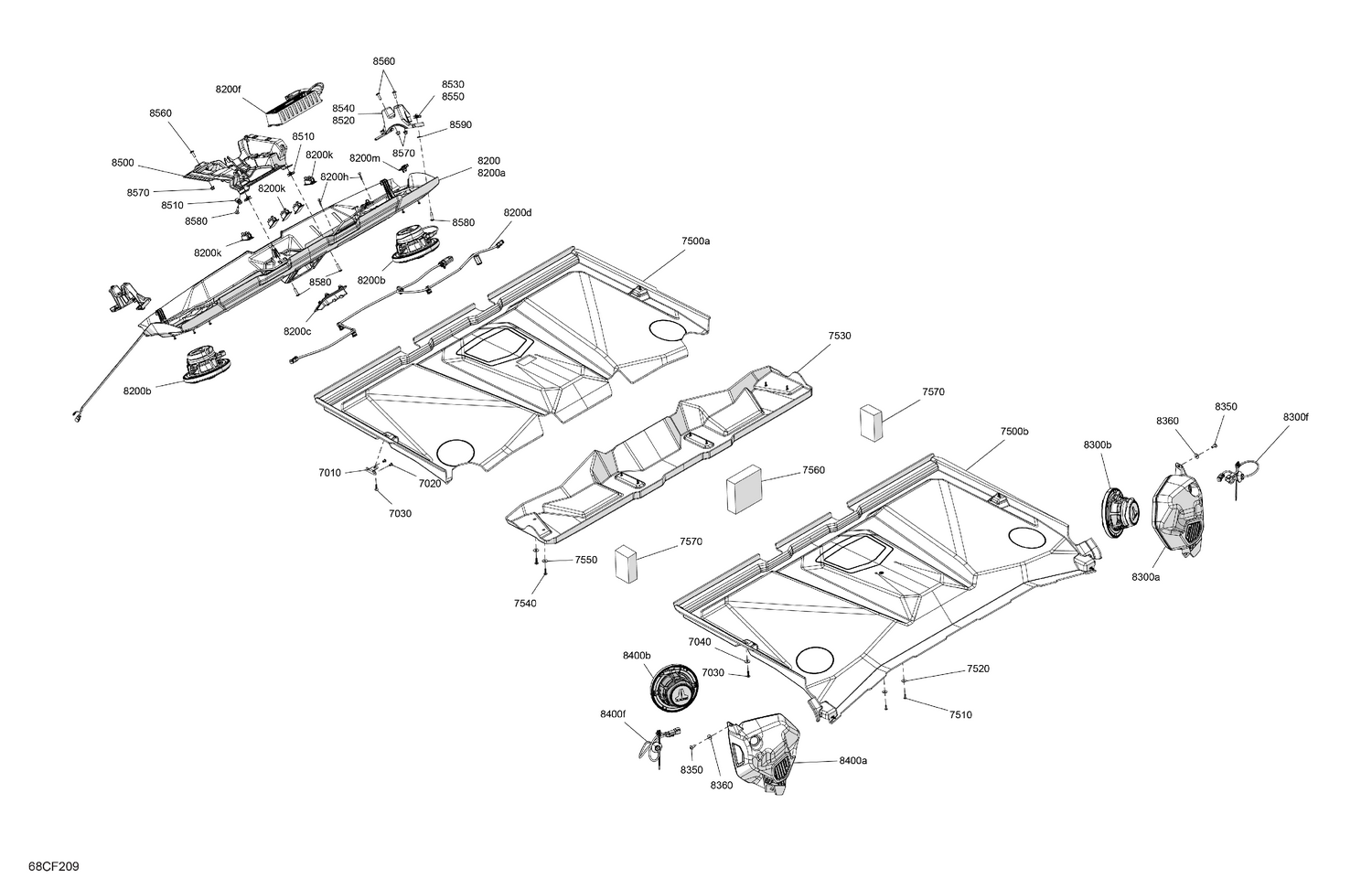

07- Enclosure Cab - Roof Liner
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 7010 | 705801102 | Roof Support |
| 7020 | 293150300 | Black, Pop Rivet 3/16 X ,425 |
| 7030 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 7040 | 234062670 | Stainless Steel Flat Washer |
| 7500a | 705801586 | Front Roof Liner |
| 7500b | 705801528 | Rear Roof Liner |
| 7510 | 250000759 | Torx Truss Pt K40 X 16 |
| 7520 | 250200025 | Washer M5 |
| 7530 | 705800132 | Roof Liner Support |
| 7540 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 7550 | 234062670 | Stainless Steel Flat Washer |
| 7560 | 705800221 | Roof Liner Spacer |
| 7570 | 705800255 | Roof Liner Spacer |
| 8200 | 715011316 | Roof Trim |
| 8200a | 710009337 | Front Molded Speaker Enclosure |
| 8200b | 710010582 | Mid Range Loudspeaker Ass'y |
| 8200c | 710009303 | Switch Trim |
| 8200d | 710010300 | Speaker Amplifier Wiring Harness |
| 8200f | 710011372 | Audio Amplifier Mx280/4 |
| 8200h | 250000735 | Torx Screw K40 X 16 |
| 8200k | 710007173 | Plug Carling |
| 8200m | 710006744 | Deutsch Connector Support |
| 8300a | 710009662 | RH Rear Speaker Enclosure Ass'y |
| 8300b | 710010582 | Mid Range Loudspeaker Ass'y |
| 8300f | 710010630 | Interior Speaker Wiring Harness |
| 8350 | 250000717 | Torx Head Screw M6 X 16 |
| 8360 | 234062670 | Stainless Steel Flat Washer |
| 8400a | 710010125 | LH Rear Speaker Enclosure Ass'y |
| 8400b | 710010582 | Mid Range Loudspeaker Ass'y |
| 8400f | 710010630 | Interior Speaker Wiring Harness |
| 8500 | 705801183 | Central Molded Support |
| 8510 | 250100198 | Panel Nut M6 X 1.0 |
| 8520 | 705801181 | LH Upper Molded Support |
| 8530 | 250100198 | Panel Nut M6 X 1.0 |
| 8540 | 705801182 | RH Upper Molded Support |
| 8550 | 250100198 | Panel Nut M6 X 1.0 |
| 8560 | 250000722 | Torx Screw M6 X 20 |
| 8570 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8580 | 250000807 | Torx Truss Screw M6 X 25 |
