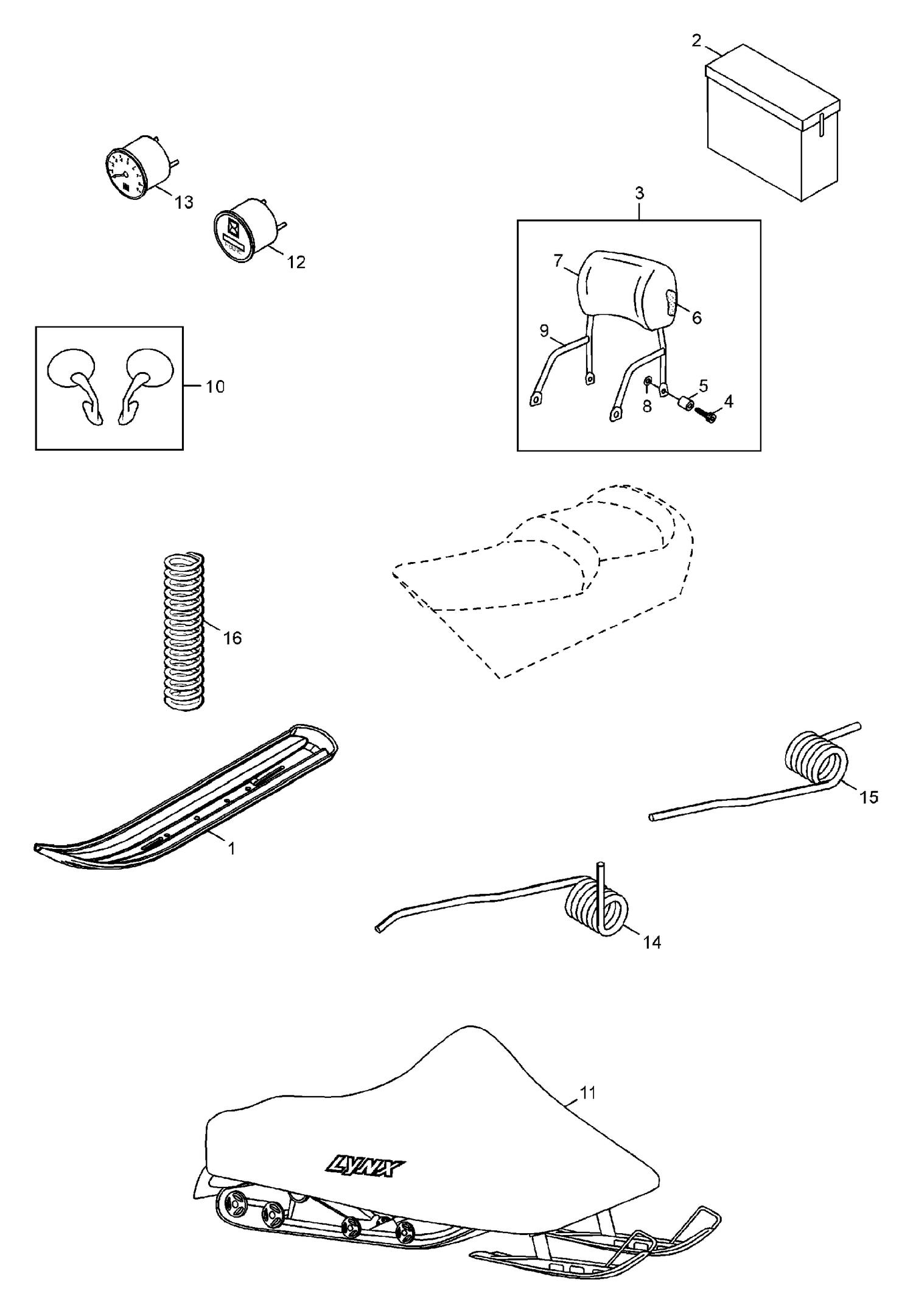

| Ref | Part Number | Description |
|---|
| 1 |
5144415 |
Skiliner, wide |
| 2 |
7820085 |
Goods box |
| 3 |
5342097 |
Seat back kit (pos.4-9) |
| 4 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 5 |
5440665 |
SPACER - Call your local BRP dealership |
| 6 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 7 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 8 |
20060 |
Washer |
| 9 |
5342100 |
Backrest welded |
| 10 |
211216501 |
Mirror assy |
| 11 |
7820062 |
Cover |
| 12 |
5343943 |
Kit meter hour assy |
| 13 |
538164 |
Tachometer assy |
| 14 |
529895 |
Spring L.H. d=10 |
| 14 |
529896 |
Spring R.H. d=10 |
| 14 |
538797 |
Spring L.H. d=9 |
| 14 |
538798 |
SPRING-RH - Call your local BRP dealership |
| 15 |
5342228 |
Spring R.H. d=11 |
| 15 |
5342229 |
Spring L.H. d=11 |
| 16 |
414803000 |
Spring, 11,4 N/mm |
| 16 |
5240895 |
Spring, 18 N/mm |
