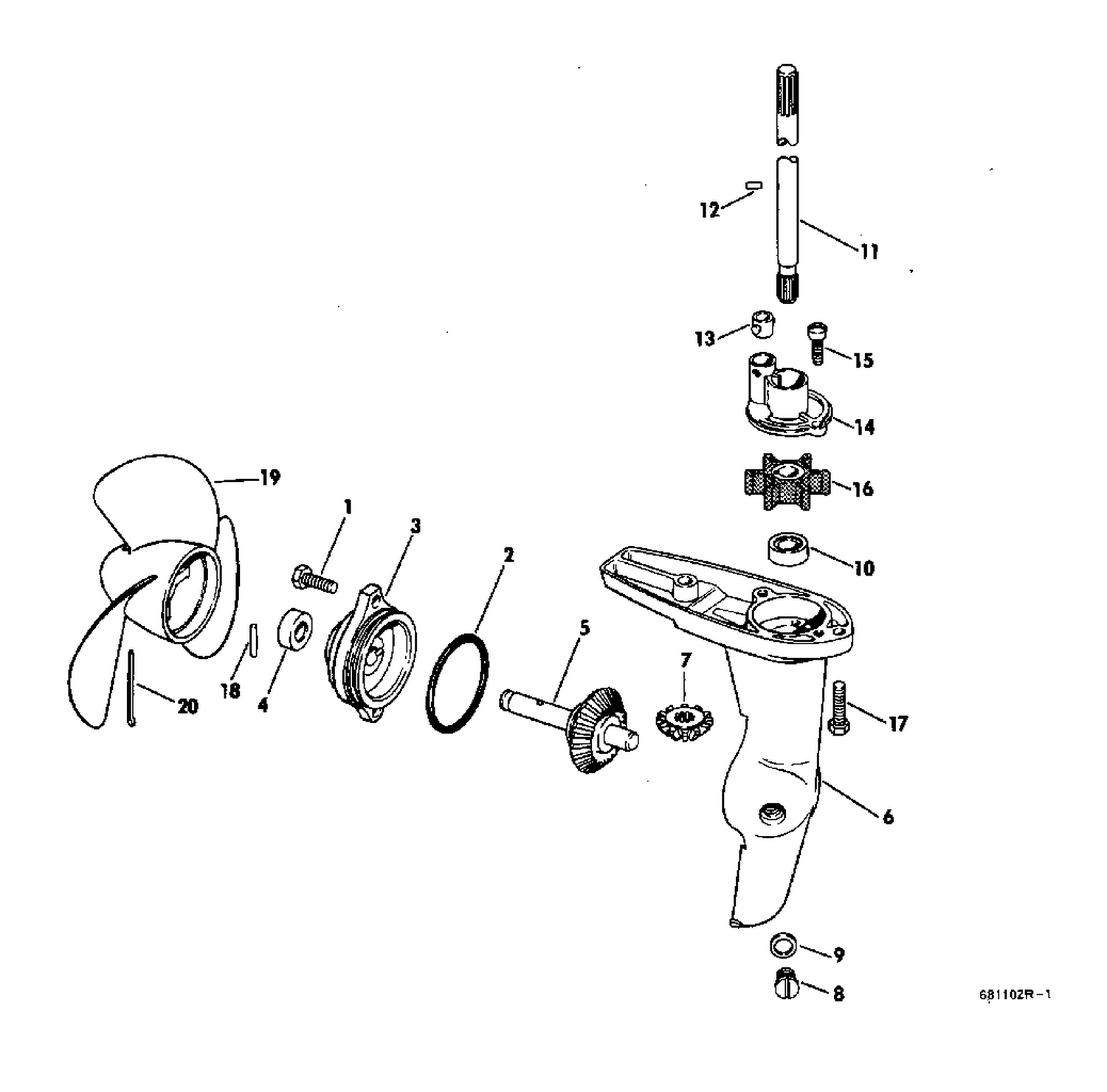

| Ref | Part Number | Description |
|---|
| 1 |
0300646 |
VIS, ancrage |
| 3 |
0383341 |
EARCASE HEAD AND BUSHING ASSEMBLY |
| 5 |
0382222 |
PROF. SHAFT & GEAR ASSY. |
| 6 |
0389066 |
GEARCASE & BUSH. ASSY. This part replaces 0382304. |
| 7 |
0313608 |
PINION, Driveshaft |
| 11 |
0313382 |
DRIVEHSAFT, std. |
| 13 |
0317372 |
GROMMET, Wate tube, lower This part replaces 0203131. |
| 14 |
0313678 |
COVER, Water pump |
| 16 |
0382221 |
IMPELLER ASSEMBLY,Water pump |
| 17 |
0313332 |
SCERW, Adj. bracket |
| 18 |
0203230 |
DRIVE PIN |
| 19 |
0125990 |
PROPELLER, 7 1/4 * 4, plastic (STD) This part replaces 0313689. |
| 3001 |
515178435 |
Diagnostic Cap |
| 3005 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 3600 |
515178248 |
Ground Wire |
| 3605 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3607 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 |
250000911 |
Hex. Flange Screw M5 X 16 |
| 4320 |
515178891 |
Ultracapacitor Module |
| 4321 |
233151414 |
Nut Flange Hex. M5 |
| 0383001 |
0389037 |
GEARCASE ASSY., Complete This part replaces 0383001. |
