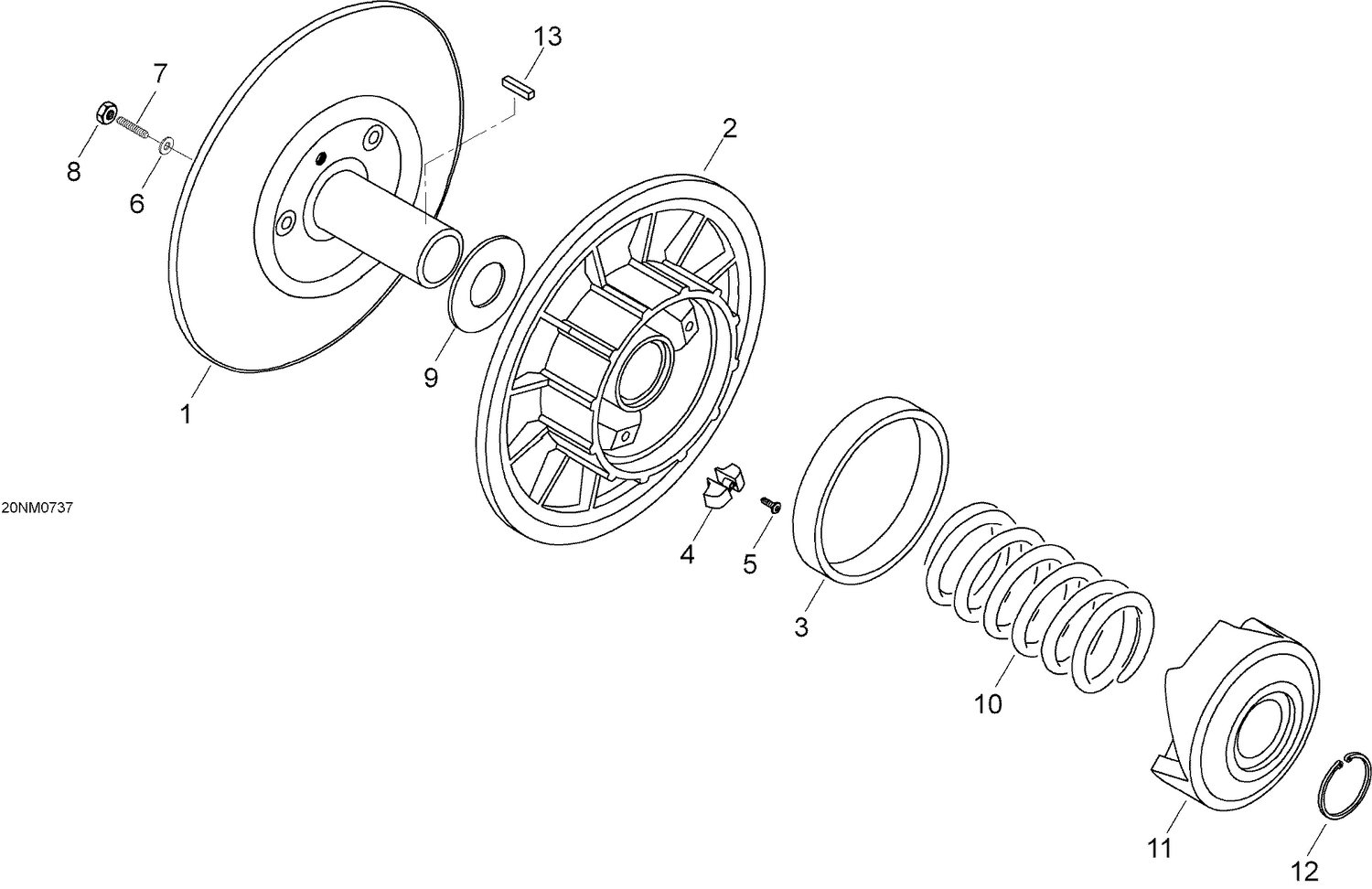

05- Driven Pulley
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140065 | Fixed flange |
| 3 | 140005 | Bushing |
| 4 | 140068 | Shoe cam slider |
| 5 | 619100006 | HEX. SCREW SET - Call your local BRP dealership |
| 6 | 420245370 | WASHER - Call your local BRP dealership |
| 7 | 619100003 | Hex. socket set screw - Call your local BRP dealership |
| 8 | 232061414 | Nut |
| 9 | 504099600 | STOPPER WASHER - Call your local BRP dealership |
| 10 | 140056 | Release spring |
| 11 | 140067 | Cam 40/30 degr. |
| 12 | 371903100 | CIRCLIP - Call your local BRP dealership |
