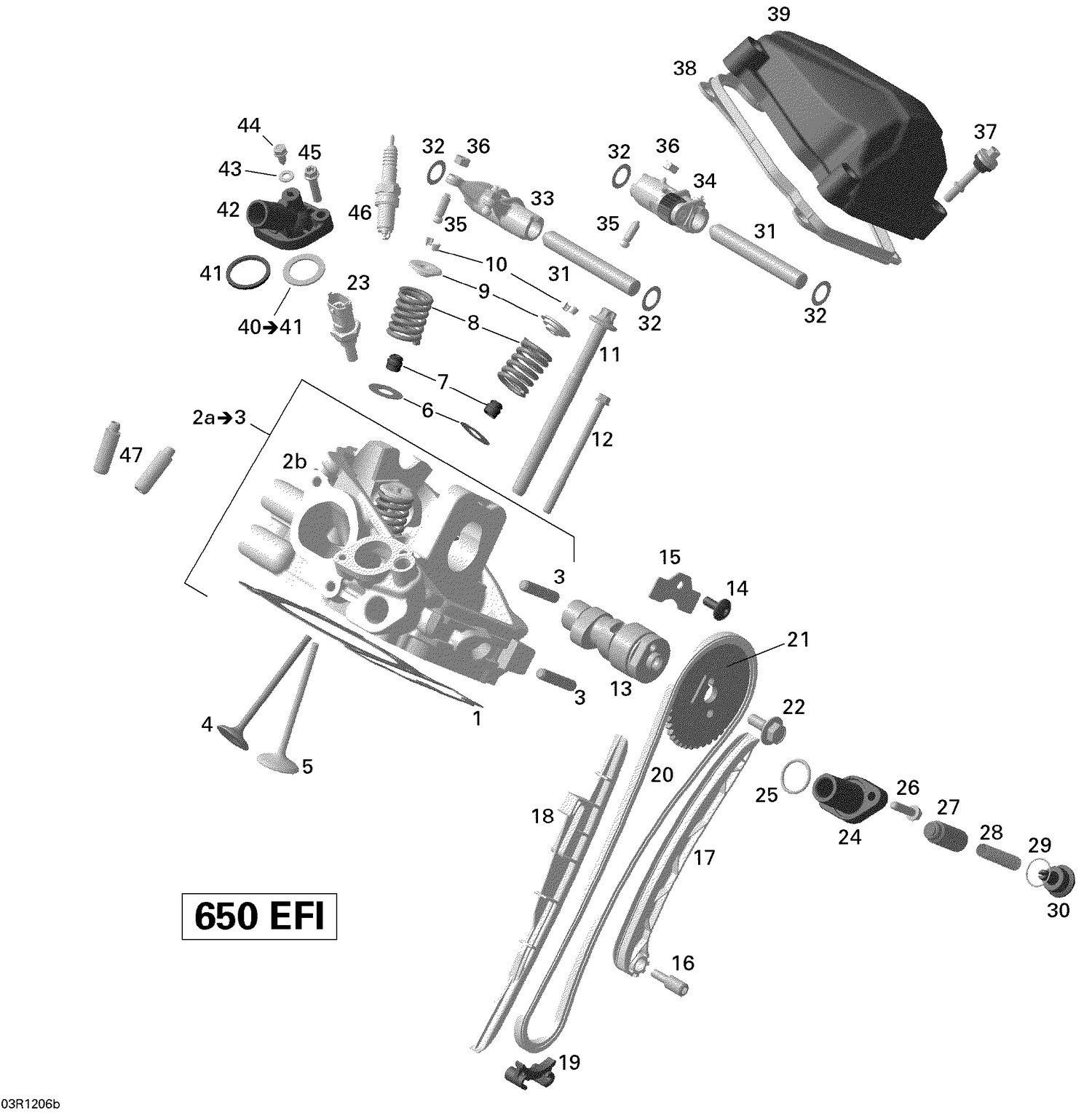

| Ref | Part Number | Description |
|---|
| 1 |
420630850 |
Cylinder Head Gasket |
| 2b |
Not |
Available As Spare Part - Cylinder Head |
| 3 |
420941014 |
Stud M8 x 26 |
| 4 |
420254359 |
Intake Valve 31MM This part replaces 420254351. |
| 5 |
420253171 |
Exhaust Valve, 27 Mm This part replaces 420254361. |
| 6 |
420627525 |
Thrust Washer This part replaces 420627770. |
| 7 |
420230515 |
Valve Stem Seal |
| 8 |
420239295 |
Valve Spring |
| 9 |
420254132 |
Valve Spring Retainer |
| 10 |
420254120 |
Cotter Valve |
| 11 |
420641551 |
Torx Screw M10X140 This part replaces 420641550. |
| 12 |
420641228 |
Torx Flange Screw M6 X 85 |
| 13 |
420620016 |
Camshaft |
| 14 |
420241522 |
Torx Screw M6 X 16 This part replaces 420241525. |
| 15 |
420627743 |
Holding Strip |
| 16 |
420240943 |
Bearing Screw M6 This part replaces 420240941. |
| 17 |
420436015 |
Chain Tension Guide |
| 18 |
420236584 |
Chain Guide This part replaces 420236581. |
| 19 |
420236351 |
Chain Guide This part replaces 420236350. |
| 20 |
420297063 |
Silent Chain This part replaces 420297062. |
| 21 |
420254434 |
Camshaft Sprocket This part replaces 420254433. |
| 22 |
420241721 |
Hex. Collar Screw M8 X 20 |
| 23 |
278002895 |
Temperature Sensor This part replaces 278001016. |
| 24 |
420236510 |
Chain Tensioner Housing |
| 25 |
420430373 |
O-Ring This part replaces 420430370. |
| 26 |
420641238 |
Torx Flange Screw M6 X 25 |
| 27 |
420236521 |
Chain Tensioner Plunger This part replaces 420236520. |
| 28 |
420238120 |
Spring |
| 29 |
420250890 |
O-Ring |
| 30 |
420641150 |
Plug Screw |
| 31 |
420229712 |
Pin #12, Small, M6 X 90 |
| 32 |
420944382 |
Shim |
| 33 |
420254907 |
Inlet Rocker Arm This part replaces 420254905. |
| 34 |
420254911 |
Exhaust Rocker Arm This part replaces 420254915. |
| 35 |
420241337 |
Adjustment Screw M6 X 0.75 This part replaces 420241335. |
| 36 |
420242913 |
Hex Nut M6 This part replaces 420242910. |
| 37 |
420440561 |
Allen Screw M6 x 30,5 This part replaces 420440560. |
| 38 |
420630260 |
Gasket |
| 39 |
420610393 |
Valve Cover This part replaces 420610395. |
| 41 |
420650300 |
Thermostat Gasket |
| 42 |
420222696 |
Thermostat Cover This part replaces 420222690. |
| 43 |
420650255 |
Gasket Ring |
| 44 |
420441621 |
Screw M5 X 16 |
| 45 |
420641238 |
Torx Flange Screw M6 X 25 |
| 46 |
715900637 |
Spark Plug NGK DCPR8E This part replaces 707000246. |
